HC PL IRAPO 40x/1,10 W motCORR

Article Number 11506433
Correction Ring (CORR) motCORR
Coverglass With
Exit Pupil Position/DIC prism -
Field Number (FN) 25
Free Working Distance (WD in mm) 0.63
Immersion Water
Iris Diaphragm Without
Magnification 40⨉
Contrasting Methodes TL-BF, FLUO
Numerical Aperture 1.1
Objective Thread M25
Objective Type PLAN APO
Spring Loaded Yes
Suitable for AFC (Adaptive Focus Control) -
Techniques MotCorr, MP, Waterdispenser

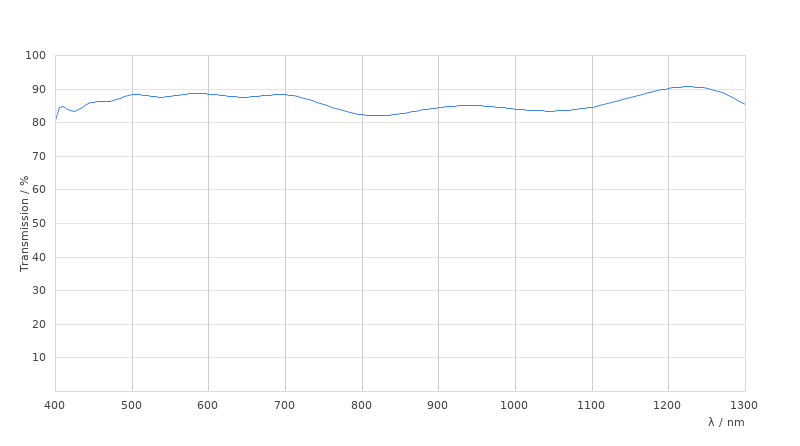

Transmission IR (up to 1300nm)

Figure

HC PL IRAPO 40x/1,10 W motCORR
