EM TIC 3X 이온 빔 밀링 시스템
Efficiency and flexibility
Rotary Stage
Rotary stage (retrofittable) has specially been designed for large area milling (flat milling). The ion beam prepared area is exceeding Ø 25 mm.
Download Brochure Rotary Stage

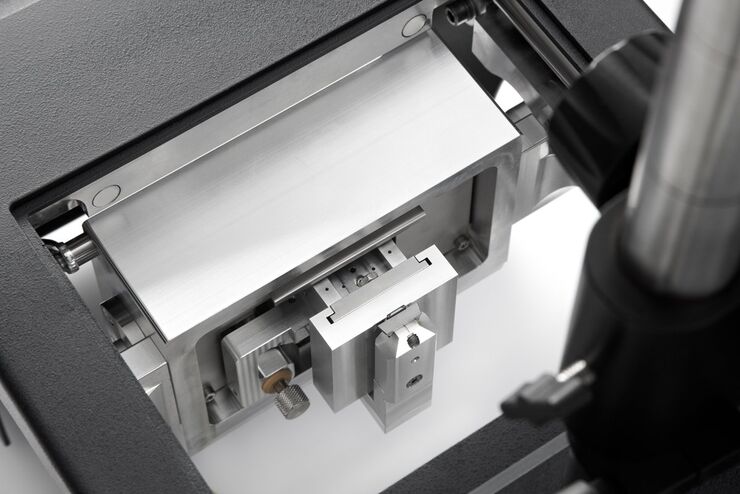

Standard Stage
Standard stage for routine applications and contrast enhancement of the prepared surface.

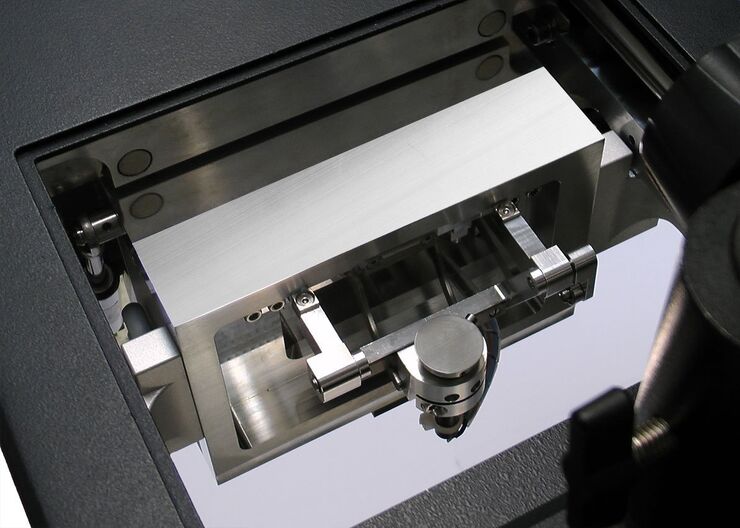

Multiple Sample Stage
Multiple sample stage is used if high throughput is desired. Three samples can be loaded and automatically processed in the Leica EM TIC 3X in one session (e.g. overnight) without any user interaction.

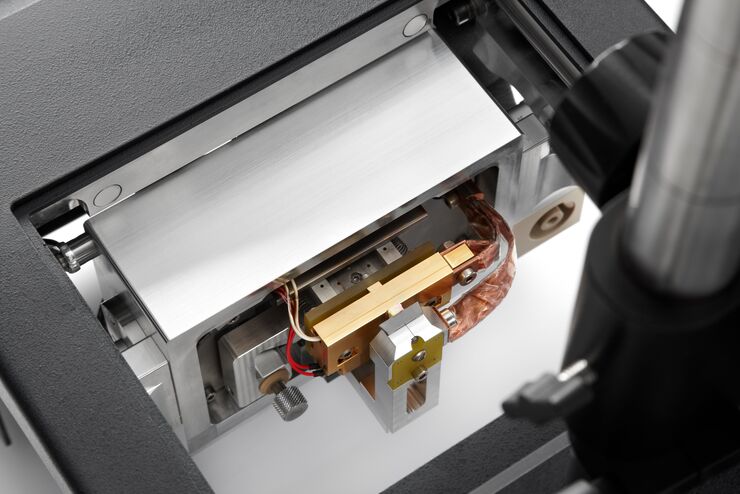

Cooling Stage
Cooling stage provides very low temperature processing. With temperatures of the sample holder and mask down to -160°C, extremely heat sensitive samples such as rubber, water soluble polymer fibers or even marshmallows (if desired) can be processed to a high quality.
Download Brochure Cooling Stage

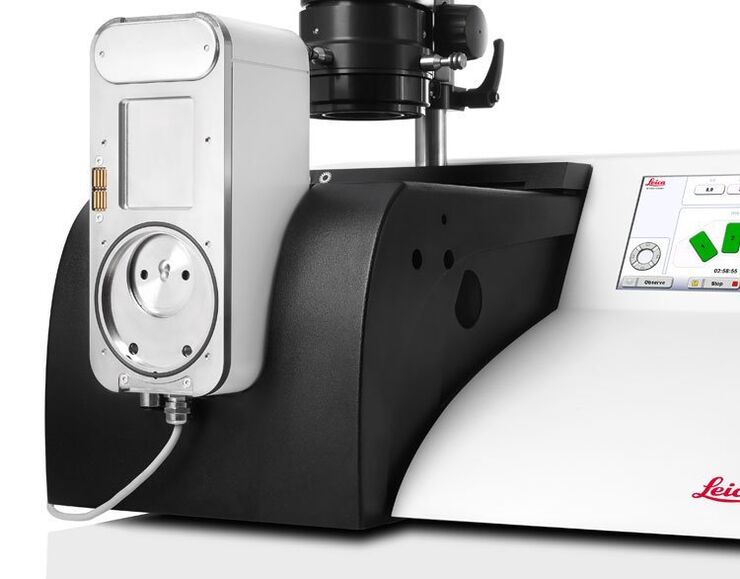

Vacuum transfer docking station
Perfect for surfacing environmentally sensitive samples which can be subsequently transferred to coating and/or SEM systems under inert gas/vacuum conditions

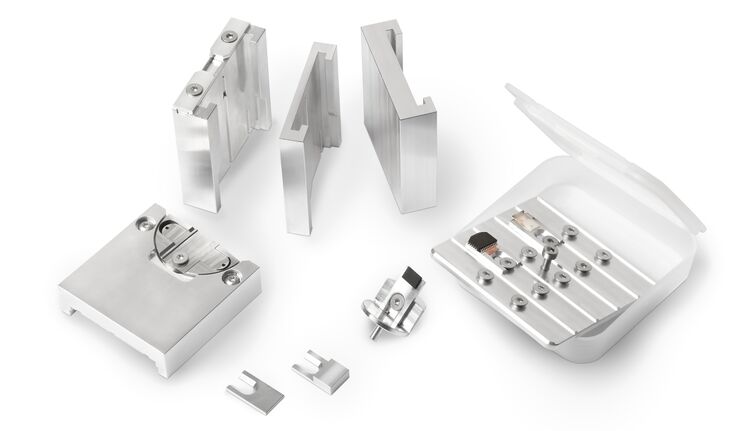

Various sample holders
Various sample holders for almost every sample size and a wide range of use are available e.g. one sample holder for the complete process from mechanical pre-preparation (Leica EM TXP) to ion beam slope cutting (Leica EM TIC 3X) to SEM investigation to the point of storage.

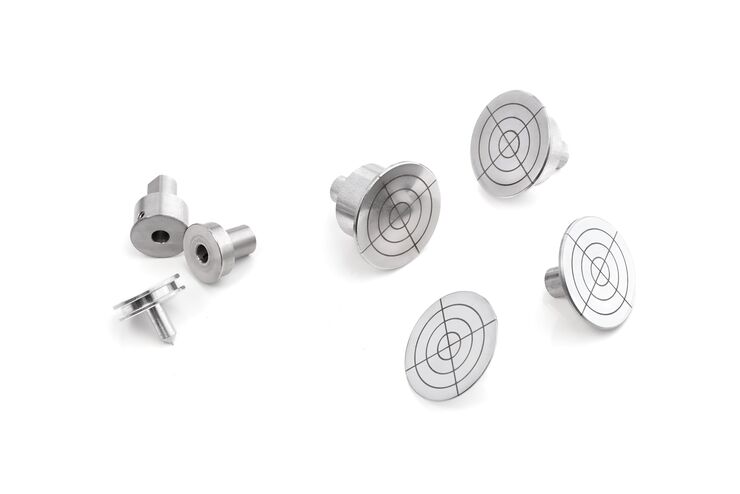

Sample holders for rotary stage
Sample holders for samples up to 12 mm height as well as adaptors for commercial available SEM stubs
Sample holders for high pressure frozen samples
Several holders are available for high pressure frozen samples.
Image left side - Cryo sample holder
Image right side - Cryo sample holder for samples up to 10 x 7 x 4 mm
Leica EM TIC 3X
Triple Ion-Beam Cutter
Rotary stage for Leica EM TIC 3X
Processing of a 25 mm Ø oil shale sample
