HC PL FLUOTAR 1,6x/0,05

Article Number 11506234
Correction Ring (CORR) -
Coverglass With & without
Exit Pupil Position/DIC prism -
Field Number (FN) 25
Free Working Distance (WD in mm) 03. Apr
Immersion Dry
Iris Diaphragm Without
Magnification 1.6⨉
Contrasting Methodes TL-BF, TL-P, FLUO
Numerical Aperture 0.05
Objective Thread M25
Objective Type PL FLUOTAR
Spring Loaded No
Suitable for AFC (Adaptive Focus Control) -
Techniques
Transmission UV (365nm)

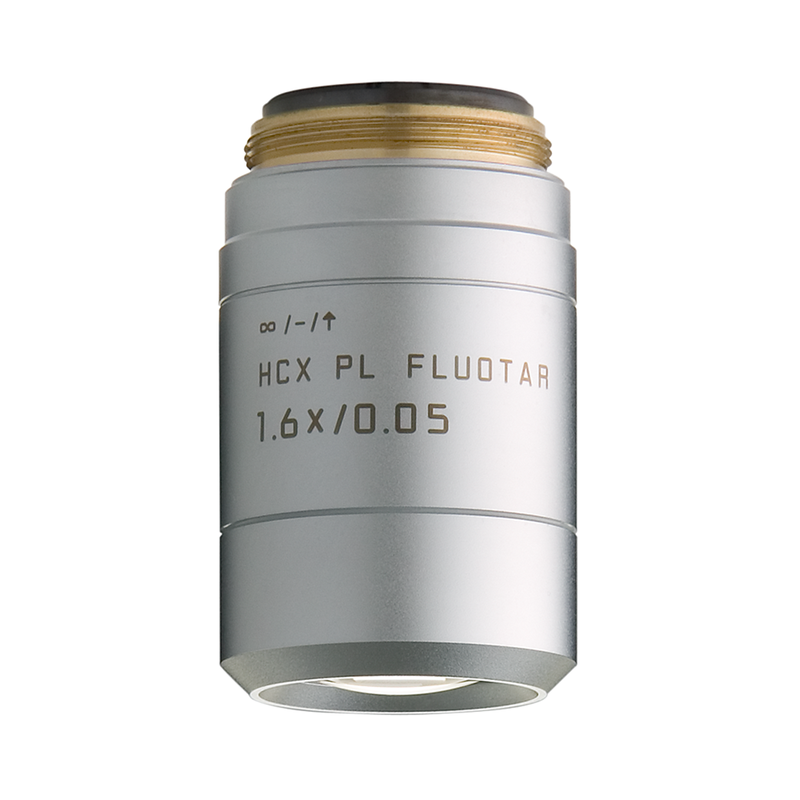

Figure

HC PL FLUOTAR 1,6x/0,05

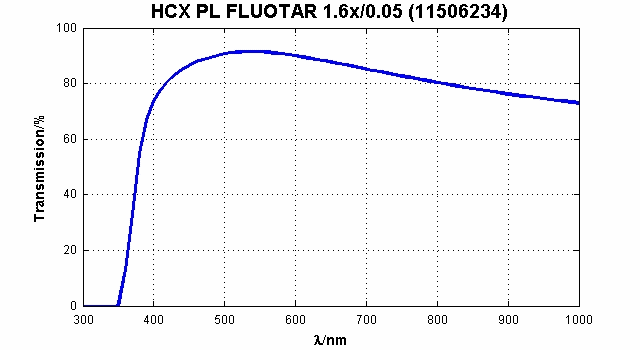

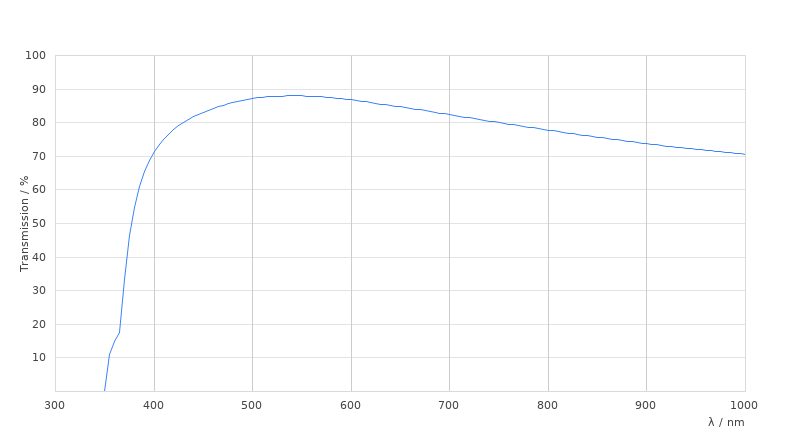

Transmission Curve

HC PL FLUOTAR 1,6x/0,05

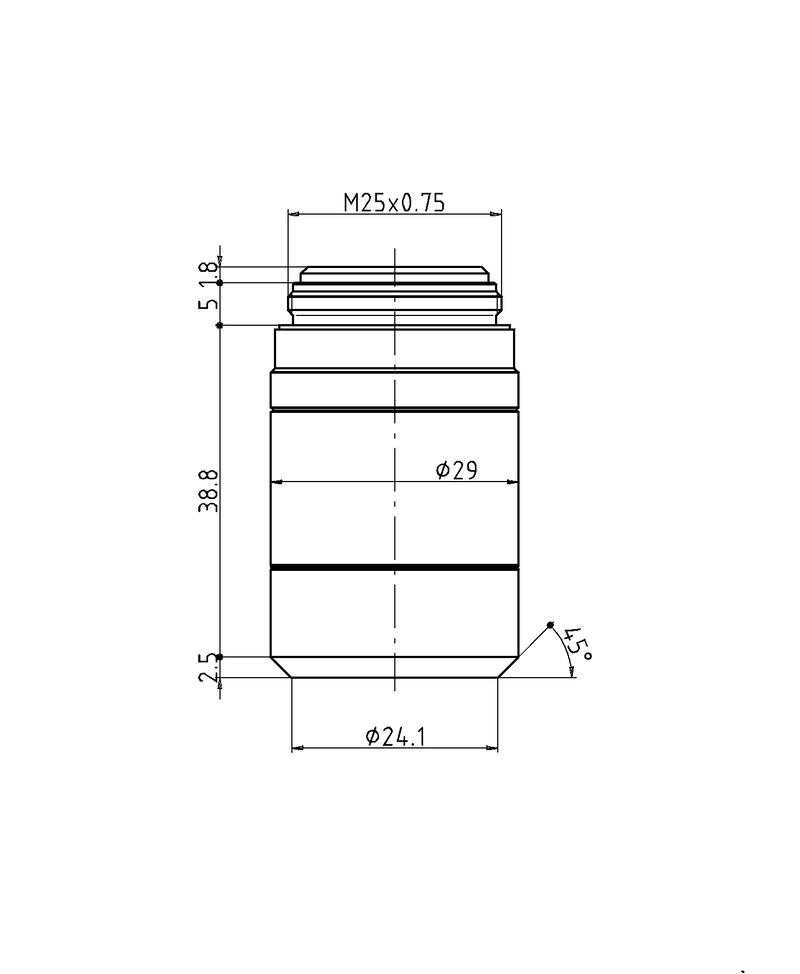

Dimension Sheet

HC PL FLUOTAR 1,6x/0,05
