HC PL FLUOTAR 5x/0,15 IMM DLS

Article Number 11506534
Correction Ring (CORR) -
Coverglass With & without
Exit Pupil Position/DIC prism -
Field Number (FN) 25
Free Working Distance (WD in mm) Apr 80
Immersion IMM incl BABB
Iris Diaphragm Without
Magnification 5⨉
Contrasting Methodes TL-BF, TL-P, FLUO
Numerical Aperture 0.15
Objective Thread M25
Objective Type PL FLUOTAR
Spring Loaded No
Suitable for AFC (Adaptive Focus Control) -
Techniques LightSheet
Transmission UV (340nm)

Figure

HC PL FLUOTAR 5x/0,15 IMM DLS

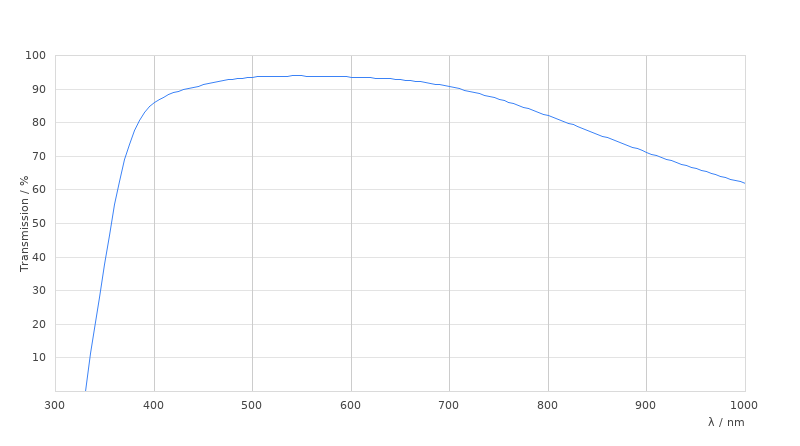

Transmission Curve

HC PL FLUOTAR 5x/0,15 IMM DLS

Dimension Sheet

HC PL FLUOTAR 5x/0,15 IMM DLS
