N PLAN EPI 20x/0,40 POL

Article Number 11556072
Correction Ring (CORR) -
Coverglass Without
Exit Pupil Position/DIC prism D
Field Number (FN) 22
Free Working Distance (WD in mm) Jan 15
Immersion Dry
Iris Diaphragm Without
Magnification 20⨉
Contrasting Methodes TL-BF, TL-DIC, TL-P, TL-POL, IL-BF, IL-DIC, IL-P, IL-POL, FLUO
Numerical Aperture 0.4
Objective Thread M25
Objective Type N PLAN
Spring Loaded No
Suitable for AFC (Adaptive Focus Control) -
Techniques IL, POL
Transmission UV (340nm)

Figure

N PLAN EPI 20x/0,40 POL

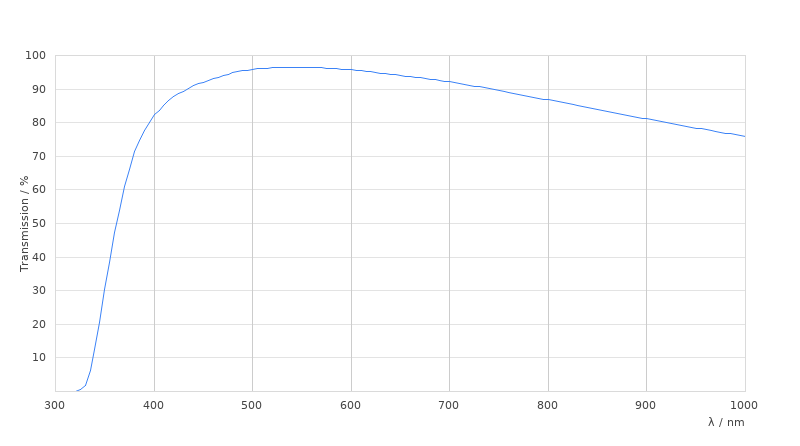

Transmission Curve

N PLAN EPI 20x/0,40 POL

Dimension Sheet

N PLAN EPI 20x/0,40 POL
