HC PL FLUOTAR L 100x/0,75

Article Number 11566085
Correction Ring (CORR) -
Coverglass Without
Exit Pupil Position/DIC prism -
Field Number (FN) 25
Free Working Distance (WD in mm) 4.7
Immersion Dry
Iris Diaphragm Without
Magnification 100⨉
Contrasting Methodes TL-BF, TL-P, IL-BF, IL-P, FLUO
Numerical Aperture 0.75
Objective Thread M25
Objective Type PL FLUOTAR
Spring Loaded No
Suitable for AFC (Adaptive Focus Control) -
Techniques IL

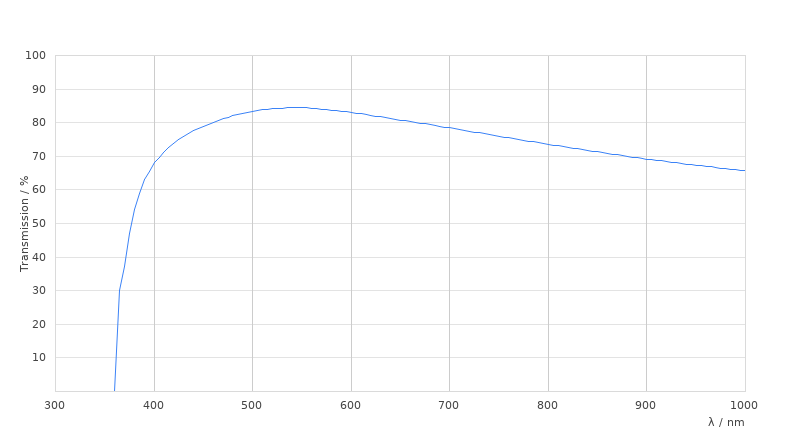

Transmission -

Figure

HC PL FLUOTAR L 100x/0,75
