| Article Number | 11506208 |
|---|---|
| Correction Ring (CORR) | CORR |
| Coverglass | With & without |
| Exit Pupil Position/DIC prism | C |
| Field Number (FN) | 25 |
| Free Working Distance (WD in mm) | 3.3-1.9 |
| Immersion | Dry |
| Iris Diaphragm | Without |
| Magnification | 40⨉ |
| Contrasting Methodes | TL-BF, TL-DIC, TL-P, TL-DF, TL-IMC, FLUO |
| Numerical Aperture | 0.6 |
| Objective Thread | M25 |
| Objective Type | PL FLUOTAR |
| Spring Loaded | No |
| Suitable for AFC (Adaptive Focus Control) | - |
| Techniques | Ablation, LMD, XT |
| Transmission | UV (340nm) |
Figure

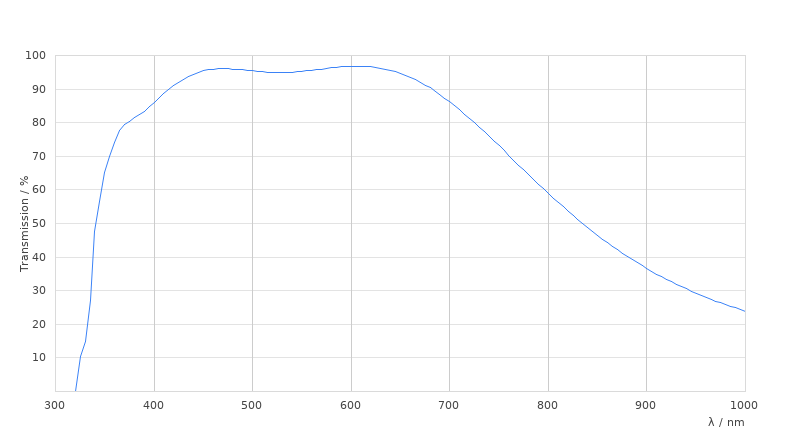

Transmission Curve

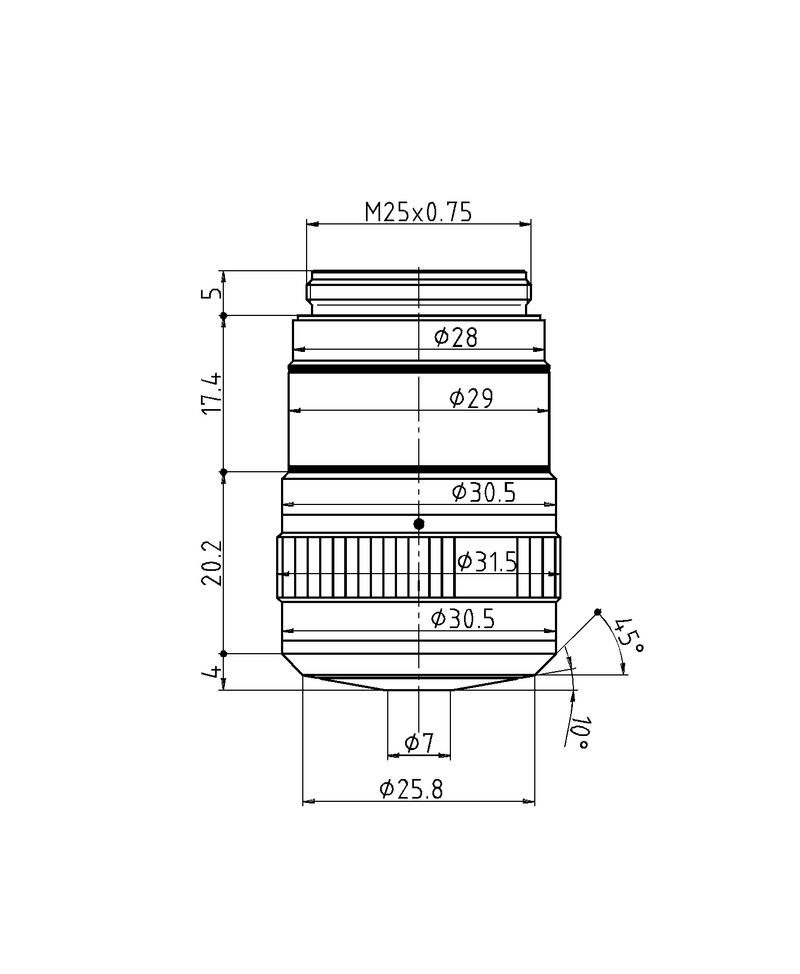

Dimension Sheet
