| Article Number | 11506405 |
|---|---|
| Correction Ring (CORR) | - |
| Coverglass | With & without |
| Exit Pupil Position/DIC prism | B |
| Field Number (FN) | 25 |
| Free Working Distance (WD in mm) | 17.7 |
| Immersion | Dry |
| Iris Diaphragm | Without |
| Magnification | 10⨉ |
| Contrasting Methodes | TL-BF, TL-DIC, TL-P, TL-DF, TL-IMC, FLUO |
| Numerical Aperture | 0.25 |
| Objective Thread | M25 |
| Objective Type | N PLAN |
| Spring Loaded | No |
| Suitable for AFC (Adaptive Focus Control) | - |
| Techniques | |
| Transmission | UV (365nm) |
Figure
Transmission Curve

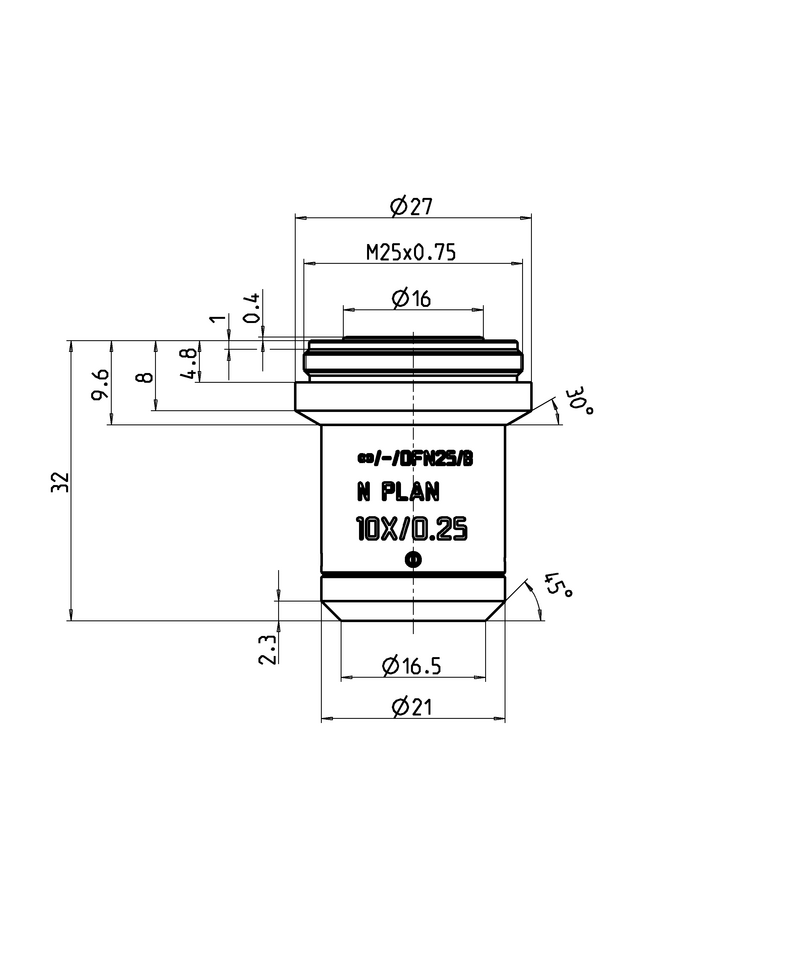

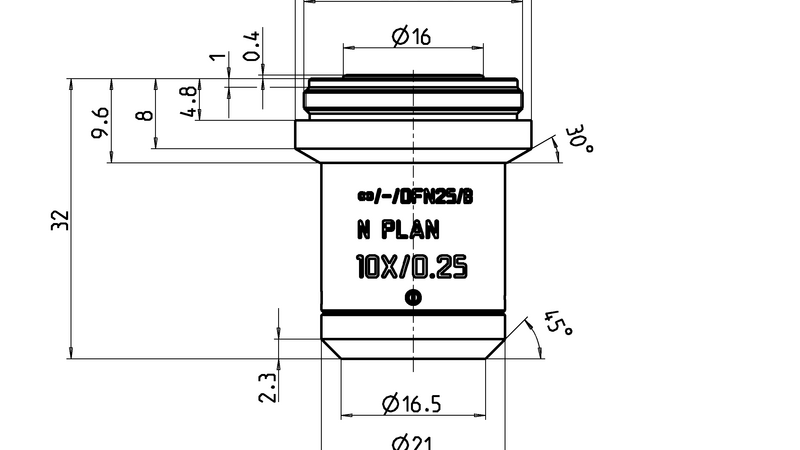

Dimension Sheet
