HC PL APO SAPPHIRE 40x/1,1 W motCORR CS2

Article Number 11506434
Correction Ring (CORR) motCORR
Coverglass With
Exit Pupil Position/DIC prism -
Field Number (FN) 25
Free Working Distance (WD in mm) 0.65
Immersion Water
Iris Diaphragm Without
Magnification 40⨉
Contrasting Methodes TL-BF, TL-IMC, FLUO
Numerical Aperture 1.1
Objective Thread M25
Objective Type PLAN APO
Spring Loaded Yes
Suitable for AFC (Adaptive Focus Control) AFC suitable
Techniques CS2, MotCorr, Waterdispenser

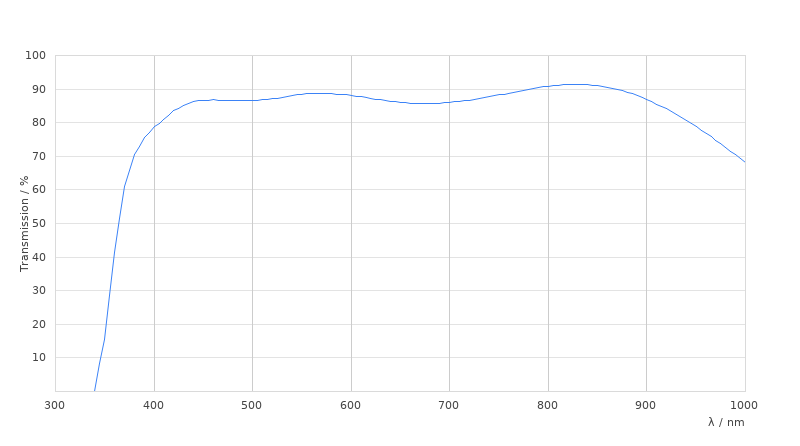

Transmission UV (365nm)

Figure

HC PL APO SAPPHIRE 40x/1,1 W motCORR CS2
