| Article Number | 11506524 |
|---|---|
| Correction Ring (CORR) | - |
| Coverglass | With & without |
| Exit Pupil Position/DIC prism | D |
| Field Number (FN) | 20 |
| Free Working Distance (WD in mm) | 3.6 |
| Immersion | Water |
| Iris Diaphragm | Without |
| Magnification | 10⨉ |
| Contrasting Methodes | TL-BF, TL-DIC, TL-DF, FLUO |
| Numerical Aperture | 0.3 |
| Objective Thread | M25 |
| Objective Type | APO |
| Spring Loaded | No |
| Suitable for AFC (Adaptive Focus Control) | - |
| Techniques | LightSheet, MP |

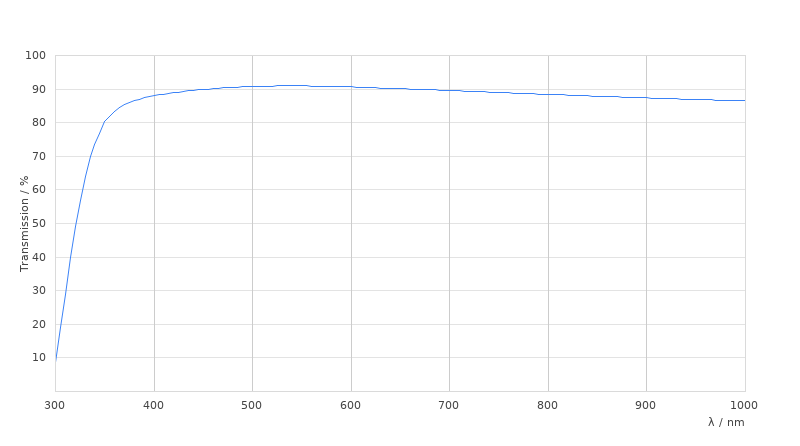

| Transmission | UV (340nm) |
Figure

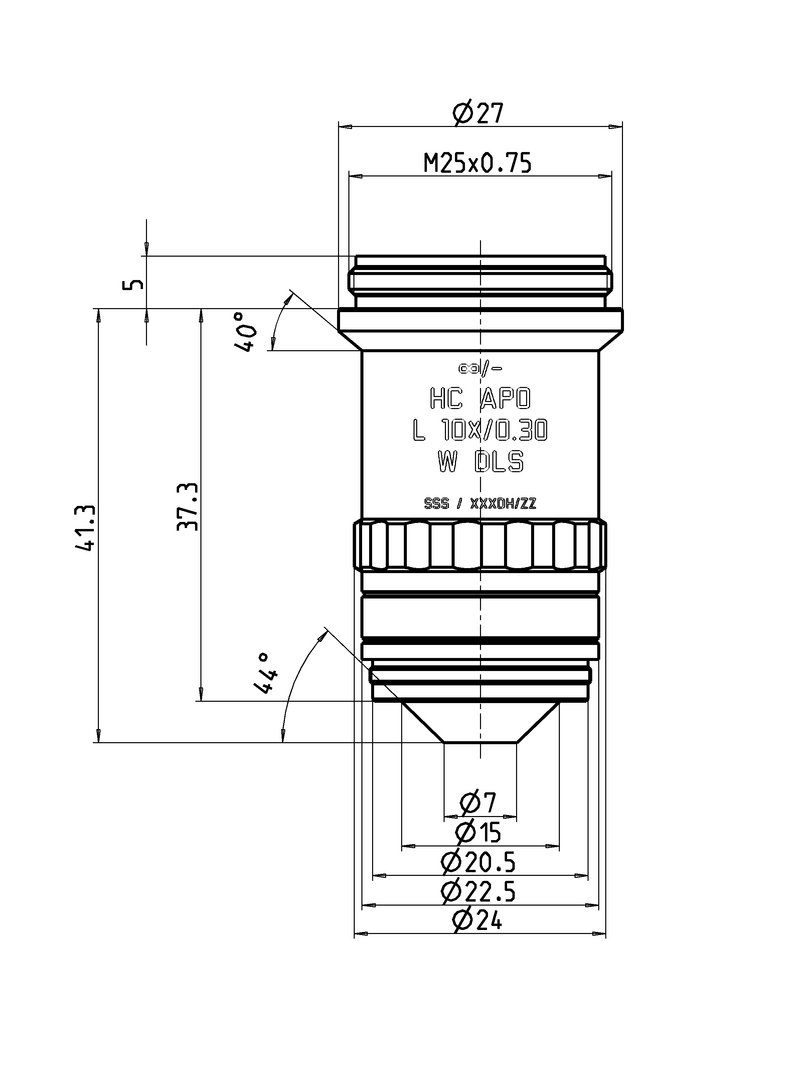

Dimension Sheet
