HC APO L 20x/1,00 W

Article Number 11507701
Correction Ring (CORR) -
Coverglass Without
Exit Pupil Position/DIC prism H
Field Number (FN) 20
Free Working Distance (WD in mm) 1.95
Immersion Water
Iris Diaphragm Without
Magnification 20⨉
Contrasting Methodes TL-BF, TL-DIC, FLUO
Numerical Aperture 1
Objective Thread M32
Objective Type APO
Spring Loaded No
Suitable for AFC (Adaptive Focus Control) -
Techniques Electrophysiology, MP
Transmission UV (365nm)

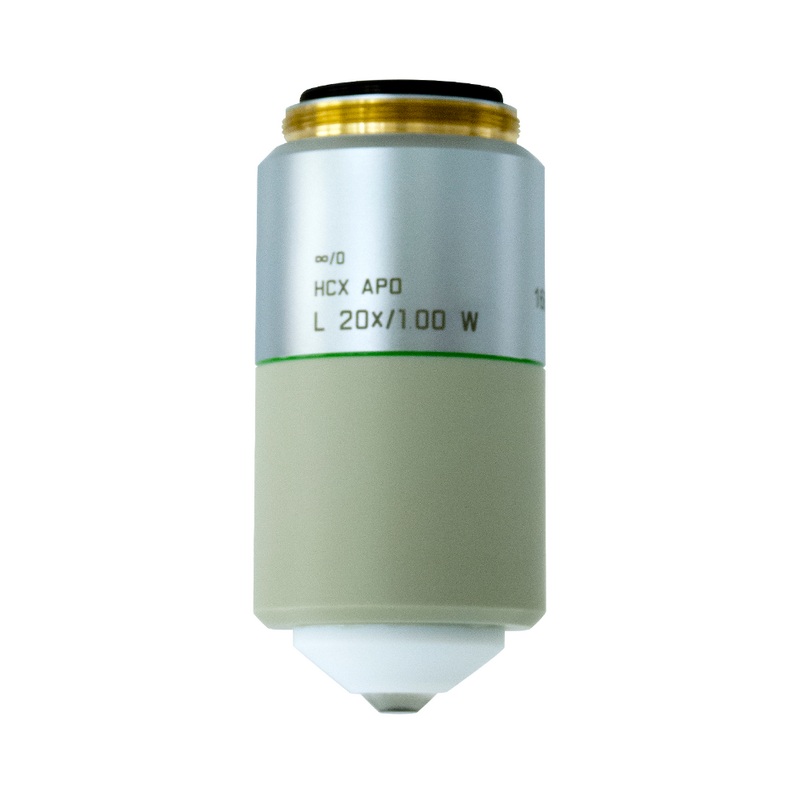

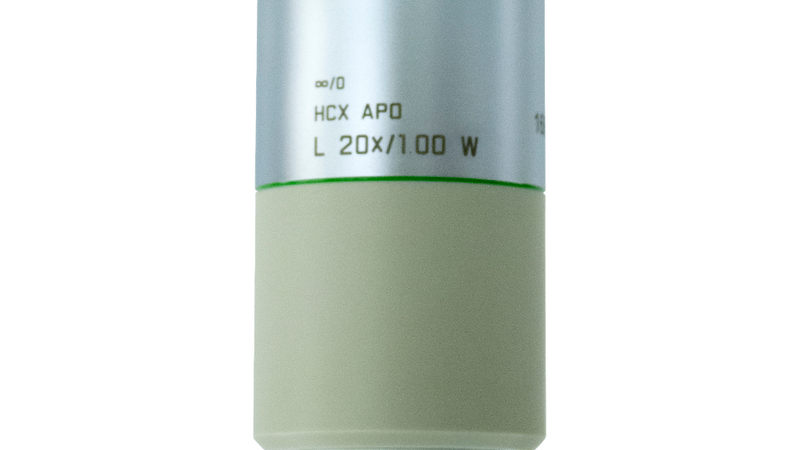

Figure

HC APO L 20x/1,00 W

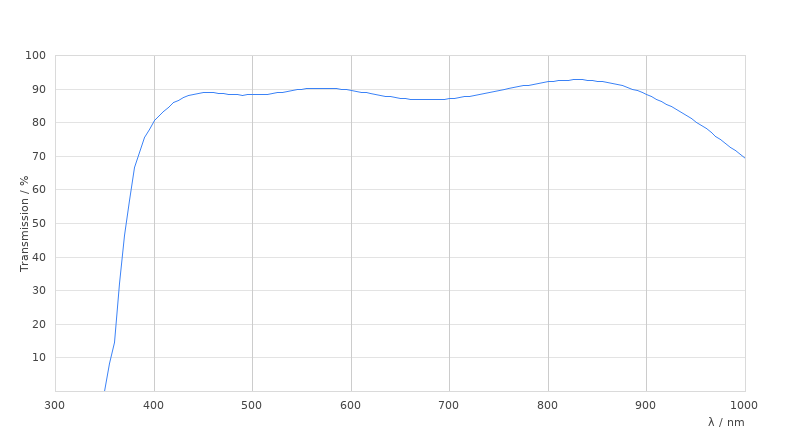

Transmission Curve

HC APO L 20x/1,00 W

Dimension Sheet

HC APO L 20x/1,00 W
