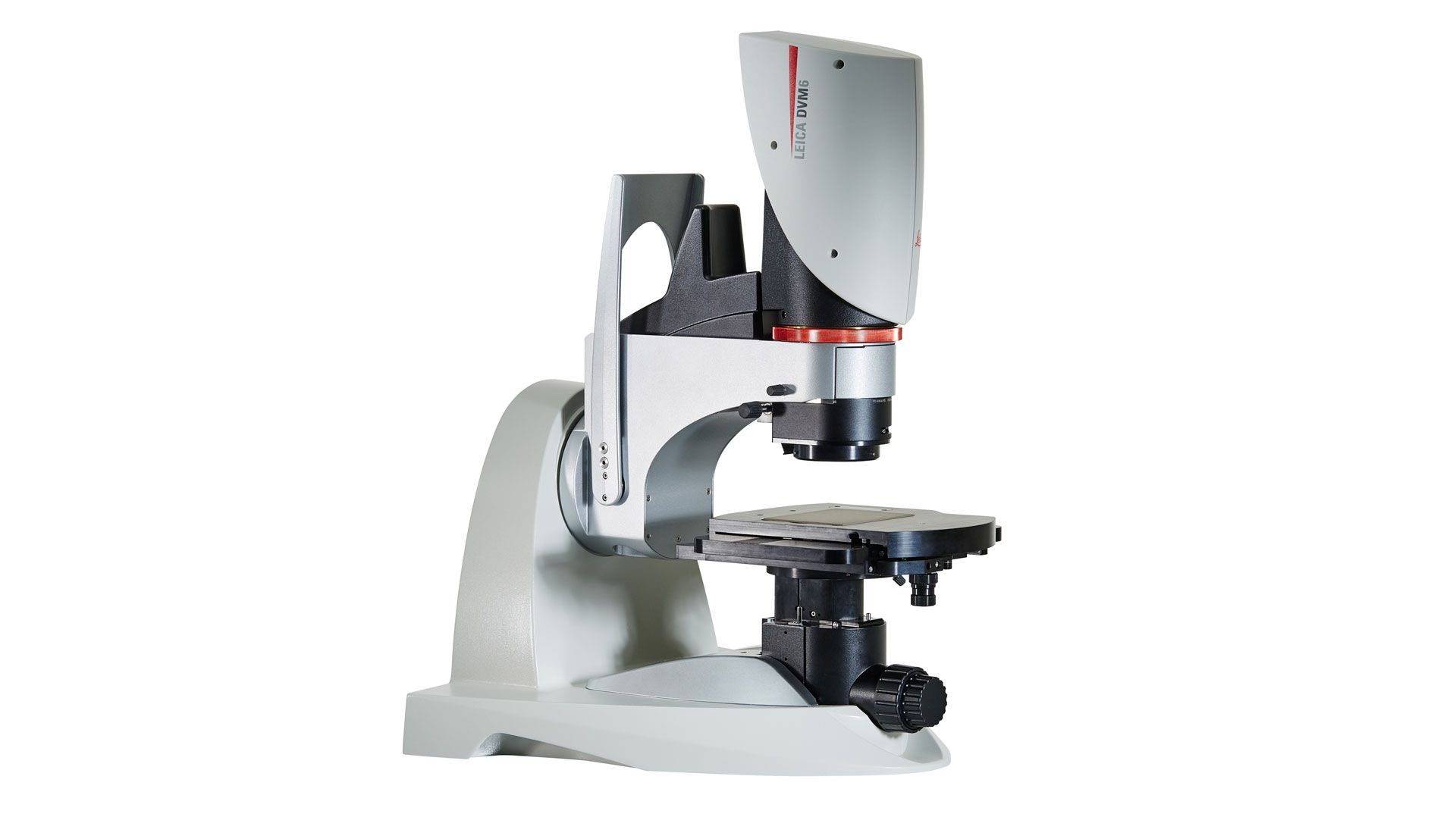

DVM6 A Advanced Digital Microscope with Tilting Optics
The DVM6 digital microscope revolutionizes microscopy with its innovative tilting optics feature. This cutting-edge technology allows users to effortlessly adjust the angle of the optics, providing unparalleled flexibility and versatility in observation. With high-resolution imaging and intuitive controls, the DVM6 offers precise and detailed visualizations in various applications. Elevate your microscopy experience with the DVM6, where tilting optics redefine flexibility and precision in digital microscopy.
Loading...
Get free shippingIn the US
Online ordersNow available
Key Benefits
- Motorized precision xy-stage with manual coarse positioning
- Motorized focus for automatic 3D imagestacking (can also be focused manually)
- Software package including image capture and management, 2D measurements and annotations, images with high depth of field, autofocus function, multi-focus images with 3D view and measurement, and automatic xy panoramas in 2D and 3D
Components
DVM6 A Advanced Digital Microscope with Tilting Optics includes: |
Quantity |
|
|---|---|---|
 |
Leica DVM6 A10450703 |
1 |
|
Polarisation adapter for DVM6 Objectives10450708 |
1 |
|
DVM6 Objective, FOV 12.55 mm10450705 |
1 |
|
Dust cover (40 x 35 x 75 cm), antistatic10450287 |
1 |
|
Transmitted light adapter for DVM610450712 |
1 |
|
1 Day SM Application Training(Image/Dig)9I_SM_APPLIC1 |
1 |
|
Power cable, 2 m, USA10445661 |
1 |
|
Keyboard US ;USB Hub11600220 |
1 |
|
System Integration LAS X11640024 |
1 |
|
HP E27k G5 27" UHD11533663 |
1 |
|
Silver Workstation11640714 |
1 |

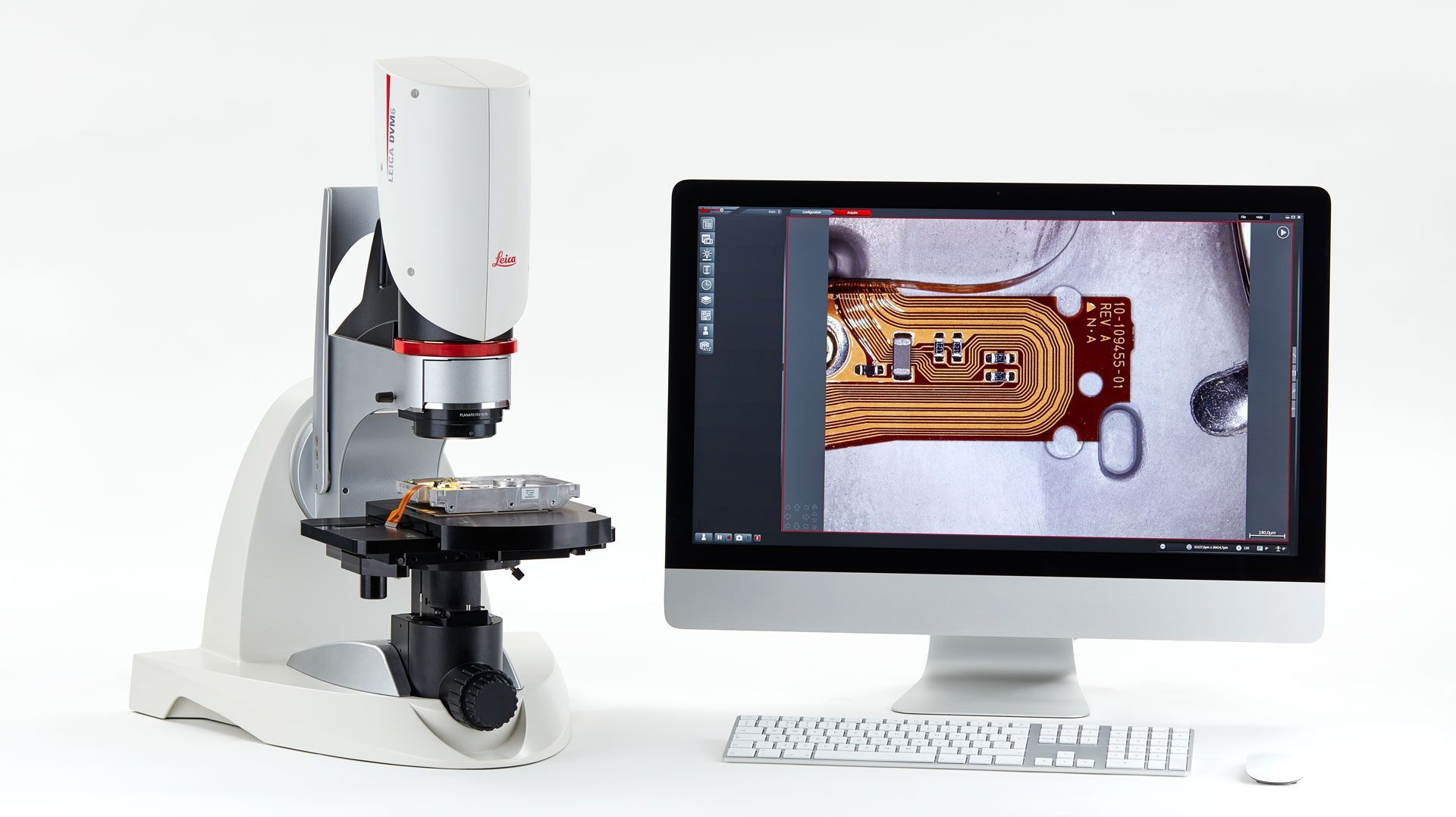

Leica DVM6A Advanced Digital Microscope with Tilting Optics
Specifications:
- Large zoom range with 16:1 zoom ratio to cover object fields from 43.75mm down to 225µm with only 2 DVM6 objectives (12x to 4740x magnification).
- See details down to 425nm (resolution up to 2350 lp/mm) with fully apochromatic corrected optics.
- Integrated 10MPixel camera with fast live image (37 frames per second @ 1600x1200 Pixel).
- Integrated, software controlled illumination options.
- FlexAperture automated iris control for best resolution or maximum depth-of-field images.
- Motorized XY-stage with 70mm x 50mm travel range. The stage can be manually positioned and rotated for coarse alignment.
- Motorized precision focus drive with additional manual coarse & fine control.

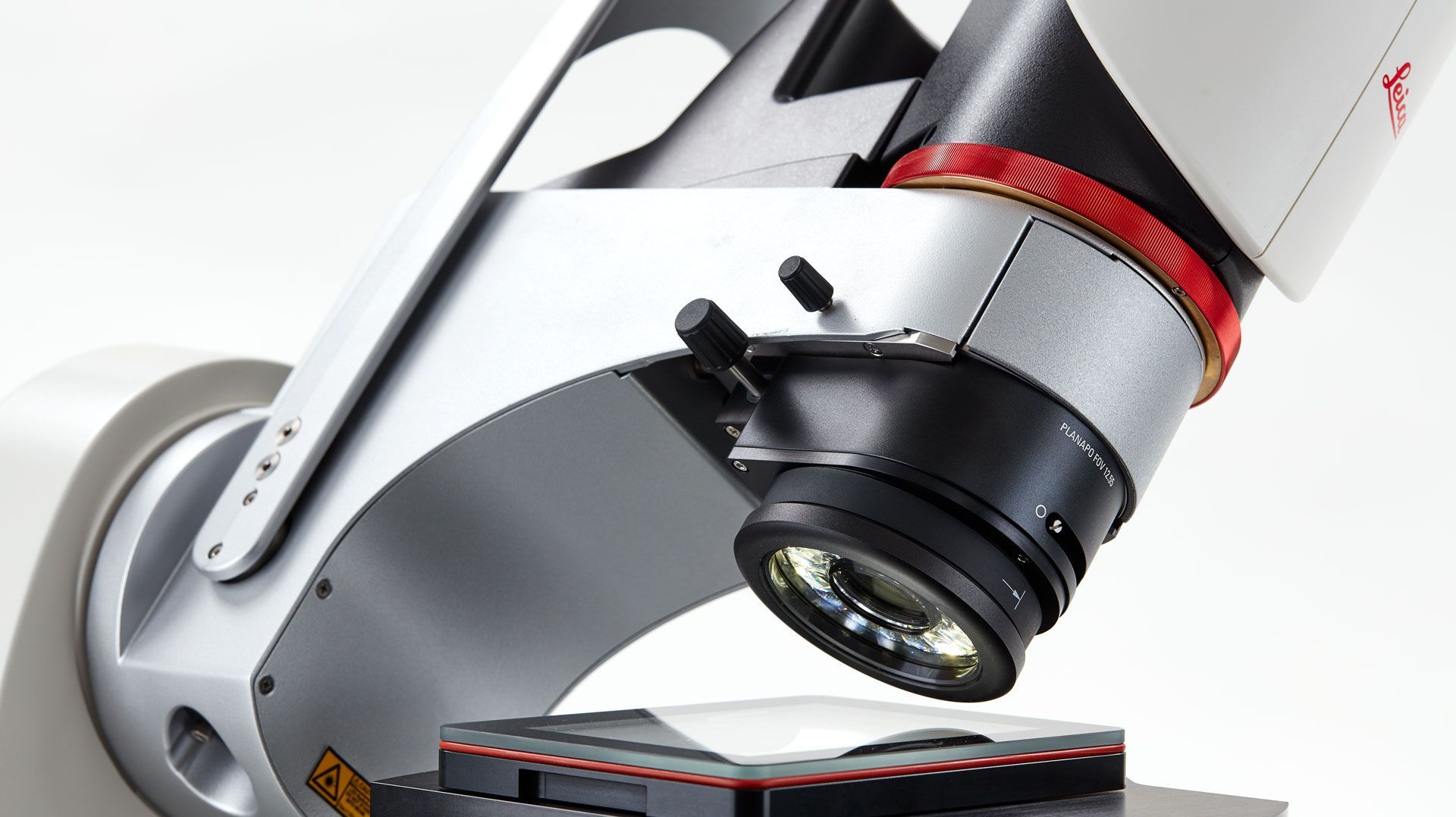

- Tilting stand with one-handed operation to be adjusted to any angle from -60° to +60°, tilt angle displayed on screen.
- Dual-mode Autofocus function for precise focussing and focus tracking.
- LAS X software modules included to measure, annotate and create reports in Excel.
- LAS X software modules included to create multifocus images and automated XY-stitching. The results can be viewed and analysed in 3D.
Includes:
- 10450703 Leica DVM6 A
- 10450708 Polarisation adapter for DVM6 Objectives
- 10450705 DVM6 Objective, FOV 12.55 mm
- 10450287 Dust cover (40 x 35 x 75 cm), antistatic
- 10450712 Transmitted light adapter for DVM6
- 9I_SM_APPLIC1 1 Day SM Application Training(Image/Dig)
- 10445661 Power cable, 2 m, USA
- 11640710 W2 Workstation
- 11533663 HP E27k G5 27 UHD
- 11600220 Keyboard US
- 11640024 System Integration LAS X"
