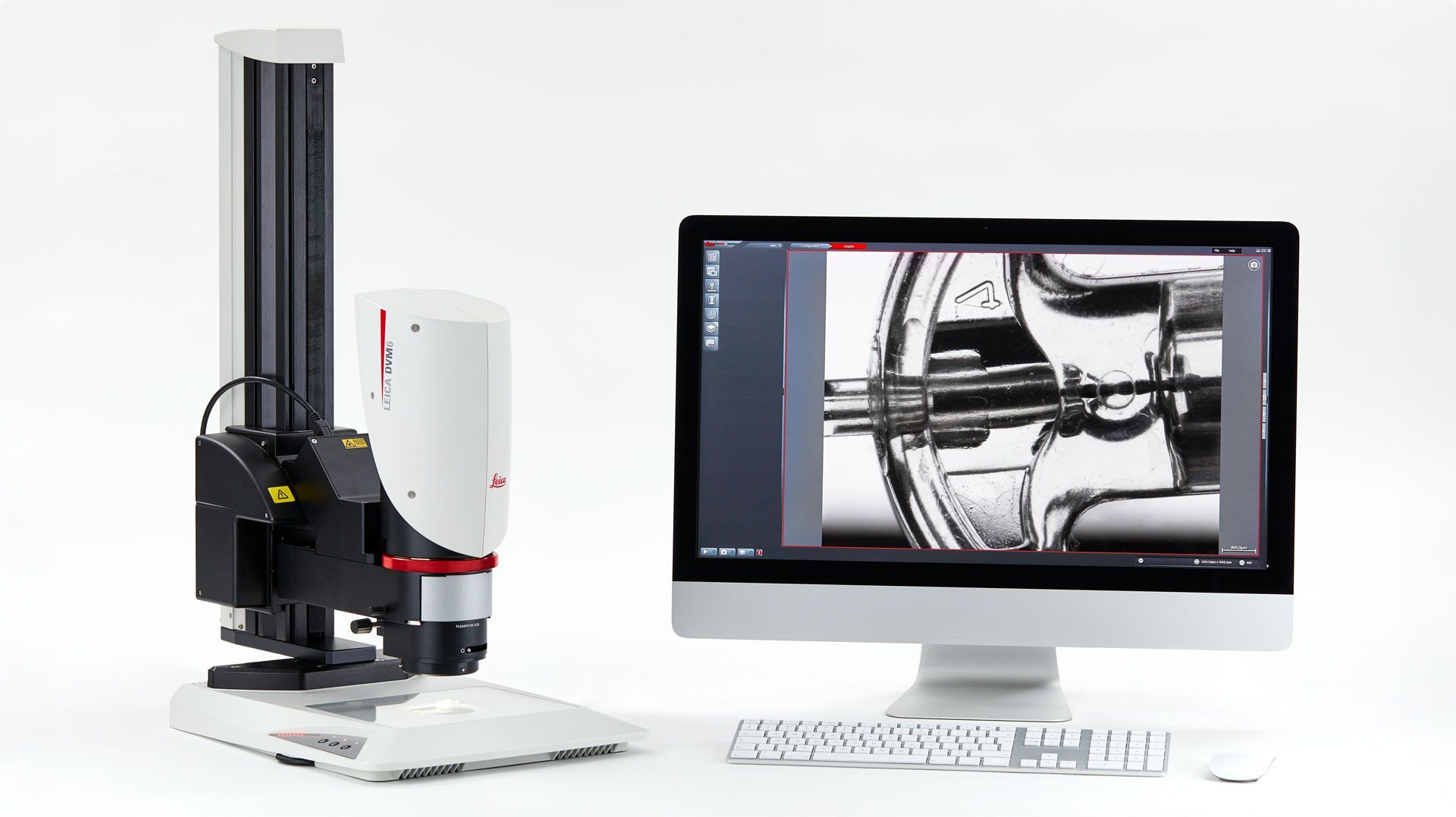

DVM6 M Routine Digital Microscope with Extra Tall Column Suitable for Large Parts
The DVM6 digital microscope redefines versatility with its extra tall column, perfectly suited for inspecting large parts. Designed to meet the demands of industrial applications, this microscope offers unparalleled flexibility in observing oversized specimens with ease. With high-resolution imaging and intuitive controls, the DVM6 provides precise and detailed visualizations, ensuring accuracy in inspections of all sizes. Elevate your microscopy experience with the DVM6, where the extra tall column opens up new possibilities for examining large parts with exceptional clarity and convenience.
Loading...
Get free shippingIn the US
Online ordersNow available
Key Benefits
- One single system to accommodate various sample types and sizes to 2 kg and travel range of 60 mm
- With a special interface adapter, the DVM6 M zoom module can be used with selected stands from the Leica M series. This setup allows you to examine larger and higher samples
- Software features for recurring tasks assure same data quality from user to user
- Reports with comprehensive analysis and measurements for 2D or 3D surfaces
- LAS X updates or additional software modules keep your system up-to-date
Components
DVM6 M Routine Digital Microscope with Extra Tall Column Suitable for Large Parts includes: |
Quantity |
|
|---|---|---|
 |
Zoom module DVM6m10450719 |
1 |
|
DVM6 M interface module10450707 |
1 |
|
DVM6 Objective, FOV 43.75 mm10450704 |
1 |
|
Polarisation adapter for DVM6 Objectives10450708 |
1 |
|
DVM6 Objective, FOV 12.55 mm10450705 |
1 |
|
Dust cover (40 x 35 x 75 cm), antistatic10450287 |
1 |
|
Inc. light base, large w. AntiShock feet10450049 |
1 |
|
Motor Focus drive long 620mm M-series10450503 |
1 |
|
Handwheel-Motor Focus for M-Series10450298 |
1 |
|
1 Day SM Application Training(Image/Dig)9I_SM_APPLIC1 |
1 |
|
Power cable, 2 m, USA10445661 |
1 |
|
Dongle for LAS X optional modules11640879 |
1 |
|
LAS X 3D Surface Package11640604 |
1 |
|
LAS X Measurements11640559 |
1 |
|
LAS X EDOF incl. z-control11640610 |
1 |
|
Keyboard US ;USB Hub11600220 |
1 |
|
System Integration LAS X11640024 |
1 |
|
HP E27k G5 27" UHD11533663 |
1 |
|
Silver Workstation11640714 |
1 |
Specifications:
- The modular DVM6 zoom head offers configuration flexibility.
- Large zoom range with 16:1 zoom ratio to cover object fields from 43.75mm down to 225µm with only 2 DVM6 objectives (12x to 4740x magnification).
- See details down to 425nm (resolution up to 2350 lp/mm) with fully apochromatic corrected optics.
- Integrated 10MPixel camera with fast live image (37 frames per second @ 1600x1200 Pixel).
- Integrated, software controlled illumination options.
- FlexAperture automated iris control for best resolution or maximum depth-of-field images.
- Includes the core version of LAS X software.
DVM6 Digital Microscope
Digital microscope for 2D and 3D imaging and analysis
