DM4000 M Versatile Upright Microscope for Materials Analysis
Ideal for specific applications
The versatile, modular system adapts to specific application needs.
6-inch conversion kit for:

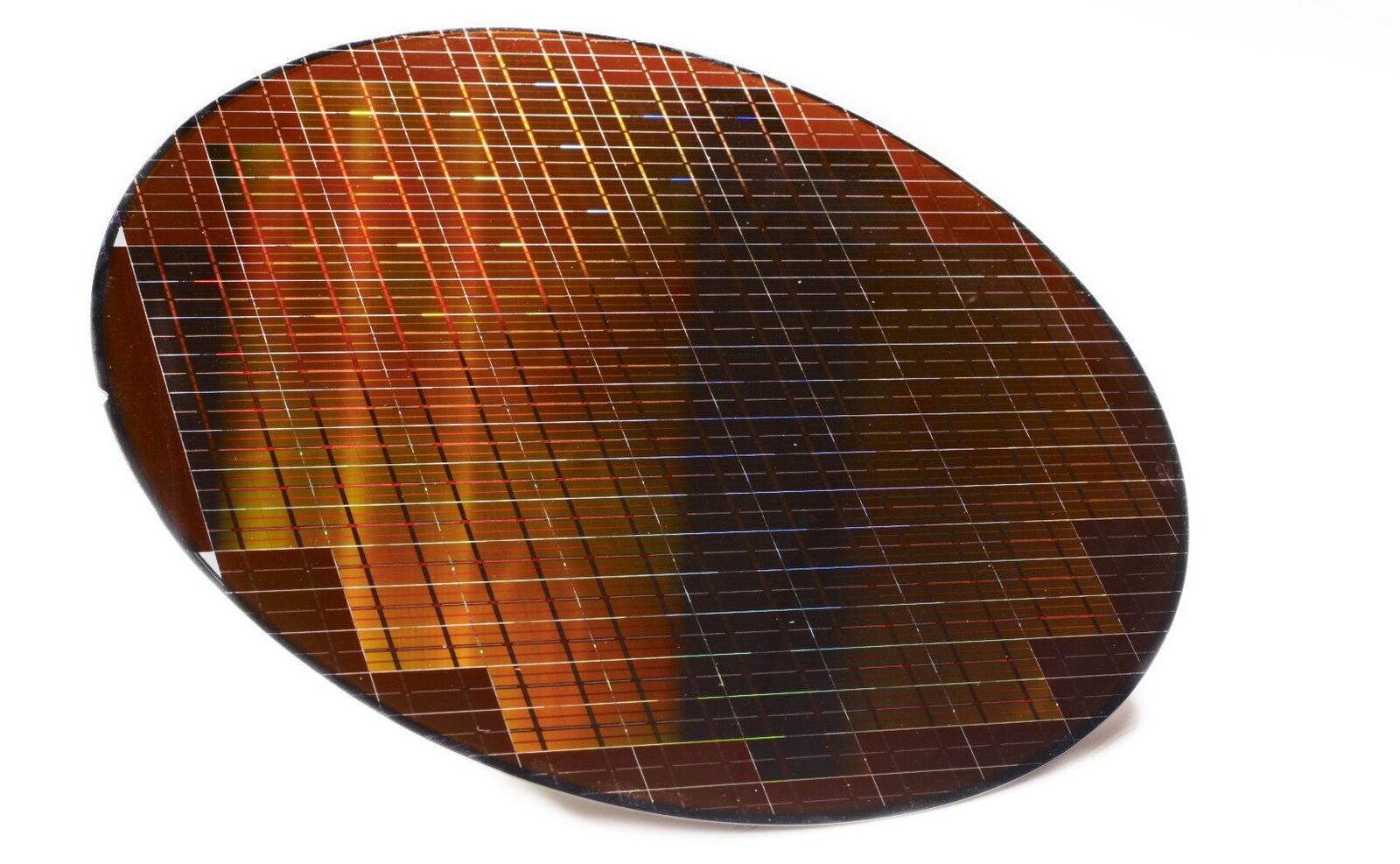

Large samples up to 150mm x 150mmLarger microelectronic devicesPrinted circuit boards6” wafersCompact LCD-samplesSolar cells Questioned document investigations in forensics
Leica DM4000 M 6x6 Specifications:
6-position nosepiece (M32), manualManual 6“ stage with rapid control handleManual focus…
Confirming Image Calibration
This video shows how to verify the calibration by checking the displayed scale bar with a stage micrometer.
Automating the calibration process
This video shows how LAS rapidly calibrates all the zoom click stops with assisted automation.
Live Image Builder – Preparing for operation
This video shows how to make the vital image adjustments so that you are immediately ready for Live Building.
Live Image Builder XY Stitching
Rapidly creates large images exceeding the normal field of view. This software automatically detects XY movement of the sample and compiles the information to one large image.
Live Image Builder – Extended Focus Image
Get sharp images within seconds from a sample with shallow depth of field using extended focus in Live Image Builder. By changing the focus manually the software detects and adds the parts that are in focus into one sharp crisp image.
LAS Grain Expert
This video shows how to measure Grain Sizes automatically. This module allows manual or automatic options to meet your needs today and in the future.
LAS Phase Expert
Multiple types of phases are easily measured by using the Phase Expert Module. Ideal for detection of different phases in mineral or metal samples. Charts and statistical data can be displayed on the screen or exported to MS Excel ™.
