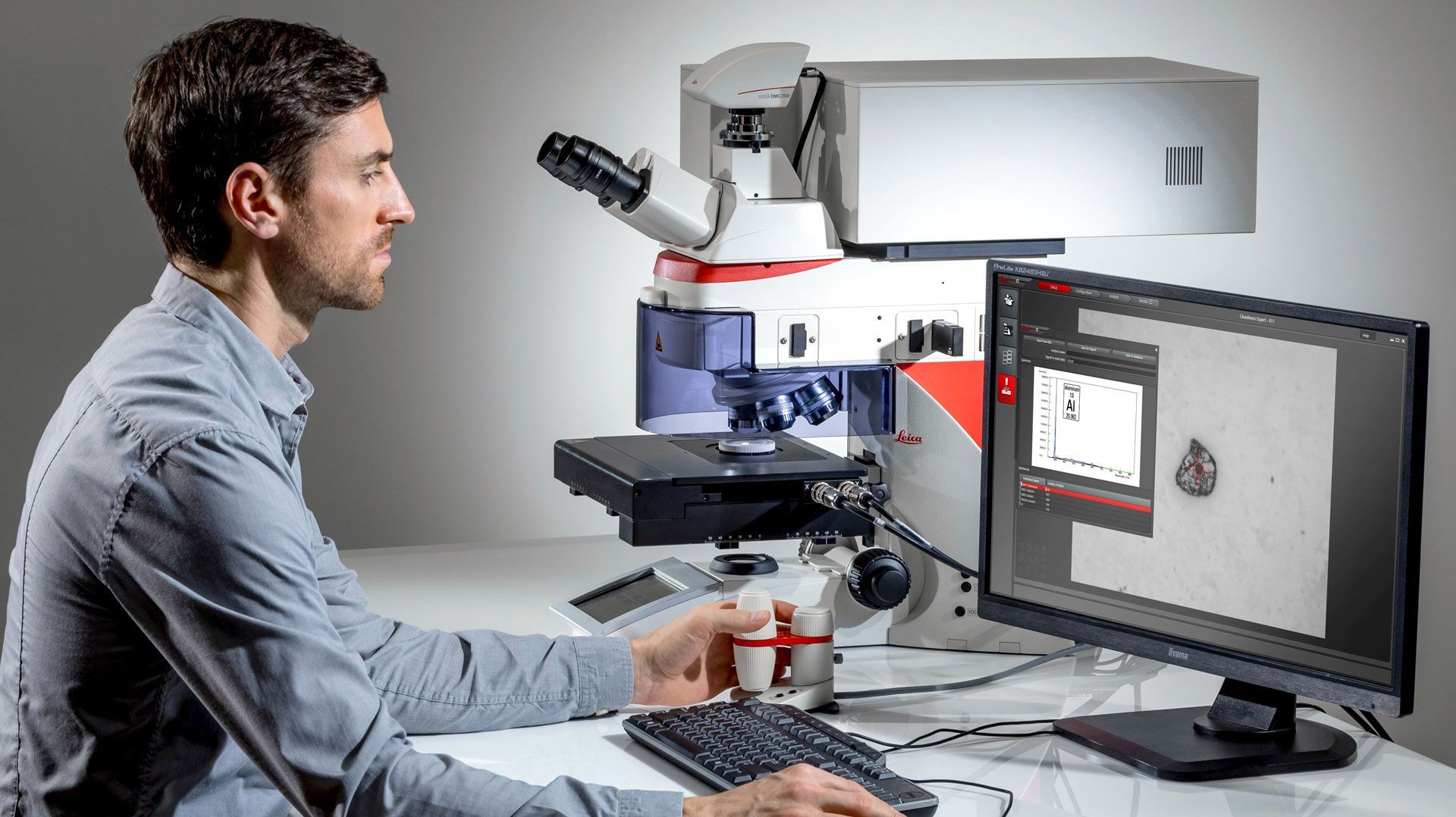

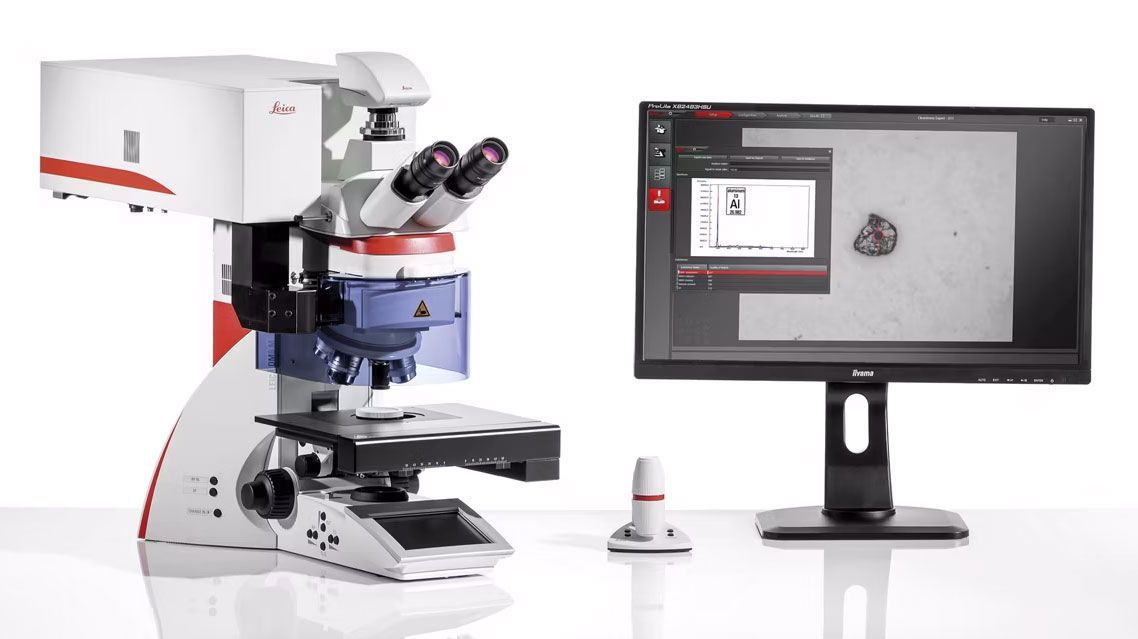

DM6 M LIBS Material Analysis Microscope
Use the DM6M fully motorized inspection microscope with all contrasting modes and benefit from the huge magnification range starting at 1.25x for fast sample overview. The light and contast manager adjusts the required settings for each objective and contrast mode fully automatically and so allows easy operation for each user. By the possibility of an instantaneous chemical analysis by laser induced breakdown spectroscopy (LIBS) the user gets all required information direct and on the spot within seconds without the need of further sample preparation or transportation to other devices.
Loading...
Get free shippingIn the US
Online ordersNow available
Key Benefits
- The LIBS module turns a Leica optical microscope into a 1-step solution that combines visual inspection and chemical analysis right at your workspace
- Determine the composition of what you have visually identified within seconds
- Use LIBS to perform advanced material analysis 90% faster compared to inspection with SEM/EDS
- Surface contamination or coatings can also be easily removed
- Chemical mapping and micro-drilling are further analytical steps
Components
DM6 M LIBS Material Analysis Microscope includes: |
Quantity |
|
|---|---|---|
 |
DM6 M basic stand, RL/TL, LED, mot. Z11889193 |
1 |
|
Dust cover for DM4/611505168 |
1 |
|
Bodenplatte mit Filtermagazin11888100 |
1 |
|
Reflector BF, fixed11888716 |
1 |
|
Smart Move l²C11525232 |
1 |
|
Reflector DF DM8000/DM1200011888740 |
1 |
|
CTR compact XY11525227 |
1 |
|
LED lamp housing DM6, cable long11504242 |
1 |
|
Tube HC L2TU 4/5/7, binoc. phototube11501598 |
1 |
|
Eyepiece HC PLAN s 10x/25 Br. M11507808 |
2 |
|
Stage insert 160x116x7mm11532701 |
1 |
|
Universal MSH 2x2 for Metallography11533111 |
1 |
|
Stage Insert for MSH(1x) on DM4-6 M11533110 |
1 |
|
Glass plate 160x116x3mm; for industrial11600183 |
1 |
|
Scanning stage mot., DM4-6, 100x100,2mm11501260 |
1 |
|
Metal insert 160x116 f.Scan.-St.100x8011532502 |
1 |
|
Cable scanningstage, XY-adv. Board11525218 |
1 |
|
Condenser BF11505141 |
1 |
|
Condenser head achr. 0.50 S1511501037 |
1 |
 |
Microscope Objective HC PL FLUOTAR 5x/0,15 BD11566046 |
1 |
 |
Microscope Objective HC PL FLUOTAR 10x/0,30 BD11566503 |
1 |
 |
Microscope Objective HC PL FLUOTAR 20x/0,45 BD11566509 |
1 |
 |
Microscope Objective HC PL FLUOTAR 50x/0,80 BD11566201 |
1 |
|
Microscope Objective HC PL FLUOTAR 100x/0,90 BD11566203 |
1 |
|
Leica K5C Camera11547118 |
1 |
|
C-Mount adapter 1x HC f. 1"11541510 |
1 |
|
LIBS standard sample11560204 |
1 |
|
SpectralTools licence11560205 |
1 |
|
LIBS module, complete11560200 |
1 |
|
LIBS reflector cube11561105 |
1 |
|
Microscope Objective 20x/0.40 LIBS NUV11518149 |
1 |
|
Eingriffschutz für motorischen Tisch11560201 |
1 |
|
HP E27k G5 27 UHD"11533663 |
1 |
|
Silver Workstation11640714 |
1 |
>Specifications
- Including Light Manager for a time saving and easy operation.
- For a very fast overview on the sample the 1.25x objective can be adapted.
- The integrated Contrast Manager adjusts the required settings for each objective and contrast mode fully automatically and so allows easy operation for each user.
- 27“ 4k HDMI Monitor
- W2 Workstation (for imaging with xyz-motorized Microscopes)
- Motorized Z-drive
- With magnification changer
- Phototube HC L2TU 4/5/6
- Motorized objective turret
- With DF contrast
- Automated (motorized + scanning)
- Scanning stage 100x100 (2mm)
- Metal insert 160x116
- LIBS standard sample
