DMI5000 M Inverted Research Microscope for Materials Testing

Leica DMI5000 M for reflected light and transmitted light examinations with manual stage, motorized objective turret, motorized focus and a Leica DFC295 camera.

<media 43084 - - "TEXT, Specifications Leica DMI5000 M EN, Specifications_Leica_DMI5000_M_EN.pdf, 76 KB">Click here to download the…

This video shows how to verify the calibration by checking the displayed scale bar with a stage micrometer.

This video shows how LAS rapidly calibrates all the zoom click stops with assisted automation.

This video shows how to make the vital image adjustments so that you are immediately ready for Live Building.

Rapidly creates large images exceeding the normal field of view. This software automatically detects XY movement of the sample and compiles the information to one large image.

Get sharp images within seconds from a sample with shallow depth of field using extended focus in Live Image Builder. By changing the focus manually the software detects and adds the parts that are in focus into one sharp crisp image.

This video shows how to measure Grain Sizes automatically. This module allows manual or automatic options to meet your needs today and in the future.

Reflectors for contrast processes or fluorescence ­filters can be added through the access port. It opens at the touch of a button; the reflector can be replaced in seconds.

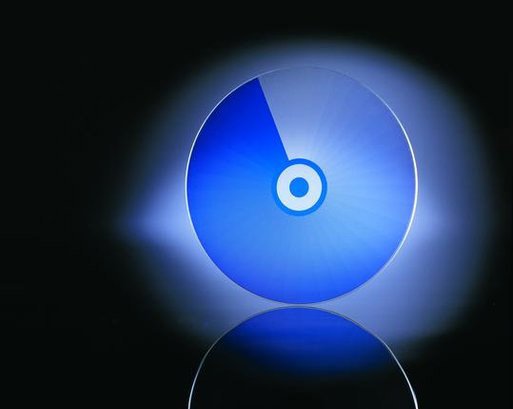

The reflected-light axis of the Leica DMI5000 M has an automatic CCIC module. It consists of a glass disk with a step-less blue filter. Thanks to its voltage-dependent rotation, this module ensures a constant incident-light color temperature of 3200 K. Even at low lamp voltages your images of such…

The front control panel shows the most important functions. Every reflector cube can be directly controlled. Touch a button to open or close the shutter, switch the camera output or adjust the interim magnification of the specimen. Feedback is provided immediately on the display.

A microscope system used for assessing the purity of steel must meet stringent requirements. The system illustrated here is a fully integrated solution: The Leica DFC295 digital camera, the DMI5000 M microscope and the Steel-Expert application software for an ultra fast automatic steel inclusion…

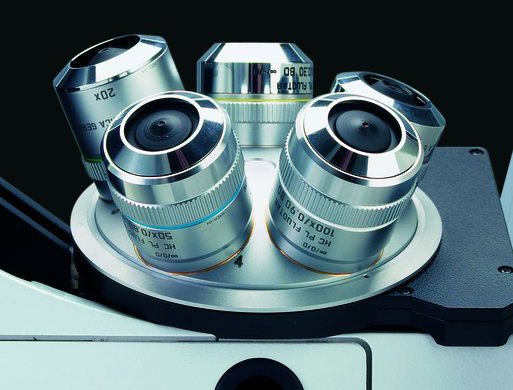

A touch of the button is enough to change the objective. The display shows the current objective magnification and the overall magnification immediately.

For documentation of results cameras are equiped to the DMI5000 M either on the right or on the left side of the microscope. A motorized disk with four positions that can be equipped to suit your individual requirement controls the two lateral ports. Beam splitters can be installed, which direct…

The top camera port on the tube is for manual use. Switch settings are 0/100% or 100/0%.

All current settings of the Leica DMI 5000 M microscope at a glance: the current contrast mode, selected magnification, specified lighting parameters, selected camera output and information on the focus level can all be read from the display.

The Leica illumination manager, located on the left side of the Leica DMI 5000 M, enables personalized settings of aperture and light intensity values. The device stores the light intensity and field and aperture stop values that you specify for every objective. You can also switch between reflected…

Manual operation of reflectors is now a relic of the past. With the Leica DMI 5000 M it is enough to touch the “DF” button and darkfield contrast is adjusted automatically. The microscope knows the appropriate reflector required for dark field contrast and inserts it into the optical path.

Four of…

The Focus Manager stores, manages and travels to two focal planes and is located on the right-hand side of the Leica DMI 5000 M  microscope. In addition to storing the focal plane, a lower level can be stored to ensure reliable objective changing, even with complex stage setups. The parfocal…

Multiple types of phases are easily measured by using the Phase Expert Module. Ideal for detection of different phases in mineral or metal samples. Charts and statistical data can be displayed on the screen or exported to MS Excel ™.
