Mateo Digital Microscopes
Meet the Mateo family
Comparison table
| Mateo TL | Mateo FL | |
| Transmitted light (Phase Contrast and Brightfield) | x | x |
| Fluorescence | - | x |
| Phase contrast | assisted | automated |
| Confluency measurement | x | x |
| Cell counting | - | x |
| Transfection efficiency | - | x |
| Mono camera | - | x |
| Color camera | x | x |
| Touch screen | - | x |
| Storage space | 16 GB | 500 GB |
| Data sharing using USB and Wi-Fi | x | x |
| Storage to network folder | - | x |
| Self-diagnosis | x | x |
| Compatible with cell culture hood | x | x |
x = included, o = optional, - = not available
Mateo FL base configuration | |
| Light source | 4-line LED (UV: 385/12nm; B: 472/28nm; G: 552/45nm; R: 635/20nm), white LED (for transmitted light) |
| Contrast methods | Transmitted illumination (brightfield and phase contrast) and incident fluorescence illumination |
| Condenser | S40/0.45, working distance 50 mm |
| Phase turret | Automated; 5-position |
| Filter cube turret | Automated; 5-position |
| Objective nosepiece | Encoded; 6-position nosepiece |
| Preinstalled objectives | None |
| Stage | Fixed stage (L*W) 262 mm x 212 mm |
| Focusing | Coarse and fine focusing; travel range 7 mm, min. adjustment 2 µm |
| Camera | 6 megapixel color camera (integrated), 6 megapixel mono camera (integrated) CMOS, sensor size 1 / 1.8’, pixel dimensions 2.4 μm x 2.4 μm H 3072 px, V 2048 px |
| Software | Embedded operating system. PC is not required. |
| Image output | JPEG and TIFF |
| Display | Color monitor with adjustable tilt |
| 1920 pixels x 1080 pixels | |
| Onboard storage | 500 GB |
| USB ports | 1 x USB 3.0, 3 x USB 2.0 |
| Dimension (depth x width x height) | 395 x 375 x 615 mm |
| Weight | 22 kg (with optional components) |
| Transportation aid | Supporting handle on the back of the microscope |
Mateo FL Optional accessories | |
| Object guide kit | Includes the object guide with two holding frames |
| Objectives | 2.5x N PLAN, 4x HI PLAN / PH0, 5x N PLAN / PH0, 10x HI PLAN I / PH1, 10x N PLAN / PH1, 20x HI PLAN I, 20x HI PLAN I / PH1, 20x N PLAN L / PH1, 20x HC PL FL L / CORR PH1 PL FLUOTAR L, 40x HI PLAN I / PH1, 40x HI PLAN I / PH2, 40x N PLAN L / CORR PH2 N PLAN L, 40x HC PL FL L / CORR PH2 PL FLUOTAR L, 63x N PLAN |
| Filter cubes | DAPI 390, GFP ET, Y3 ET, Y5 ET |
| Wi-Fi dongle | Wi-Fi dongle to share images; 5 GHz/2.4 GHz |
| Thermal plate | TPX Heating Frame Glass Type F |

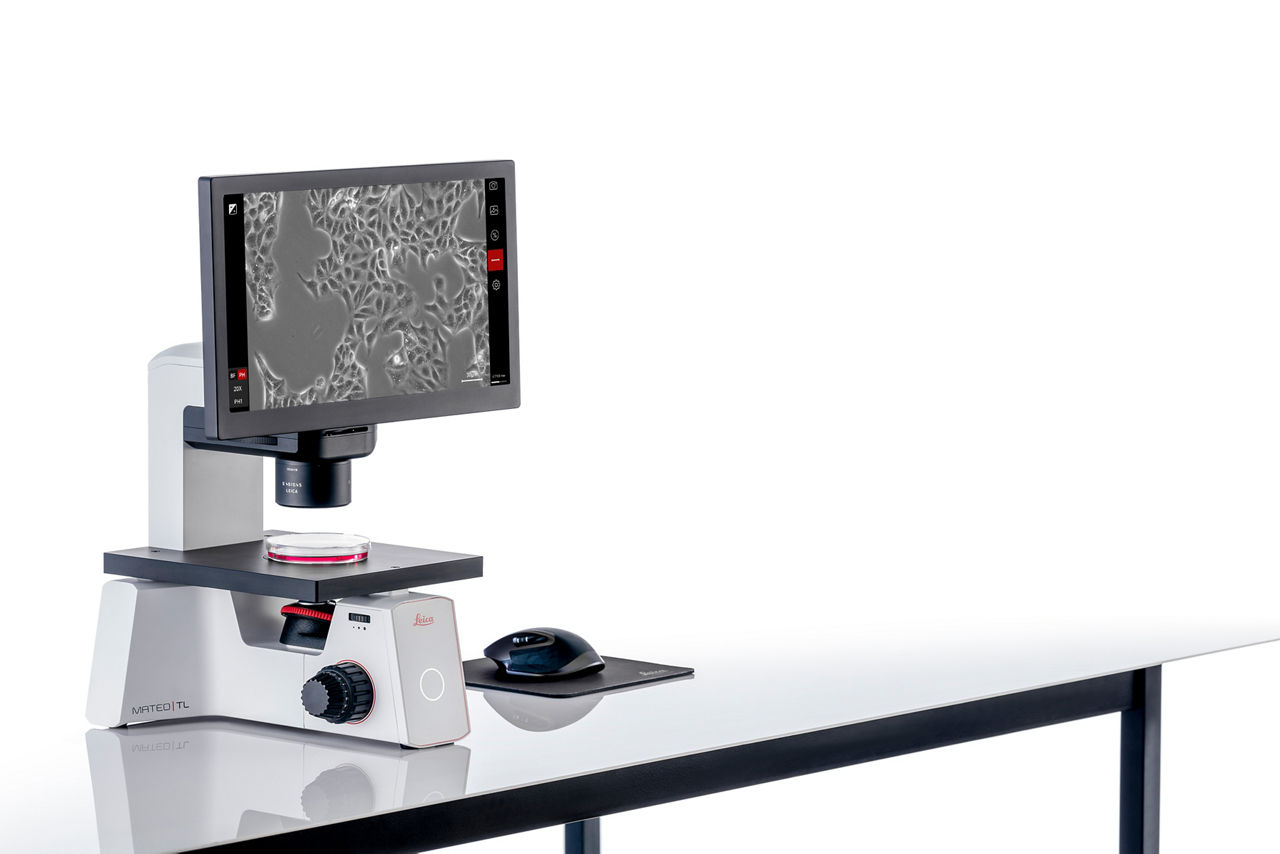

Mateo TL base configuration | |
Light source | LED |
Contrast methods | Transmitted light (brightfield and phase contrast)
|
Condenser | S40/0.45 condenser, working distance 50 mm |
Phase turret | Encoded 3-position turret (BF, PH0, PH1) |
Objective nosepiece
| Encoded 4-position nosepiece |
Preinstalled objectives | HI PLAN 4x /0.10 PH0 HI PLAN I 10x /0.22 PH1 |
Stage | Fixed stage (L*W) 262 mm x 212 mm |
Focusing | Coarse and fine focusing, travel range 7mm, min. adjustment 2μm |
Camera | Integrated CMOS, 6 megapixel color camera, sensor size 1 / 1.8“, pixel dimensions 2.4 μm × 2.4 μm, sensor format H: 3072; V: 2048 |
Software | Embedded operating system with software for e.g. cells observation, image capturing and saving |
Image output | JPEG and TIFF |
Display | Color monitor with adjustable tilt, 15.6 inch, 1920 pixels x 1080 pixels |
Onboard storage | Total storage 16 GB (Approximately 9 GB for the operating system and 7 GB for storing images and logfiles) |
USB ports | 1x USB 3.0 and 2x USB 2.0 |
Dimension (depth x width x height) | Monitor in display position: 310 mm x 376 mm x 530 mm Monitor in folded position: 310 mm x 376 mm x 385 mm |
Weight | 11 kg |
Transportation aid | Supporting handle on the back of microscope |
Other items included in the base configuration | Wireless mouse, mouse pad, dust cover, power adaptor, power cord, user manual and quick start guide |
Mateo TL Optional accessories | |
Objectives

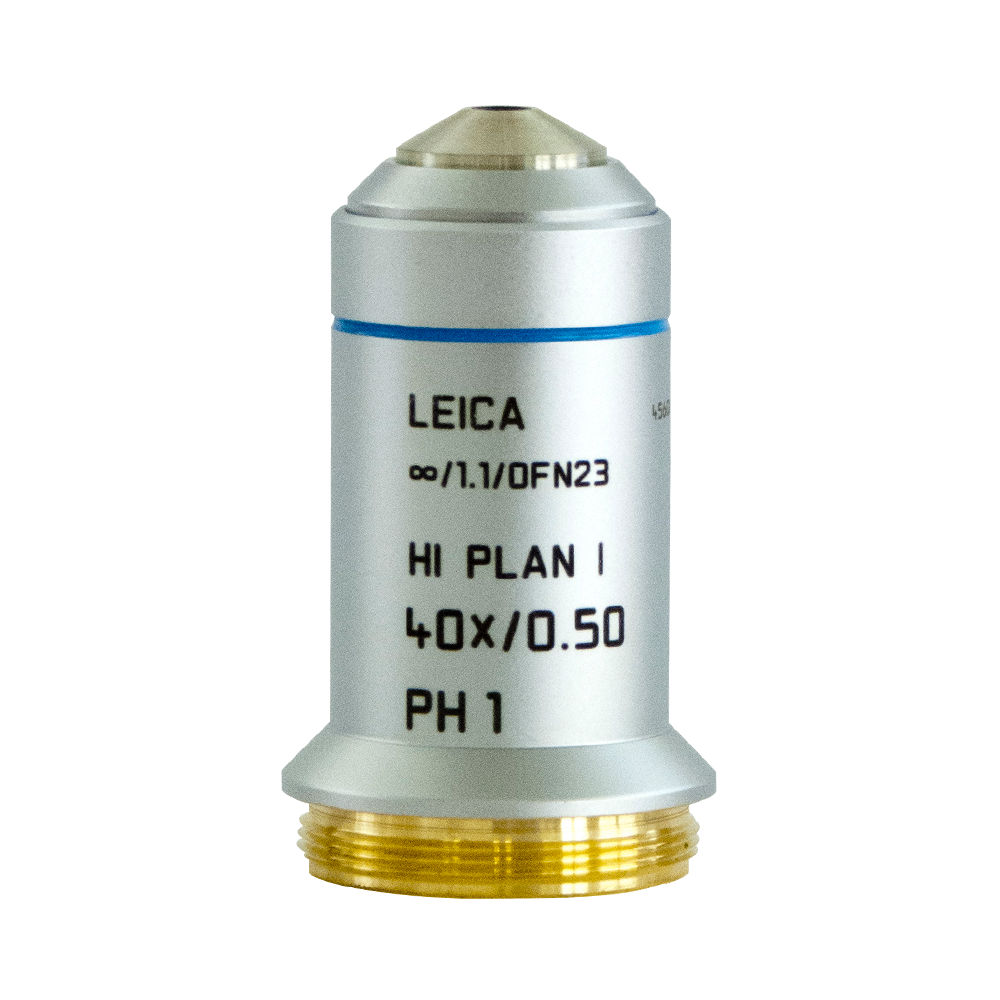

| HI PLAN I 20x/0.30 PH1 HI PLAN I 40x/0.50 PH1 |
Object guide kit | Including
|
Software module | Confluency module |
WIFI dongle | WIFI Dongle 2.4 GHZ |
