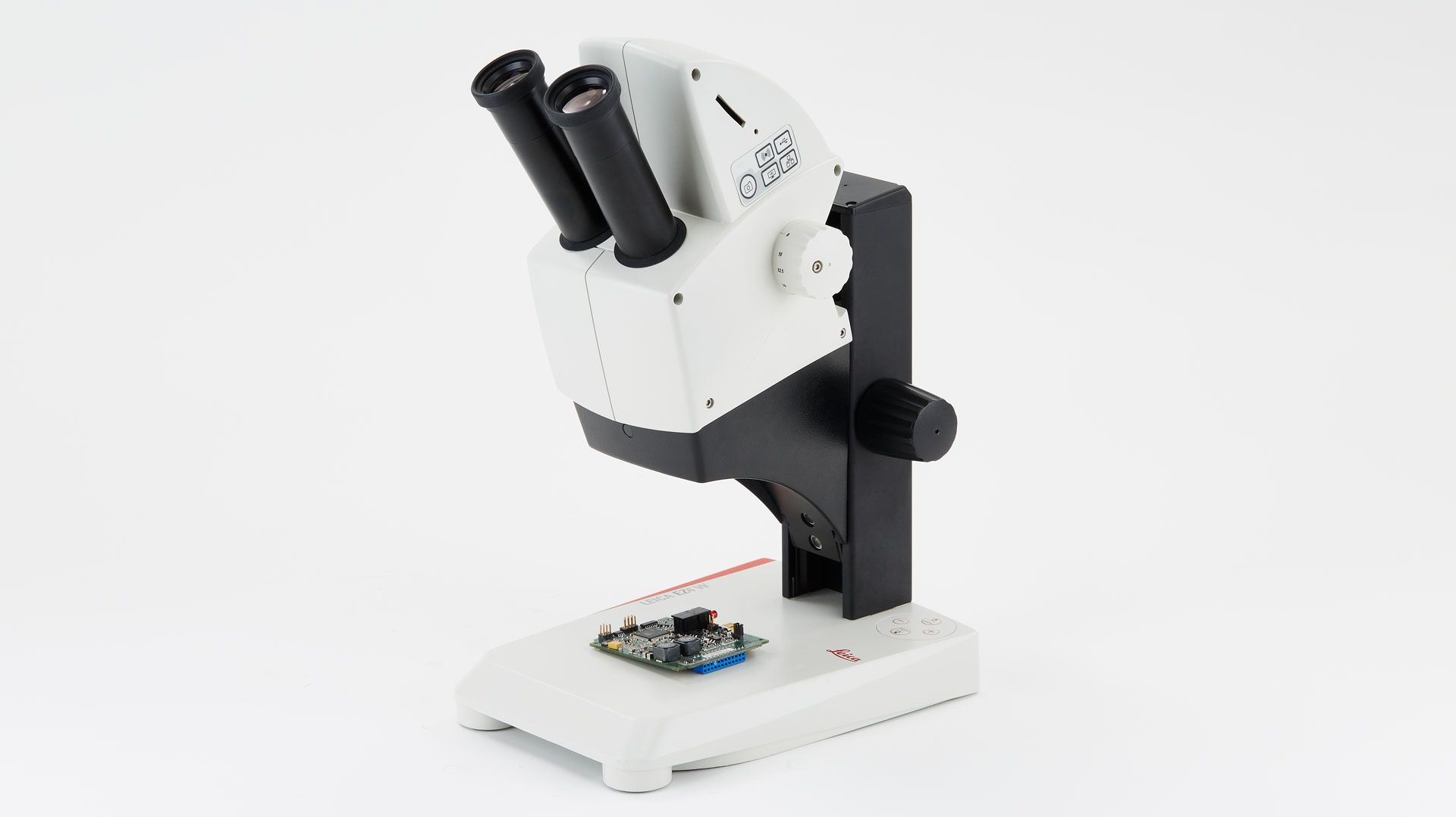

EZ4 W Stereo Microscope for Education with Integrated Wireless Camera
The EZ4 W stereo microscope seamlessly integrates cutting-edge technology with educational exploration. Boasting exceptional optics and user-friendly design, this microscope takes learning to the next level with its wireless integrated camera. The innovative wireless feature allows students to capture and share their discoveries effortlessly, enhancing the educational experience. With the EZ4 W, students can delve into the microscopic world and document their findings, making it an ideal tool for interactive and engaging classroom sessions.
Key Benefits
- Students can connect to the Leica EZ4 W either through its own internal Wi-Fi signal using Wi-Fi mode or through the facilities' network using Ethernet mode
- You don’t need any extra cables: The built-in camera is powered and controlled directly from the microscope
- Use lots of options with Leica AirLab App: It enables camera setup, annotations, measuring, image capture, and sharing to email, photo folders, or other social media connections. Leica AirLab App is available free of charge for Android and iOS devices
- Project your images: Use the HDMI port for screen projections or output to HD screens
Components
EZ4 W Stereo Microscope for Education with Integrated Wireless Camera includes: |
Quantity |
|
|---|---|---|
 |
IR Remote Control RC310450805 |
1 |
|
EZ4 W10450947 |
1 |
Specifications:
- 10x eyepieces
- 4.4:1 Zoom Stereo Microscope with built- in 5 MPixel HD digital camera and 8x-35x zoom range
- 10x/20 mm high eyepoint
- Non-removable eyepieces
- exclusive 50-75 mm Interpupillary distance
- 100 mm working distance
- Student-proof
- All-in-one plug and play design
- No removable parts
- Tool-free tension control
- Built-in 25,000 hour 6500 K Reflected 4500 K Transmitted, true daylight, constant-color temperature power LED illumination for BOTH reflected and transmitted light
- Variable light intensity control for reflected and transmitted light
- Reflected light transmitted light can and be used separately or simultaneously
- exclusive 3 directional reflected illumination (fill, top and oblique)
- Power switch located on back of stand
- exclusive auto-shutoff after 120 minutes
- Sealed stage plate
- Sealed light control panel on rear of stage area

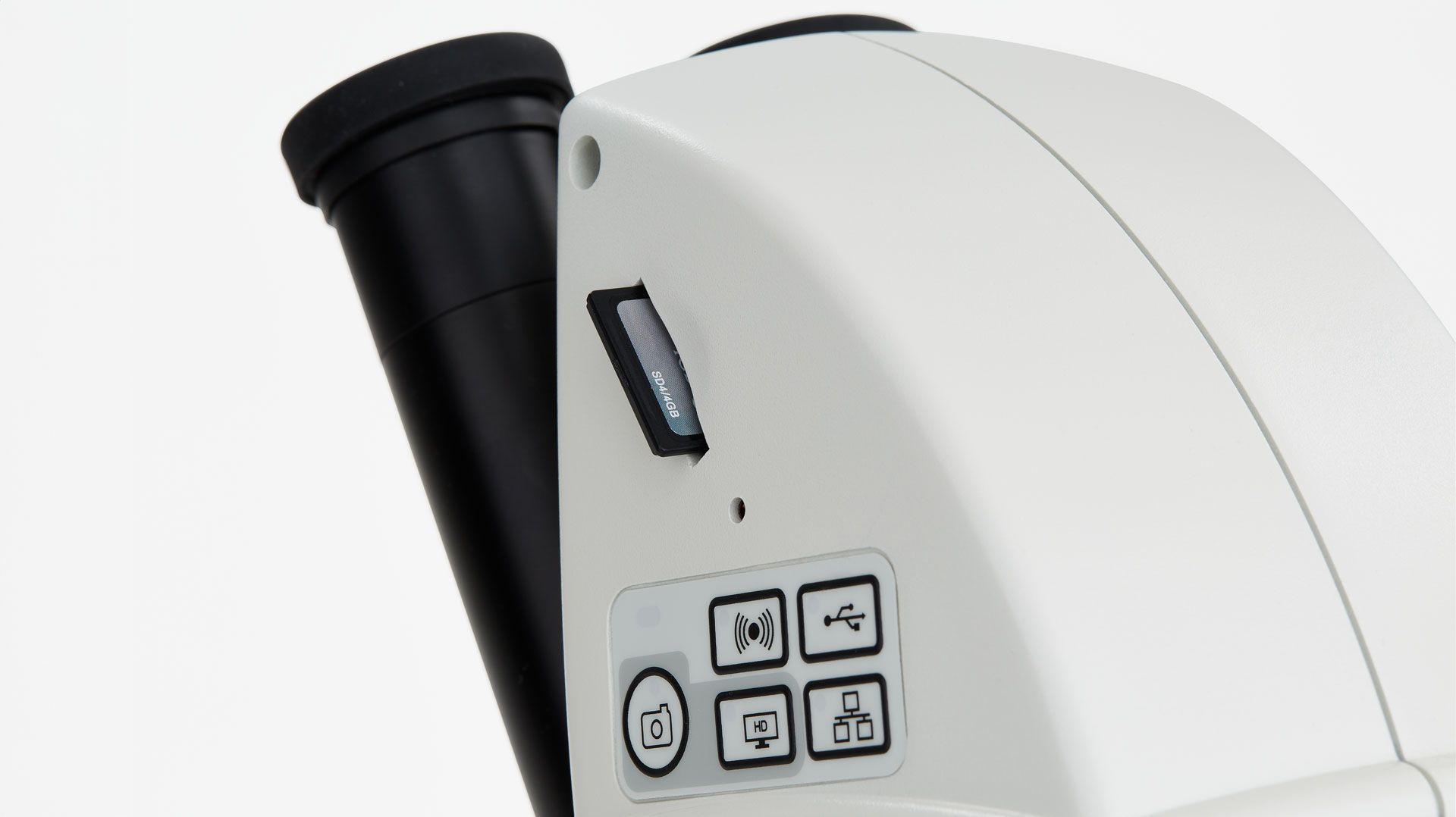

- Built in SD card slot
- Built-in universal voltage stabilizing power supply accommodates 100-240 V input, fully safety rated.

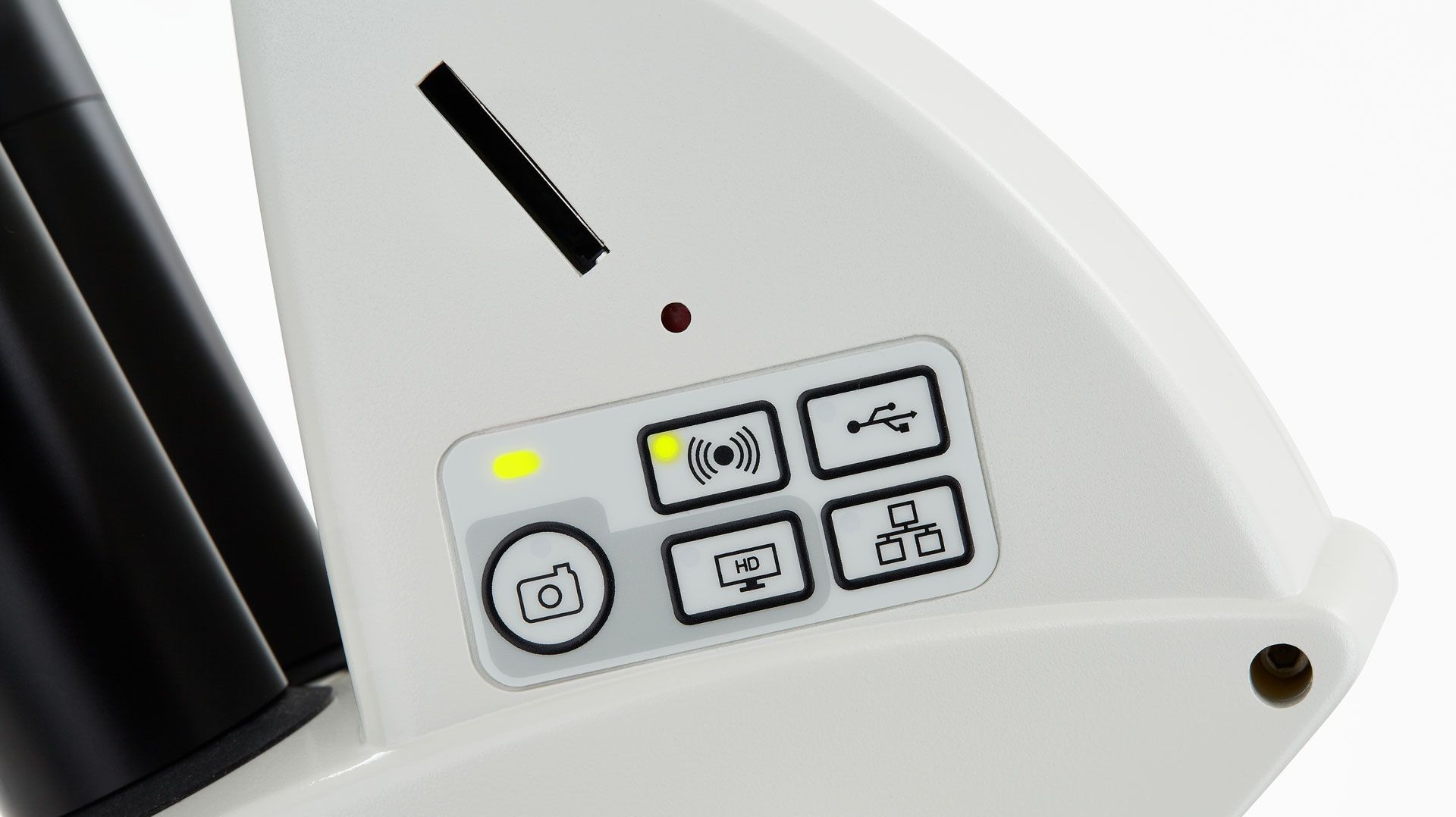

Camera functions:
- WiFi Mode for Wireless connection to Mobile Devices using Apps or connection to WiFi enabled PC using Imaging Software
- HD Mode for Live image 1920x1080p directly to an HD display or for image capture to SD card (No PC required)
- PC mode for use with PC and Imaging Software
- Network mode for direct connection using Ethernet cable
- Camera is integrated into the microscope stand
- Light distribution: 50% visual / 50% camera
- Interfaces: USB2, HDMI, Ethernet
- Maximum Image size 5.0 Mpixel (2592 x 1944)
- Complete kit contains Microscope, USB2 cable 1.8m, HDMI cable 2.5m,imaging software for basic image capture and simple measuring and annotation applications, Quck start guide, Safety Booklet, Dust Cover, Country Specific Power CordSoftware LAS EZ
EZ4 Educational stereo microscope for beginners in college and university
Stereo microscope for beginners in college and university education with 8x to 35x magnification and 7-way LED illumination
