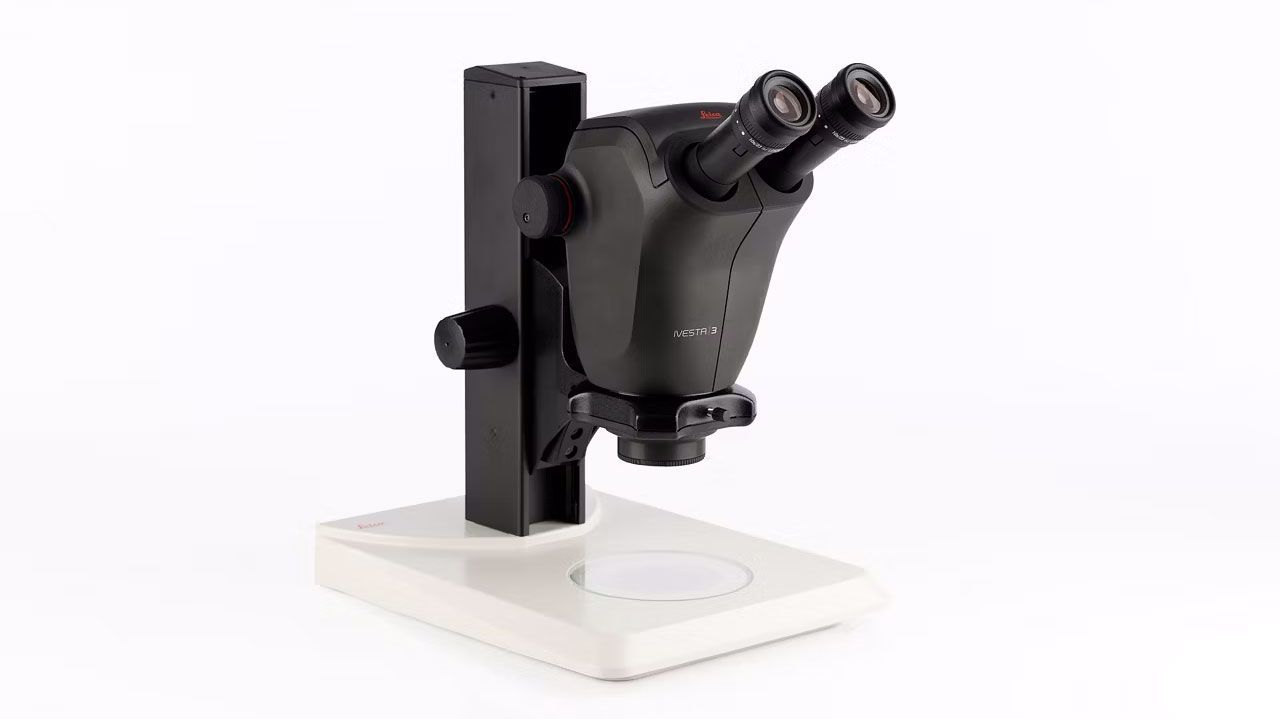

Ivesta 3 for Routine Sorting
The Ivesta 3 stereo microscope is an ideal solution for routine sorting applications. Engineered with precision optics and user-friendly features, this microscope offers exceptional clarity and ease of use. With its advanced capabilities, the Ivesta 3 streamlines routine sorting processes, providing researchers and professionals with a reliable and efficient tool for daily laboratory tasks. Elevate your workflow with the performance and convenience offered by the Ivesta 3 stereo microscope.
Loading...
Get free shippingIn the US
Online ordersNow available
Key Benefits
- For observation only, when no camera is required for documentation
- Conveniently handle samples with a large working distance of up to 122 mm
- Reveal fine details with a magnification of up to 55x and apochromatically corrected optics
- Enersight software interface can be used in multiple operation modes, such as on-screen display, mobile devices, or computer
Components
Ivesta 3 for Routine Sorting includes: |
Quantity |
|
|---|---|---|
 |
Ivesta 310450983 |
1 |
|
Eyepiece 10x/23B, adj., eyeglasses10447137 |
2 |
|
Focus column for S-Line10446339 |
1 |
|
Incident light base, small10446340 |
1 |
|
Sub base with reflector10446341 |
1 |
|
KL300 LED Bracket for routine focusdrive31120212 |
1 |
|
Universal light guide, 600 mm10446392 |
1 |
|
Dust cover antistatic, small10447039 |
1 |
|
KL300 LED fiberoptic light source w/ps31120300 |
1 |
Specifications:
- 9:1 zoom with magnification 6.1x-55x (10x eyepieces, no supplementary lens) – provides field of view up to 37.6mm for fast, accurate inspection
- 12 mm Depth of Field with Fusion Optics. Greenough optical design - provides very flat (plan) field of view and large depth of field
- Complete apochromatic corrected microscopy system - 35° angle eye tubes - for comfort and convenience
- 122 mm standard working distance (without lens shield) – ensures excellent accessibility to the samples
- Resolution up to 250 lp/mm (without supplementary lens, 10x eyepieces), maximum resolution up to 500 lp/mm (2x supplementary lens, 10x eyepieces)
- Antimicrobial PC/ABS housing with AgTreat™
- Clickstops at 10x 20x 30x 40x and 50x – inspection at specific magnification can be easily repeated
- Large range of supplementary lenses as well as eyepieces
