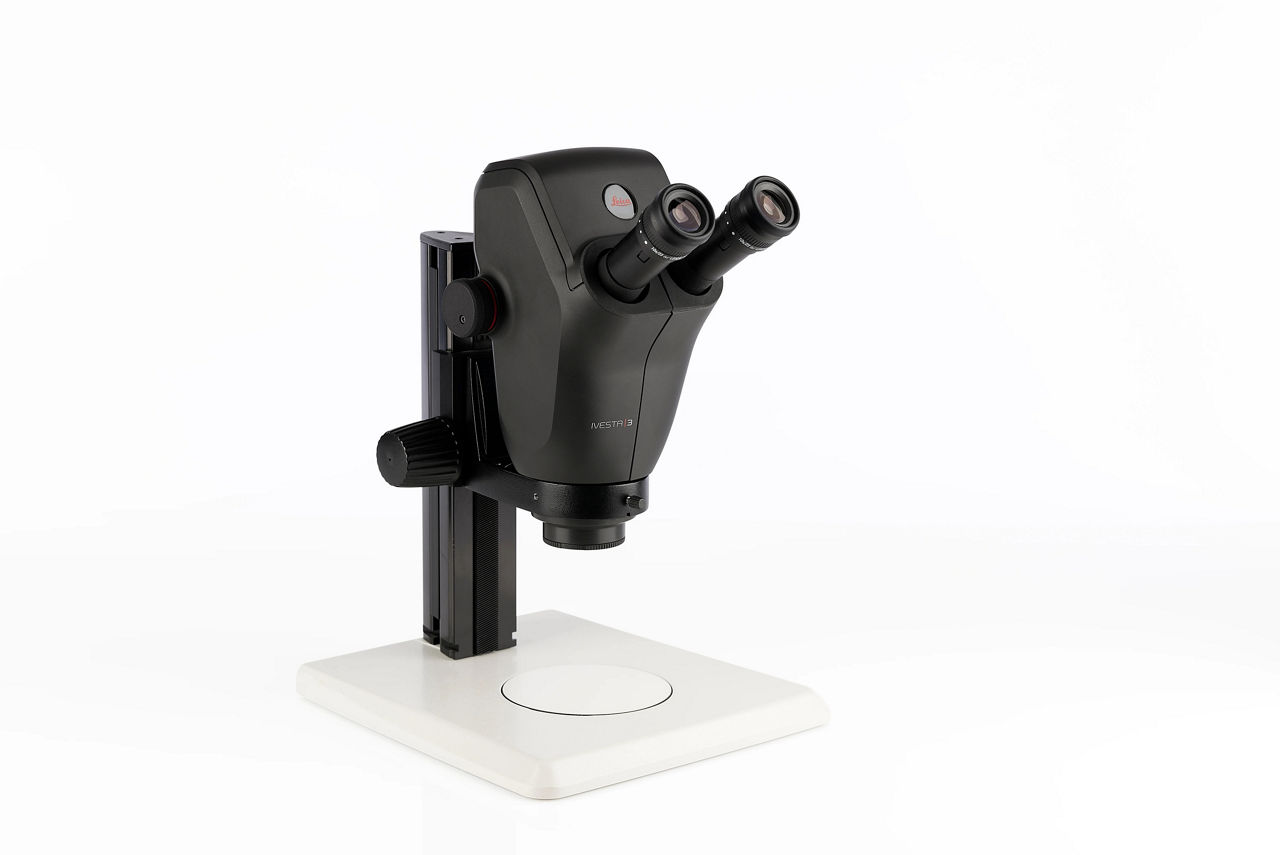

Ivesta 3 for Routine Sorting with Camera
The Ivesta 3 stereo microscope is the perfect solution for routine sorting applications, combining precision optics with user-friendly features. This microscope not only offers exceptional clarity and ease of use but also includes an integrated camera for documentation purposes. With advanced capabilities and convenient documentation features, the Ivesta 3 streamlines routine sorting processes, providing researchers and professionals with a reliable and efficient tool for daily laboratory tasks. Elevate your workflow and capture important moments seamlessly with the performance and convenience offered by the Ivesta 3 stereo microscope and its integrated camera for documentation.
Loading...
Get free shippingIn the US
Online ordersNow available
Key Benefits
- Provides the flexibility to add a camera if needed, turning it into a digital microscope solution
- Achieve optimal 3D perception of the sample thanks to the FusionOptics technology
- Discuss quickly opinions and review findings with a fast live image display on a monitor
- Visualize sample movements on the monitor clearly and smoothly thanks to the high frame rate (up to 60 fps)
Components
Ivesta 3 for Routine Sorting with Camera includes: |
Quantity |
|
|---|---|---|
 |
Ivesta 3 (Integrated camera)10450981 |
1 |
|

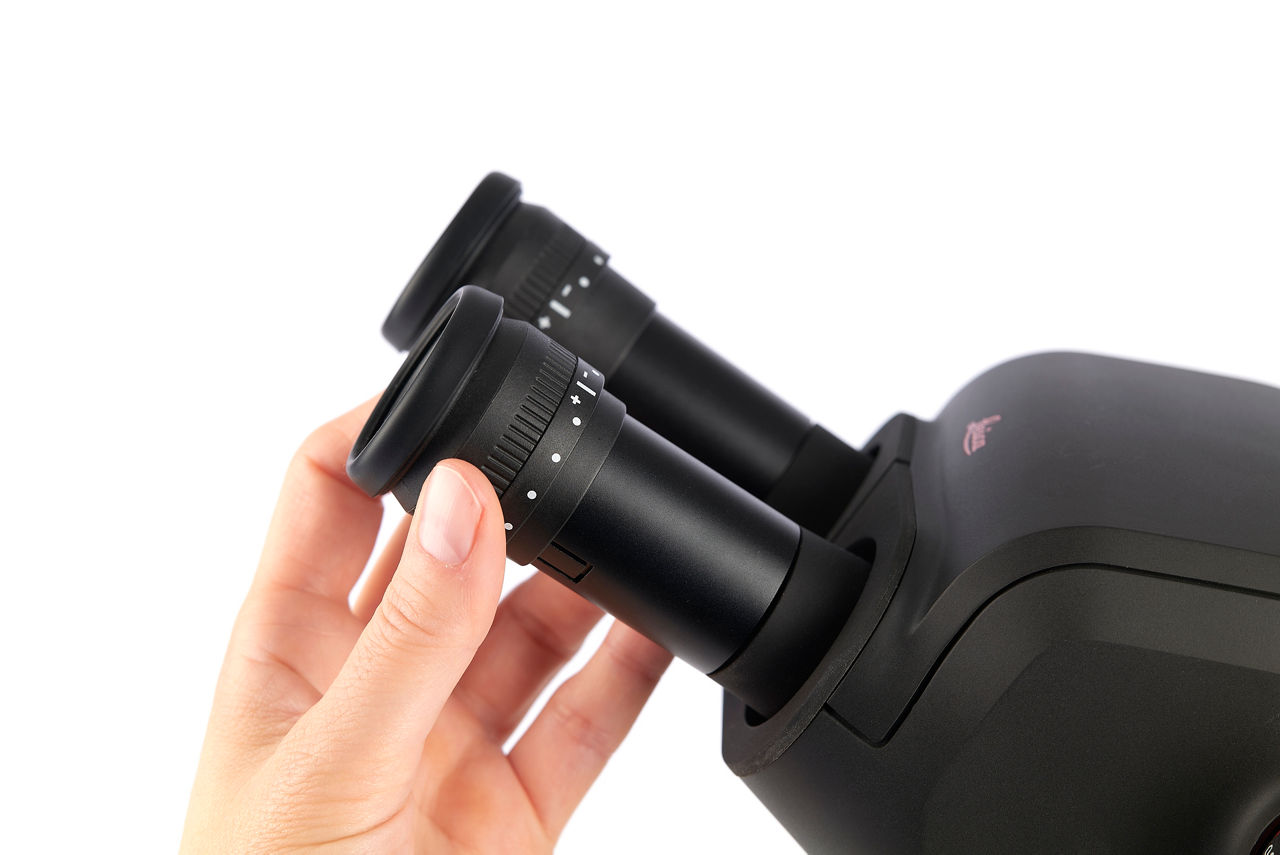

Eyepiece 10x/23B, adj., eyeglasses10447137 |
2 |
|
Focus column for S-Line10446339 |
1 |
|
Incident light base, small10446340 |
1 |
|
Sub base with reflector10446341 |
1 |
|
KL300 LED Bracket for routine focusdrive31120212 |
1 |
|
Universal light guide, 600 mm10446392 |
1 |
|
Dust cover antistatic, small10447039 |
1 |
|
KL300 LED fiberoptic light source w/ps31120300 |
1 |
|
Power cable, 2 m, USA10445661 |
1 |
Specifications:
- 9:1 zoom with magnification 6.1x-55x (10x eyepieces, no supplementary lens) – provides field of view up to 37.6mm for fast, accurate inspection
- 12mm Depth of Field with Fusion Optics. Greenough optical design - provides very flat (plan) field of view and large depth of field
- Complete apochromatic corrected microscopy system - 35° angle eye tubes - for comfort and convenience
- 122 mm standard working distance (without lens shield) – ensures excellent accessibility to the samples

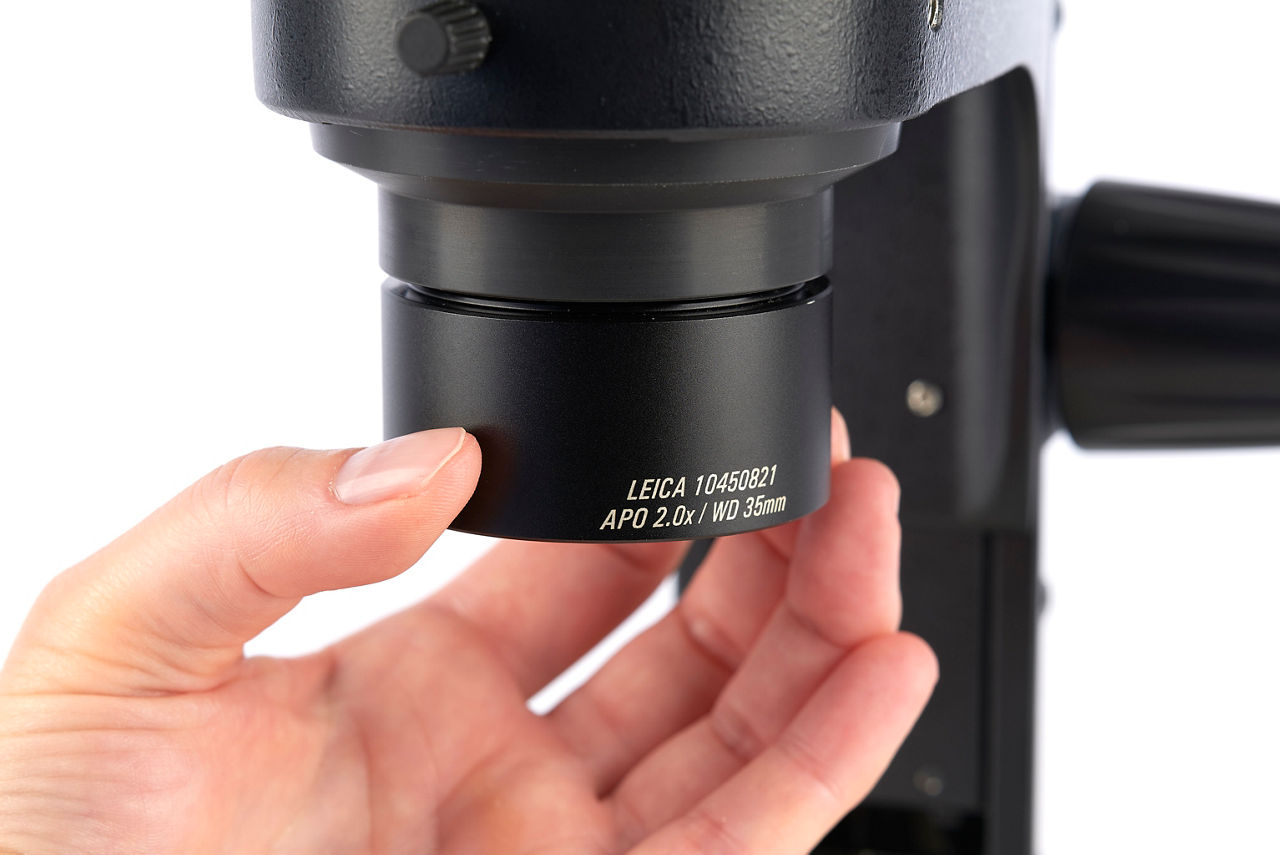

- Resolution up to 250 lp/mm (without supplementary lens, 10x eyepieces), maximum resolution up to 500 lp/mm (2x supplementary lens, 10x eyepieces)

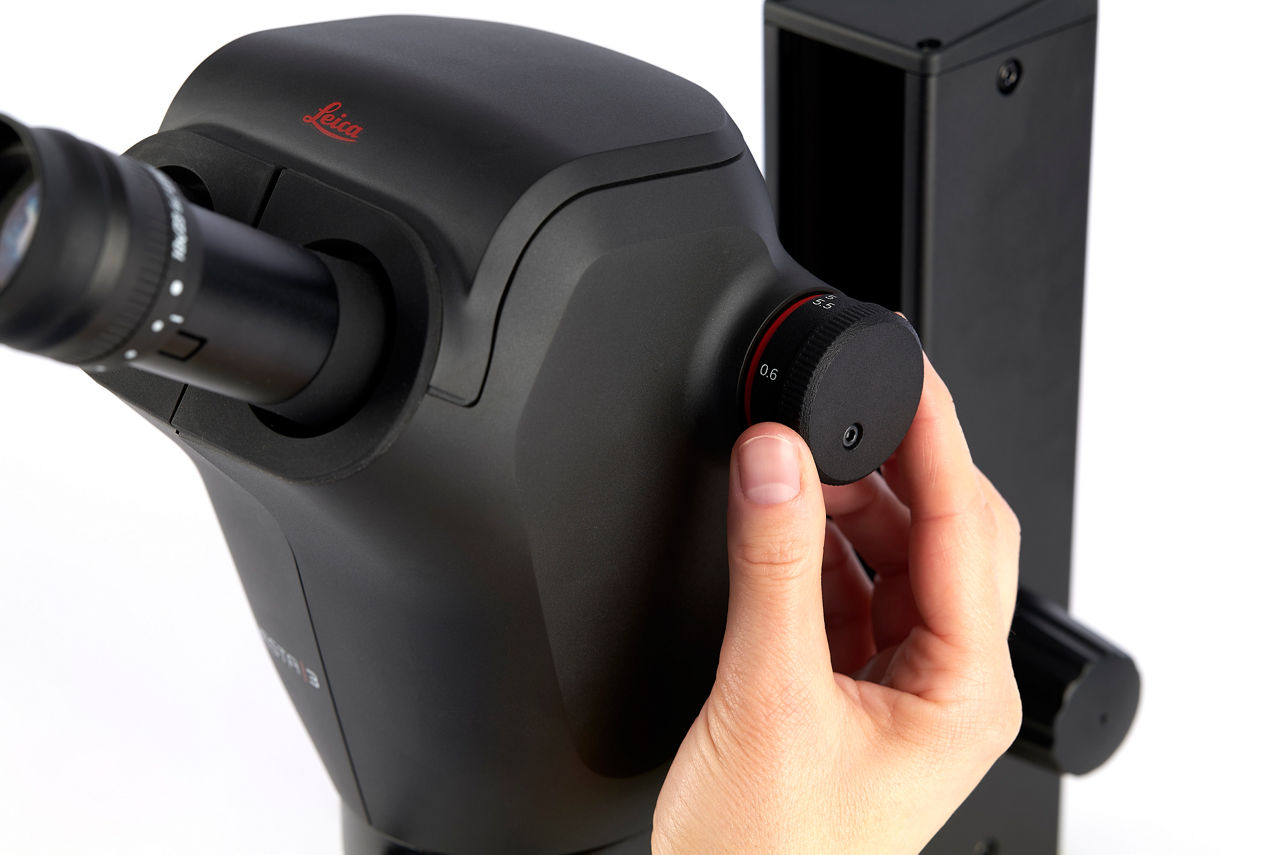

- Fully encoded zoom – inspection at specific magnification can be easily repeated
- Antimicrobial PC/ABS housing with AgTreat™

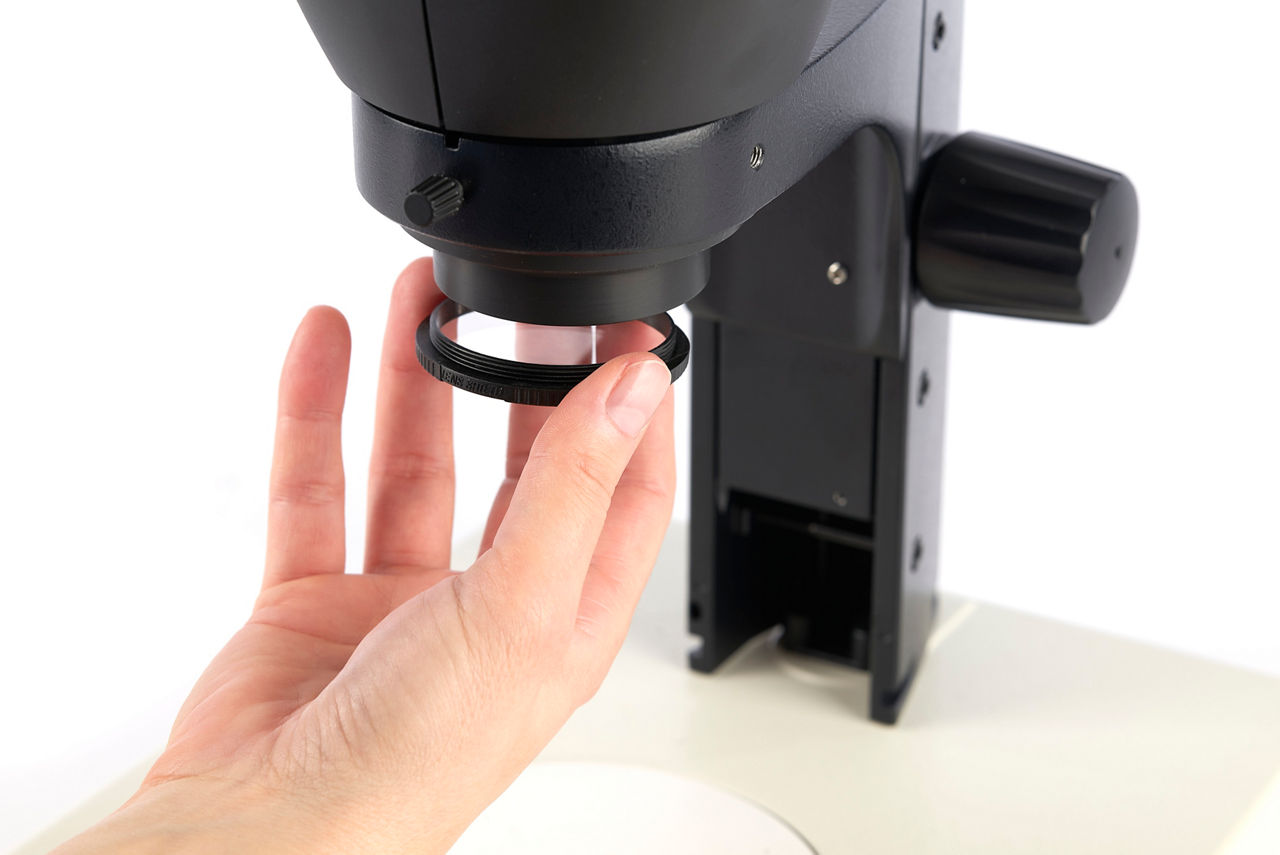

- Large range of supplementary lenses as well as eyepieces
- Adapt the optical performance to the application requirements
- Integrated digital color camera with CMOS sensor
- Possible to operate with 4k HDMI monitor using Enersight OSD
- High definition live image 4k, 60fps, HDR
- JPG images with up to 12 MP
- Full HD MJPG Video recording with 30 fps
- Camera control via Windows using Enersight Desktop or via tablet/smartphone via Enersight Mobile application
- Capture images directly to USB Stick
- USB-C connection to PC for Enersight Desktop
- Delivered accessories: HDMI Cable, USB C-A cable, external power supply (without power cord), USB stick.
