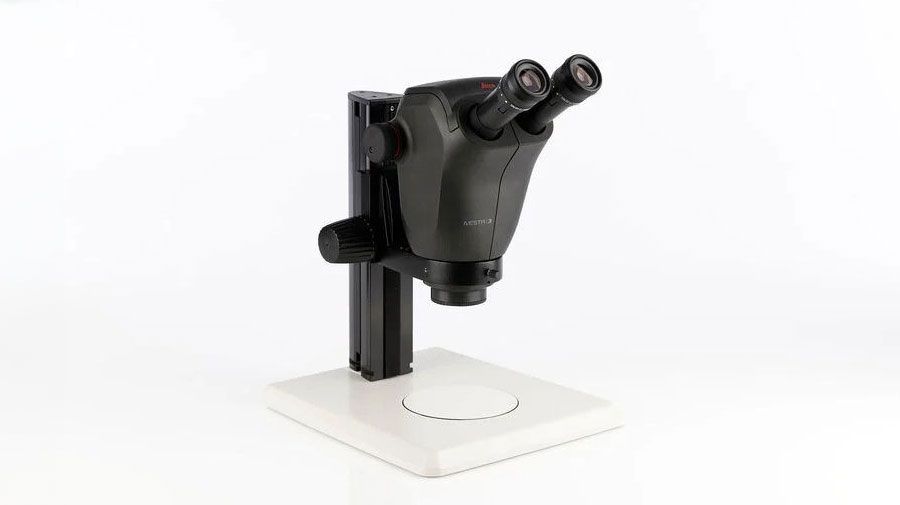

Ivesta 3 Stereo Microscope for Inspection
The Ivesta 3 stereo microscope is a precision instrument engineered for meticulous inspection and rework tasks. Designed for professionals, this microscope offers superior optics, ensuring unparalleled clarity in detailed work. Its ergonomic design and advanced features make it an indispensable tool for professionals engaged in inspection and rework applications. Elevate your workmanship with the Ivesta 3, a reliable stereo microscope crafted to enhance accuracy and efficiency in tasks requiring meticulous attention and precision.
Loading...
Get free shippingIn the US
Online ordersNow available
Key Benefits
- With the Ivesta 3 Greenough stereo microscopes, you can obtain results you can rely on, in compliance with standard procedures
- For inspection and rework only, but no camera for documentation is needed
- For tasks which require a 3D view of the sample, the optics with eyepieces enable an optimal 3D perception thanks to FusionOptics
Components
Ivesta 3 Stereo Microscope for Inspection includes: |
Quantity |
|
|---|---|---|
 |
Ivesta 310450983 |
1 |
|
Eyepiece 10x/23B, adj., eyeglasses10447137 |
2 |
|
Power cable, 2 m, USA10445661 |
1 |
|
Leica LED250010450655 |
1 |
|
Dust cover antistatic, small10447039 |
1 |
Specifications:
- 9:1 zoom with magnification 6.1x-55x (10x eyepieces, no supplementary lens) – provides field of view up to 37.6mm for fast, accurate inspection
- 12 mm Depth of Field with Fusion Optics. Greenough optical design - provides very flat (plan) field of view and large depth of field
- Complete apochromatic corrected microscopy system - 35° angle eye tubes - for comfort and convenience
- 122 mm standard working distance (without lens shield) – ensures excellent accessibility to the samples
- Resolution up to 250 lp/mm (without supplementary lens, 10x eyepieces), maximum resolution up to 500 lp/mm (2x supplementary lens, 10x eyepieces)
- Antimicrobial PC/ABS housing with AgTreat™
- Clickstops at 10x 20x 30x 40x and 50x – inspection at specific magnification can be easily repeated
- Large range of supplementary lenses as well as eyepieces
- LED2500, LED stand with incident and transmitted light, For S-M- and DMS-Series 6100K colour temperature 4-point ring light for high brightness 3-point arc light for oblique illumination.
- Transmitted light with centered LED for contrast enhancing integrated power supply: 100 - 240V
- Dimension of Base : 331x257 mm
- Height of base: 35 mm
- Adjustable focus torque
Ivesta 3 Greenough Stereo Microscopes
Greenough Stereo Microscopes. Optimize visual inspection and rework while achieving reliable, consistent results.
