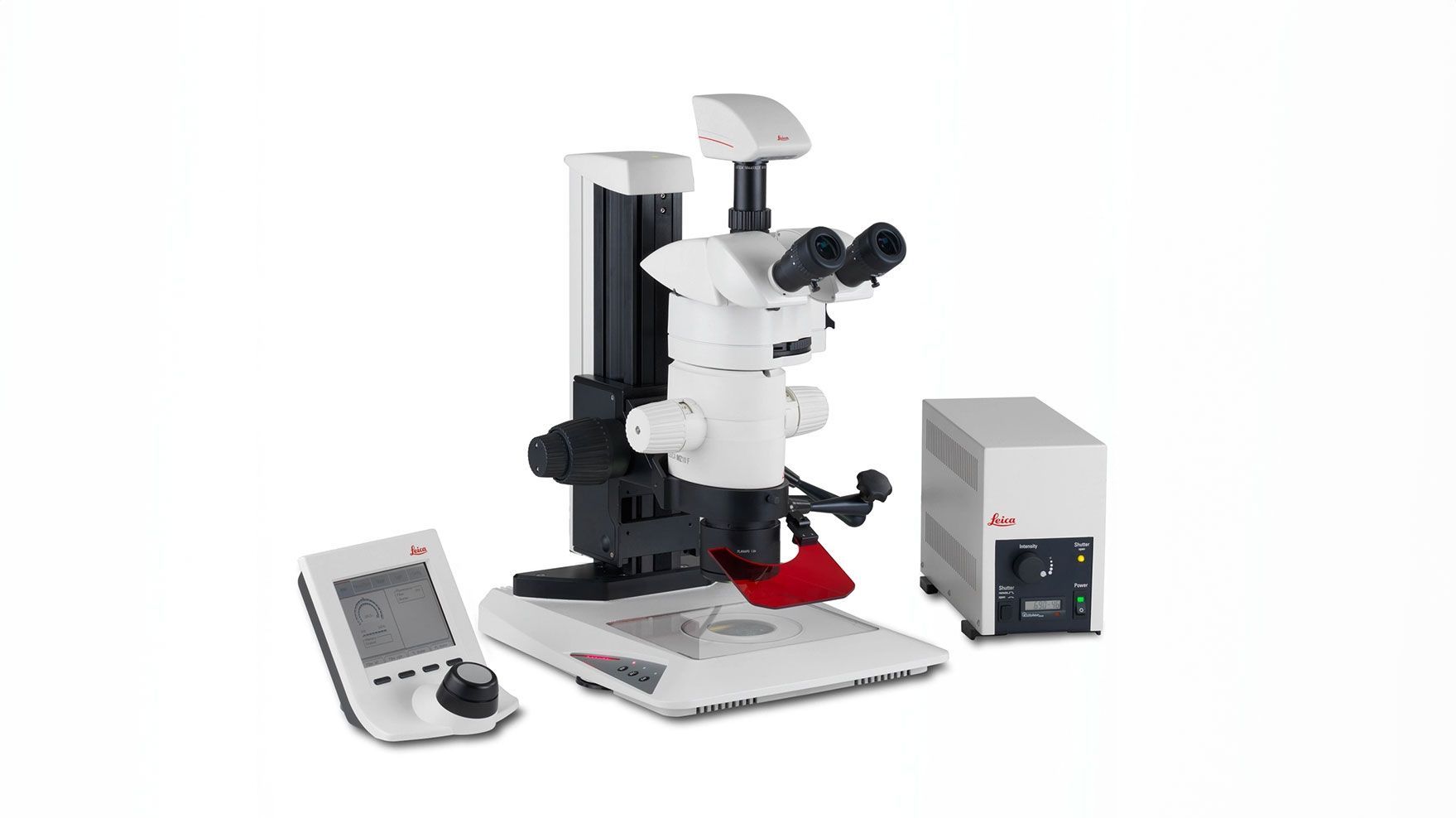

MZ10F for Fluorescence Sorting
The MZ10-F stereo microscope is a cutting-edge instrument designed for precision and clarity in microscopic observation. With its advanced optics and ergonomic design, this microscope is particularly well-suited for cell sorting applications. Delivering exceptional image quality and versatility, the MZ10-F enhances the efficiency and accuracy of cell sorting processes, making it an indispensable tool for researchers and professionals in the field of life sciences.
Loading...
Get free shippingIn the US
Online ordersNow available
Key Benefits
- 10:1 zoom range with high numerical aperture of 0.125 for excellent representation of small structures
- TripleBeam™, Leica’s patented separate beam path for extremely intense fluorescence illumination
- FLUOIII™, Leica’s patented, 4-position, rapid change filter system
- Wide range of standard filters and availability of custom filters for almost any fluorescence technique
- Comprehensive user protection against UV radiation
- Innovative contrast possibilities with Leica’s high-performance transmitted light bases
Components
MZ10F for Fluorescence Sorting includes: |
Quantity |
|
|---|---|---|
 |
Leica MZ10 F optics carrier10450103 |
1 |
|
Eyepiece 10x/23B, adj., eyeglasses10447137 |
2 |
|
Focus drive coarse/fine 420mm M-series10450504 |
1 |
|
Microscope carrier for MZ-Series10450104 |
1 |
|
Dust cover (40 x 35 x 75 cm), antistatic10450287 |
1 |
|
Power cable, 2 m, USA10445661 |
3 |
|
TL3000 Ergo10450690 |
1 |
|
ST Adapter column on TL Bases10450242 |
1 |
|
Inc. light base, large w. AntiShock feet10450049 |
1 |
|
Objective Planapo 1.0x M-series10450028 |
1 |
|
Filter set ET GFP - MZ10F10450588 |
1 |
|
Leica LED5000 SLI10450548 |
1 |
|
Clamp-combi light guide - highend M-ser10450205 |
1 |
|
Coupling for fluid light guide, EL600010447399 |
1 |
|
pE 300 white MB11504264 |
1 |
|
Inclined binocular tube 45° M-Series10450252 |
1 |
|
Fluid light guide Ø3x2000mm / series 38011504269 |
1 |
Leica MZ10F for Fluorescence Sorting

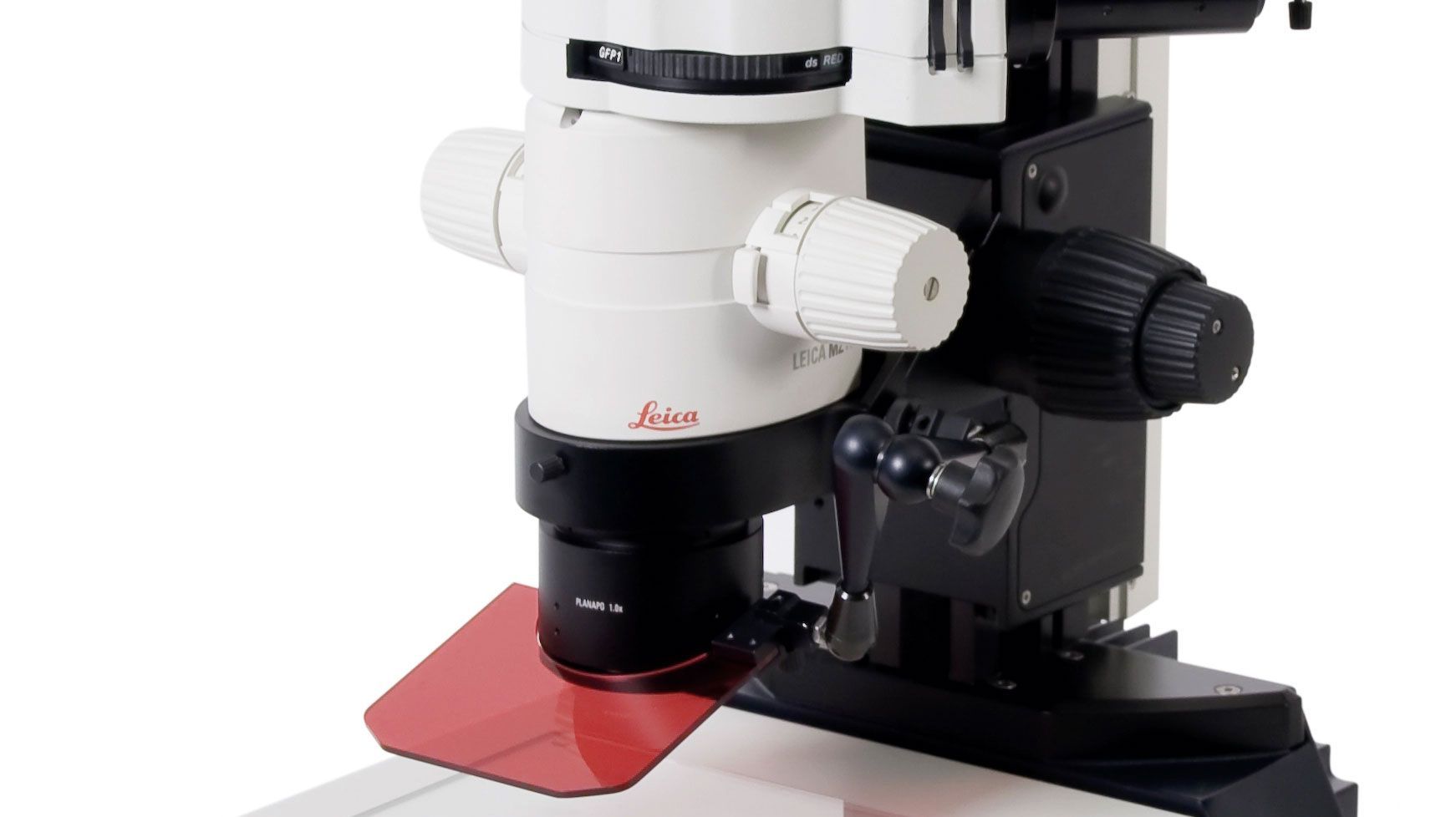

Leica MZ10 F optics carrier with zoom magnification changer 10:1
Specifications:
- Magnification range: 8x-80x (1.0x objective, 10x eyepieces)
- Click stop zoom settings
- Triple Beam TM: Separate illumination beam path for fluorescence
- Four position fluorescence filter turret
- Objective thread M65
Leica MZ10F for Fluorescence Sorting Includes:
- 10450103 - Leica MZ10 F optics carrier
- 10447137 - Eyepiece 10x/23B, adj., eyeglasses x2
- 10450043 - Trinocular tube 100% Mseries
- 10450504 - Focus drive coarse/fine 420mm M-series
- 10450104 - Microscope carrier for MZ-Series
- 10450287 - Dust cover (40 x 35 x 75 cm), antistatic
- 10445661 - Power cable, 2 m, USA x3
- 10450690 - TL3000 Ergo
- 10450242 - ST Adapter column on TL Bases
- 10450049 - Inc. light base, large w. AntiShock feet
- 10450028 - Objective Planapo 1.0x M-series
- 11504264 - pE 300 white MB LED Fluorescence Light Source
- 10450588 - Filter set ET GFP - MZ10F
- 10450548 - Leica LED5000 SLI
- 10450205 - Clampcombi light guide highend
- 10447399 - Coupling for fluid light guide, EL6000
MZ10 F Modular Stereo Microscope
Modular stereomicroscope for fluorescent imaging
