LED Fluorescence Light Sources
Bright, stable, and versatile illumination
Great imaging starts with a bright, stable, and versatile way of illuminating your sample. With our new LED series, you will find the right light source for your fluorescence application.
Whether it’s routine cell-culture work, imaging tissue sections, or performing advanced imaging experiments, it’s time to switch from your old metal-halide lamp to a state-of-the-art LED light source.
Your Benefits
- No service needed thanks to a long LED lifetime
- Work safely with an environmentally friendly mercury-free LED light source
- More stable light output

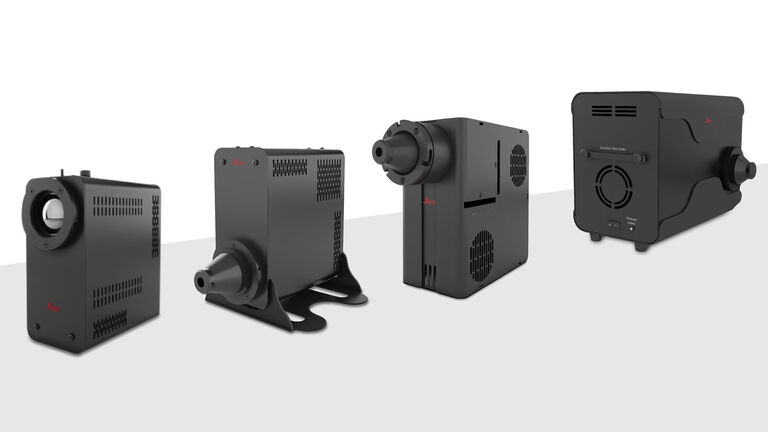

Choose the light source suitable for your needs.
pE-300lite SB
The pE-300lite SB light source is ideally suited for regular routine fluorescence applications offering intense, broad-spectrum LED illumination. Spectral coverage is from the UV (DAPI excitation) to the red region (Cy5 excitation). It is not suitable for confocal applications.
Your Benefits
- Work safely with a mercury-free solid-state LED light source
- Flexible excite fluorochromes from 365-650nm
- Operation is by a remote manual control pod with instant on/off and control of irradiance from 0-100%
pE-300white MB LLG
The pE-300white MB LLG is a versatile solid-state light source that provides 3 individually controllable LEDs in the 400-650 nm range. It can be combined with a variety of filter sets and is the right choice for multi-color fluorescence microscopy and time-lapse experiments. The light source covers the excitation bands of a wide range of fluorophores including DAPI, FITC, GFP, TRITC, DsRed, Texas Red, Cy5 and more. Operation is via a manual control pod with instant on/off and irradiance control from 0-100%. Remote control is available via USB or global TTL trigger.
Your Benefits
- Work safely with a mercury-free solid-state LED light source
- Flexibly excite fluorochromes from 400-650 nm
- Operation is by a remote manual control pod with instant on/off and control of irradiance from 0-100%
- Individual LEDs can also be selected
pE-400max MB LLG
The pE-400max MB LLG light source is the most advanced illumination system of the 400 series. Four powerful LEDs can be individually controlled via software, TTL, LASX GUI, and manual control pod. The pE-400max MB is for demanding everyday fluorescence microscopy and optogenetics applications using the most popular fluorophores, ranging from DAPI through YFP to Cy5.
Your Benefits
- Work safely with a mercury-free solid-state LED light source
- Flexibly excite fluorochromes from 400-650 nm
- Operation is by a remote manual control pod with instant on/off and control of irradiance from 0-100%
- Individual LEDs can also be selected
- Switching off of individual channels of the 4 LEDs is controlled via TTL triggering
pE-800 MB LLG
The pE-800 MB LLG light source provides eight individually controllable LEDs and TTL switching. It delivers broad spectral coverage from 400-740 nm for use with fluorophores ranging from DAPI to Cy7.
Your Benefits
- Work safely with a mercury-free solid-state LED light source
- Select any of the 8 channels simultaneously at 100%
- Flexibly excite fluorochromes from 400-740 nm
- Operation via LAS X, instant on/off, and control of irradiance from 0-100%
- Individual LEDs can also be selected
- Individual LED channel switching is controlled via TTL triggering

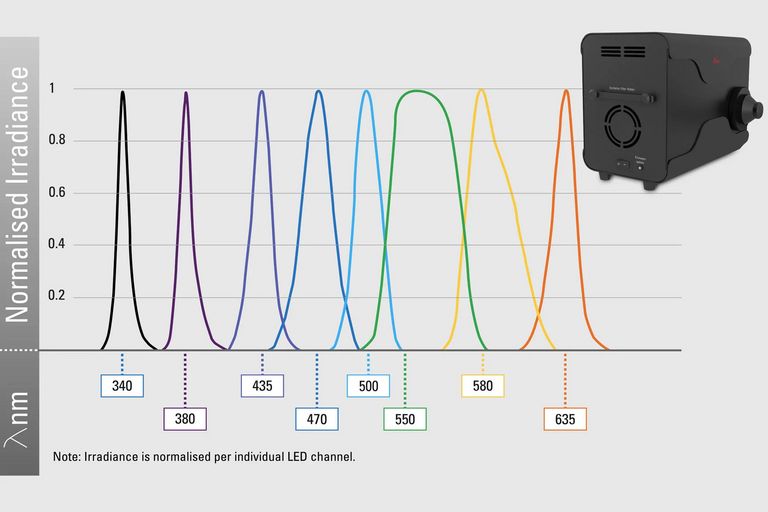

pE-800fura LLG
The pE-800fura LLG light source offers a comprehensive calcium imaging system. It also enhances a range of applications from Ca++ applications, pH monitoring and optogenetics to everyday fluorescence microscopy, combining lightning-fast switching with eight individually controllable channels.
This light source delivers broad spectral coverage from 340-635 nm for use with fluorophores ranging from Fura, DAPI to Cy7.
Your Benefits
- Work safely with a mercury-free solid-state LED light source
- Select any of the 8 channels simultaneously at 100%
- Flexibly excite fluorochromes from 340-635nm and Ca++
- Operation via LAS X, instant on/off, and control of irradiance from 0-100%
- Individual LEDs can also be selected
