Automotive and electronics suppliers and manufacturers can ensure better product performance and lifetime through efficient and reliable technical cleanliness by analyzing particle quantity, size, and composition. Cleanliness analysis systems from Leica Microsystems offer optimized software and a unique 2-in-1 solution for visual and chemical analysis.
Your benefits
Increase throughput by analyzing more in less time.
Obtain more insights on the source of particles for better risk assessment and more confident decisions.
Meet all your current needs and be prepared for changing requirements.
Cleanliness analysis system
At Allinox, an aerospace company, we have the Cleanliness Analysis Advanced System and use it for analyzing difficult particles on critical parts. We use this solution to analyze particles as small as 5 µm in size, measure them accurately in 3 dimensions, and distinguish reflective from non-reflective ones in accordance with aerospace standards, e.g., P4TF21. Since we have this solution, it has helped us to increase the efficiency of our cleanliness analysis and significantly improve the quality and reliability of our products.
Fast-forward to your results
Ensure you get your cleanliness analysis results more efficiently:
Save 30% of your filter sample scanning time for particle sizes between 5 - 10 micrometers.
For particle sizes over 25 micrometers, you can scan particles on filter samples 3 x faster.

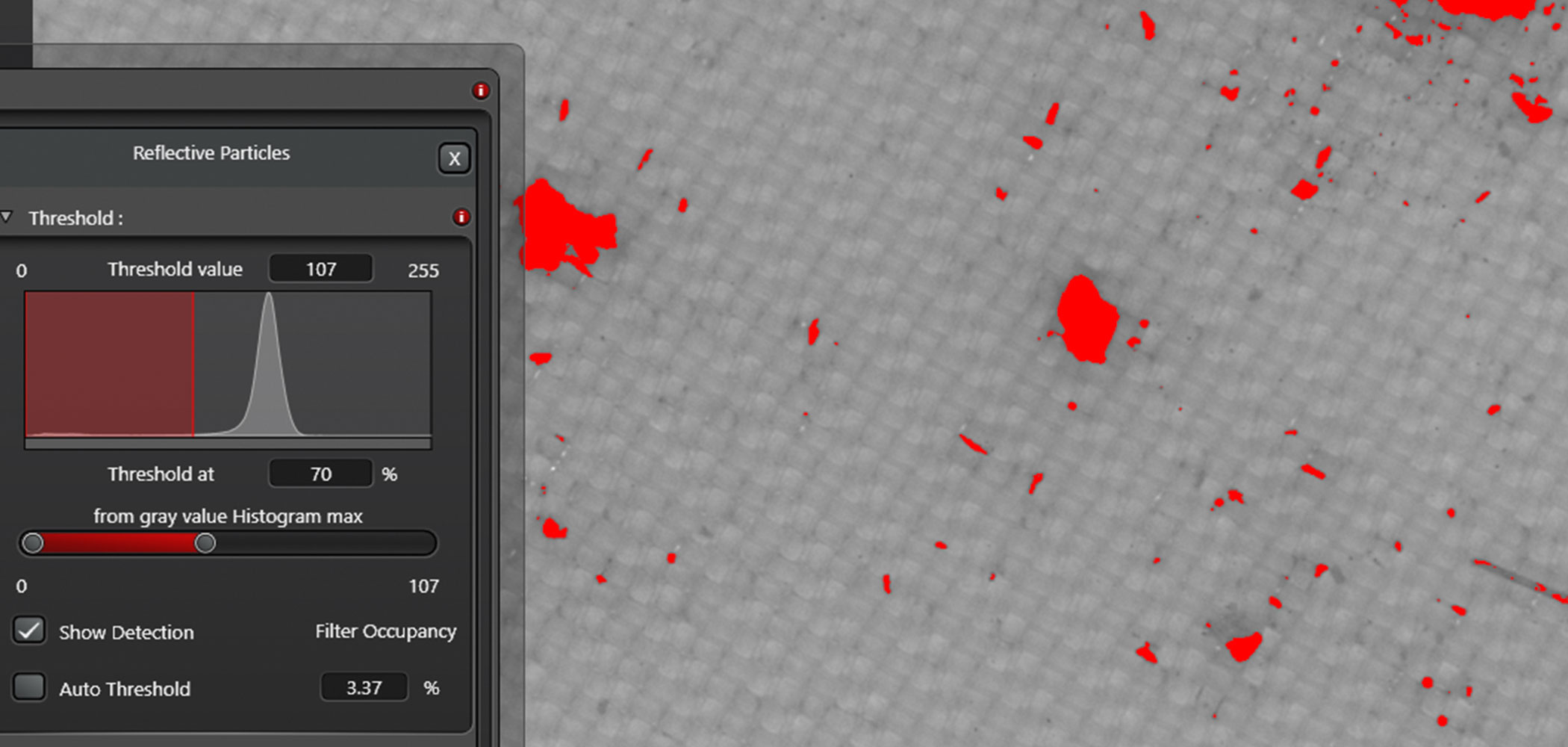

Identify the reflective particle on your filter sample faster and calculate the circular diameter of irregularly shaped particles with improved speed thanks to optimized algorithms.
Further simplify your workflow by using the automated particle analysis over multiple filter samples and save time by analysing more than one filter at a time per batch.
DM6 M microscope with K3 camera and Cleanliness Expert software.
Get more insights on particles
Identify "killer particles" more reliably.
The harder and larger a particle is, the higher its damage potential.
Automatically differentiate between metallic and non-metallic particle types.
Easily distinguish the difference between particles and fibers.
Measure particle height with automated software tools.
Get a laser focus on the source of contamination.
Perform visual and chemical analysis simultaneously with a 2-in-1 solution, combining Cleanliness Expert software and Laser Induced Breakdown Spectroscopy (LIBS).
Complete your entire analysis workflow on a single instrument.
Eliminate time wasted on sample transfer and additional sample preparation.
Save 90% of the time taken to determine microstructure composition*.
* compared to inspection with conventional SEM/EDS (scanning electron microscopy and energy dispersive spectroscopy)
Work flexibly today and in the future
Meet your requirements today
Comply with international and regional standards, including ISO 16232 and VDA 19 for automotive, ISO 4406 and DIN 51455 for hydraulic fluids and oil, and USP 788 for pharmaceutical manufacturing. You can also define your own standards to perform analyses in accordance with organizational norms and processes.
A path to meet your future needs
Advance to simultaneous visual and chemical particle analysis by upgrading to a 2-in-1 solution. The DM6 M microscope can be easily retrofitted with Laser Induced Breakdown Spectroscopy (LIBS).
You can also adapt your cleanliness analysis system for visualizing smaller particles with higher magnification objectives.
Cleanliness analysis performed with a LIBS system.
Find the right solution for you
Show details

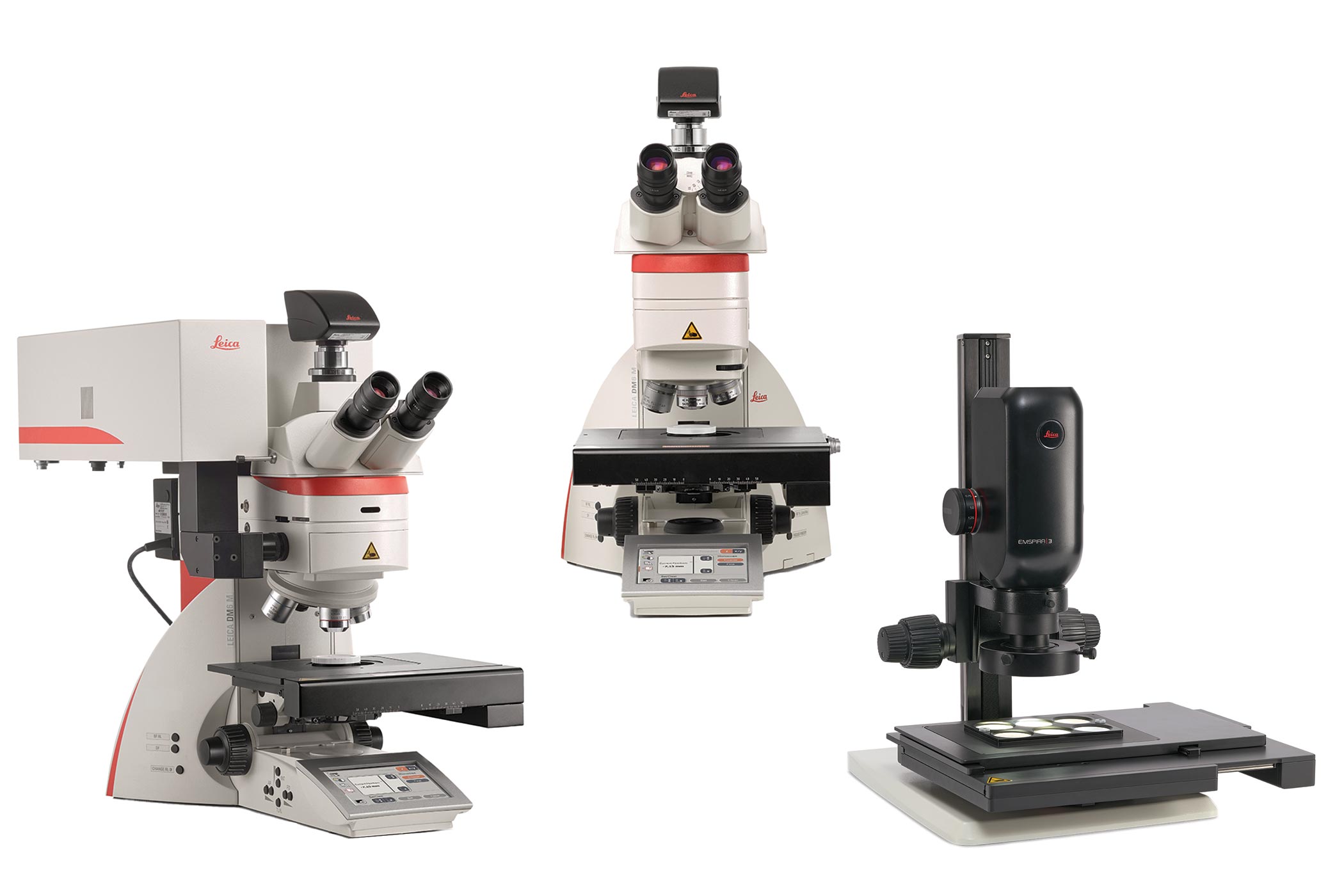

The right cleanliness analysis system for your needs
Perform more efficient and reliable particle counting and classification according to international and regional standards with a selection of dedicated configurations tailored to meet your specific requirements.
Find the right solution for you
Please answer a few short questions so we can recommend the best configuration that fits your needs.
