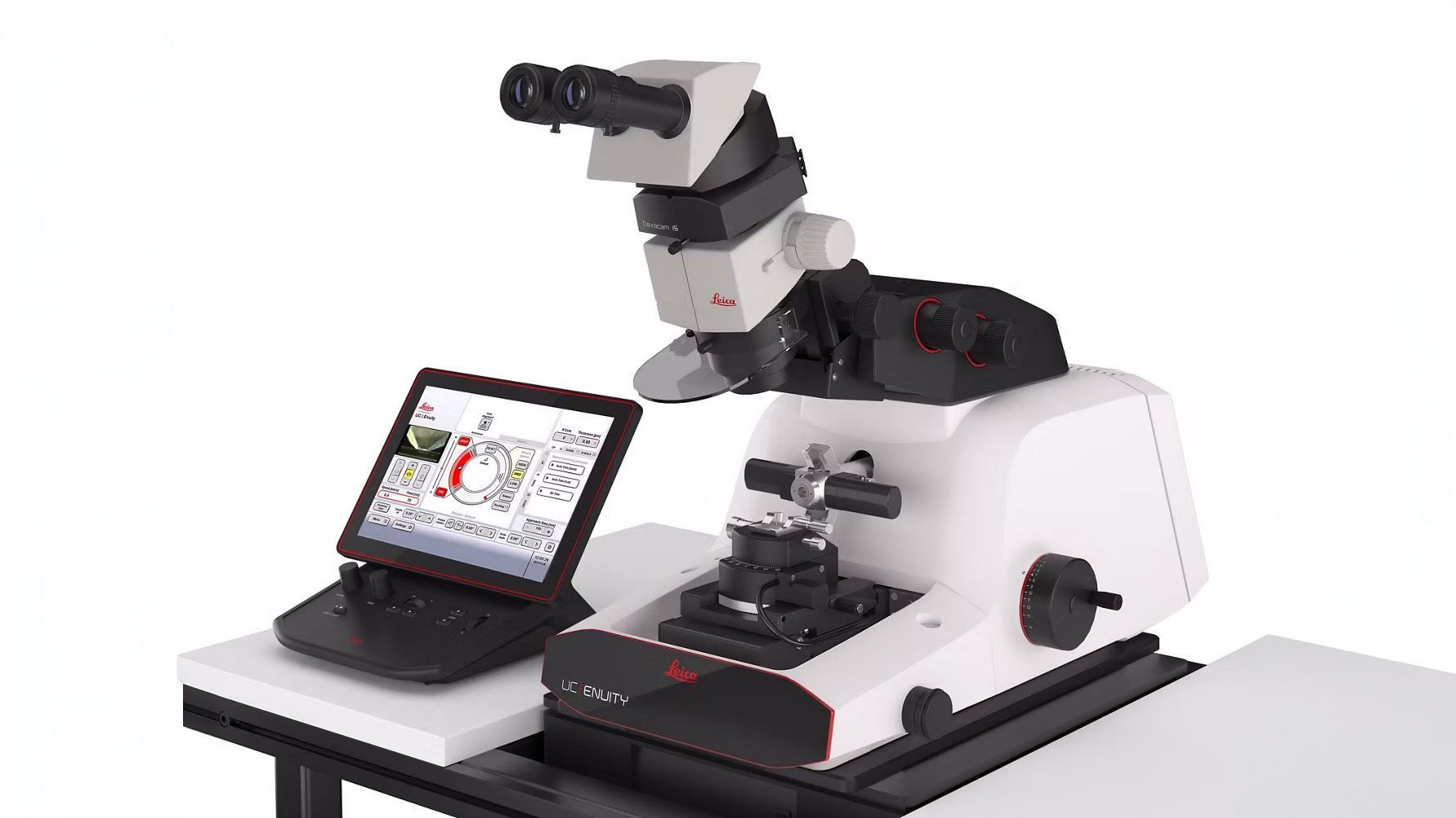

UC Enuity Cryo

UC Enuity - Basic instrument M80;

Consisting of:

Base Unit with Manual Segment Arc and Knife Block, Control and Processing Unit, Software, Accessories.

Base Unit:

Housing and rigid mechanics, built-in antivibration system, segment arm, drive unit, control electronic, stable microscope carrier for sectioning and observation.

Segment Arm movement:

• Cutting transmission: vibration decoupled gravity stroke
• Cutting window setting: 15 mm total range
• Cutting speed control: from 0.04 - 100 mm/s

Specimen advance control:

0 to 100 in steps of 1 nm;

100 to 2500 nm in steps of 10 nm;

• Return speeds: 10, 30 and 50 mm/s
• Total specimen advance: 200 µm

Knife Stage dual automatic advance system:

• 10 mm knife N-S movement range (motorized)
• 25 mm E-W movement range
• E-W movement control: continuous with wheel or 100 µm distance with step button
• N-S movement control: continuous with wheel or adjustable (0.1-15 µm) with step button

Specimen advance control with knife stage:

100 nm to 2500 in steps on 100 nm

2500 to 50000 nm in steps of 500 nm

Manual Segment arc including:

• Self locking precision drives with ± 22° eucentric sample tilt
• 360° rotation of specimen with self locking drive

Manual Knife block including:

• 360° rotatable, dual sided self locking precision drive
• ±30° graduation, clearance angle adjustment with 1° scale from -2° to over 14°
• Knife holder for 6 – 12 mm glass and diamond knives

Carrier for Leica Stereomicroscope M80:

• Eucentric movement of the stereo carrier: + 5°/ - 8
• Defined knife positions of stereo carrier: for glass and diamond knifes
• 100 mm N-S movement of stereo carrier

Illumination:

• Top-, Bottom- and Transillumination with controllable brightness for specimen and knife area observation

Compatible with Leica UC Enuity Cryochamber for cryosectioning.;

Remote care compatible system with real time monitoring of Service relevant data.;

Control and Processing Unit

Control Unit including

• 12.1” inch capacitive touchpanel with interactive and configurable screen and optional camera integration (Flexacam i5)
• Ergonomic design including intuitive push button control of key paramenters for sectioning
• Swipe function for task specific display configuration
• Infrared mouse
• 3 x USB 3.0 connections

Processing Unit including:

• Windows PC
• Operating system: Windows 10
• Power supplies for Base Unit and Control Unit
• 2 x LAN connections for Remote Access/Remote Care

Software:

• Configurable/task specific/interactive user interface with swipe function
• Speed and Feed indicator with 5 memory lane positions
• Advance and Advance Reset control
• Total advance end position indicator with acoustic warning 20 µm before the end of the total advance
• Indicator of Knife Stage and Specimen Arm N - S position
• Step button control of stage N - S
• Up Counter for Feed Advance in nm and number of sections
• Customizable Specimen arm/knife block feed
• Supports sectioning with foot switch (prerequ. 16654925)
• Supports sectioning with antistatic device (prerequ.Crion 16705857)
• Remote Access: via Windows Remote Desktop

Accessories Case including:

• Reflexomat III -peristaltic water pump; water spout in magnetic holder, syringe, special tubing for Reflexomat III
• LED for transillumination
• Knurled allen key (16708011147)
• Universal Specimen holder (16701761)
• Flat speciment holder (16701772)
• Forceps with straight tip (16840105)
• Breath guard

Dust Cover:

Note 1: A M80 Stereo microscope complete (16705856) is required for standard use.;

Note 2: System is fully upgradable to standard and advanced systems. Please contact your sales representative for further information.
