| Article Number | 11506536 |
|---|---|
| Correction Ring (CORR) | CORR |
| Coverglass | With & without |
| Exit Pupil Position/DIC prism | D |
| Field Number (FN) | 20 |
| Free Working Distance (WD in mm) | 2.50 |
| Immersion | IMM incl BABB |
| Iris Diaphragm | Without |
| Magnification | 16⨉ |
| Contrasting Methodes | TL-BF, FLUO |
| Numerical Aperture | 0.6 |
| Objective Thread | M25 |
| Objective Type | PL FLUOTAR |
| Spring Loaded | No |
| Suitable for AFC (Adaptive Focus Control) | - |
| Techniques | LightSheet, MP |
| Transmission | UV (365nm) |
Figure

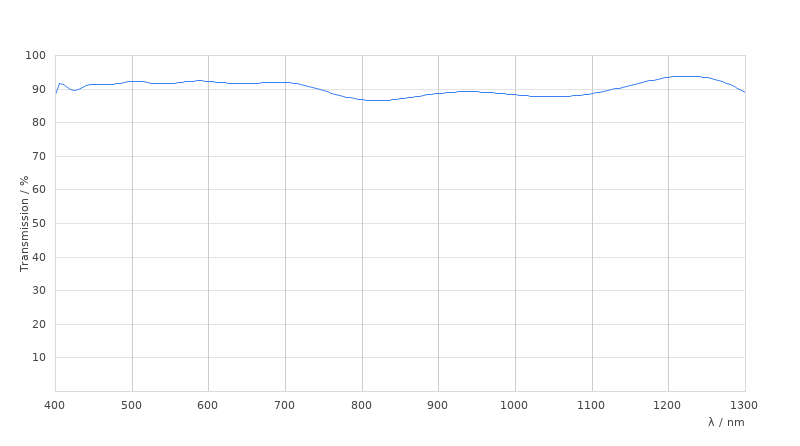

Transmission Curve
Dimension Sheet
