Glycerol Spraying/Platinum Low Angle Rotary Shadowing of DNA with the Leica EM ACE600 e-beam


Glycerol spraying/low angle rotary shadowing [1] is a preparation technique used in biology to visualize structures yielding insufficent contrast with other techniques, due to their small diameter. This method is commonly used for specimens which include proteins with coiled coil domains or DNA.

The specimen preparation consists of three steps: First, small droplets of the specimen suspended in a buffer containing 30 % glycerol and ammonium acetate buffer are sprayed onto the freshly cleaved, clean surface of mica chips. For the second step, the sample is transferred to a high vacuum evaporator: this instrument allows to deposit a thin layer of electron dense material (typically Pt, W, or Au) onto the sample at a low angle. The evaporated material accumulates primarily at the raised sample and thus provides contrast. Subsequently, a backing layer of C is evaporated onto the specimen to provide support. In a third step, the replica formed is detached from the mica and mounted onto EM grids for inspection in the trans-mission electron microscope.

With the Leica EM ACE600 equipped with Pt/C and C electron beam evaporation, the second step can be fully automated: from the moment the sample has been transferred to the recipient of the high vacuum evaporator until the procedure is finished, the instrument takes full control of the vacuum, the position of the specimen relative to the metal/carbon source, and the thickness of the deposited material.

Programming the sequence

Two electron guns are being used in the course of this preparation, both of which need to be degassed in order to avoid a considerable degradation of the vacuum due to heating in the moment the actual evaporation starts. Instead of two subsequent degas/pump/evaporate cycles for Pt/C and C, it is preferred to degas both guns first, then pump for considerable time to reach a good process vacuum required to evaporate both materials. An automated sequence implementing this approach is being described here. The Pt/C gun is mounted at the right port, the C gun at the left side.

Materials

  • A material "Platinum degas" was defined using Pt standard settings, 50 W degassing power, and 120 s degassing.
  • A material "Carbon degas" was defined using C standard settings, 75 W degassing power, and 300 s degassing.
  • Two materials "Platinum no degas" and "Carbon no degas" were defined with the same properties as the original materials, but degassing was deactivated.

Processes

  • A process "Degassing Pt/C" designed to degas the Pt/C gun only was programmed using the material "Platinum degas". The process was set to start at 1.0 × 10–4 mbar, with an evaporation power of low 30 W, and a target thickness of 0.0 nm to terminate immediately after opening the shutter. Setting the stage position was hence obsolete.
  • A process "Degassing C" designed to degas the C gun only was programmed using the material "Carbon degas". The process was set to start at 1.0 × 10–4 mbar, with an evaporation power of low 30 W, and a target thickness of 0.0 nm to terminate immediately after opening the shutter. Setting the stage position was hence obsolete.
  • A process "Shadowing Pt/C" was programmed using the following settings: Material "Platinum no degas", 100 W target power, 2.0 nm target thickness, vacuum < 2.5 × 10–5 mbar, stage at –54° tilt (corresponding to 5° relative to the gun), maximum working distance, and rotation 5 (maximum).
  • A process "Backing C" was programmed using the following settings: Material "Carbon no degas", 120 W targat power, 6.0 nm target thickness, vacuum < 2.5 × 10–5 mbar, stage at 20° tilt (relative to horizontal), maximum working distance, and rotation 5 (maximum).

Sequence

  • A sequence consisting of "Degassing Pt/C", "Degassing C", "Shadowing Pt/C",  and "Backing C" was prepared.

Preparation

Prior to the experiment, both the Pt/C and the C gun were cleaned thoroughly, the targets and the filaments were set up according to the manual. The Pt/C gun was mounted at the right port of the vacuum chamber, the C gun at the left side. The instrument was set up with the LARS (low angle rotary shadowing) stage and the quartz crystal at the lateral position.

130 µg/ml dsDNA with a length of 1,010 basepairs (corresponding to 343 nm) were diluted 1:20 in spraying buffer (100 mmol/l ammonium acetate, 30 % glycerol, pH 7.6). Small droplets were sprayed with a spraying device as described in [1] onto the freshly cleaved surface of mica chips approximately 2 × 2 mm in size and mounted with double-sided sticky tape on a 50 mm round filter paper.

After spraying, the samples on the filter paper were transferred immediately to the readily prepared Leica EM ACE600 and evacuated. The sequence as outlined above was executed, the chamber was automatically vented upon completion.

The replicas on the filter paper were removed from the vacuum chamber and transferred to a humid cham-ber, made from plastic dishes, Parafilm (to keep samples from getting wet), and wet filter paper. To facilitate detachment of the replicas, they were incubated in an oven at 45 °C for 30 minutes.

Subsequently, the replicas were floated off on the surface of distilled water in a white dish, picked up with an un-filmed 400 mesh Cu grid, transferred to another dish with ddH2O for removal of all residual organic material (glycerol) and picked up with another grid. Excess water was blotted from the side and from the tips of the forceps with filter paper, samples were air dried.

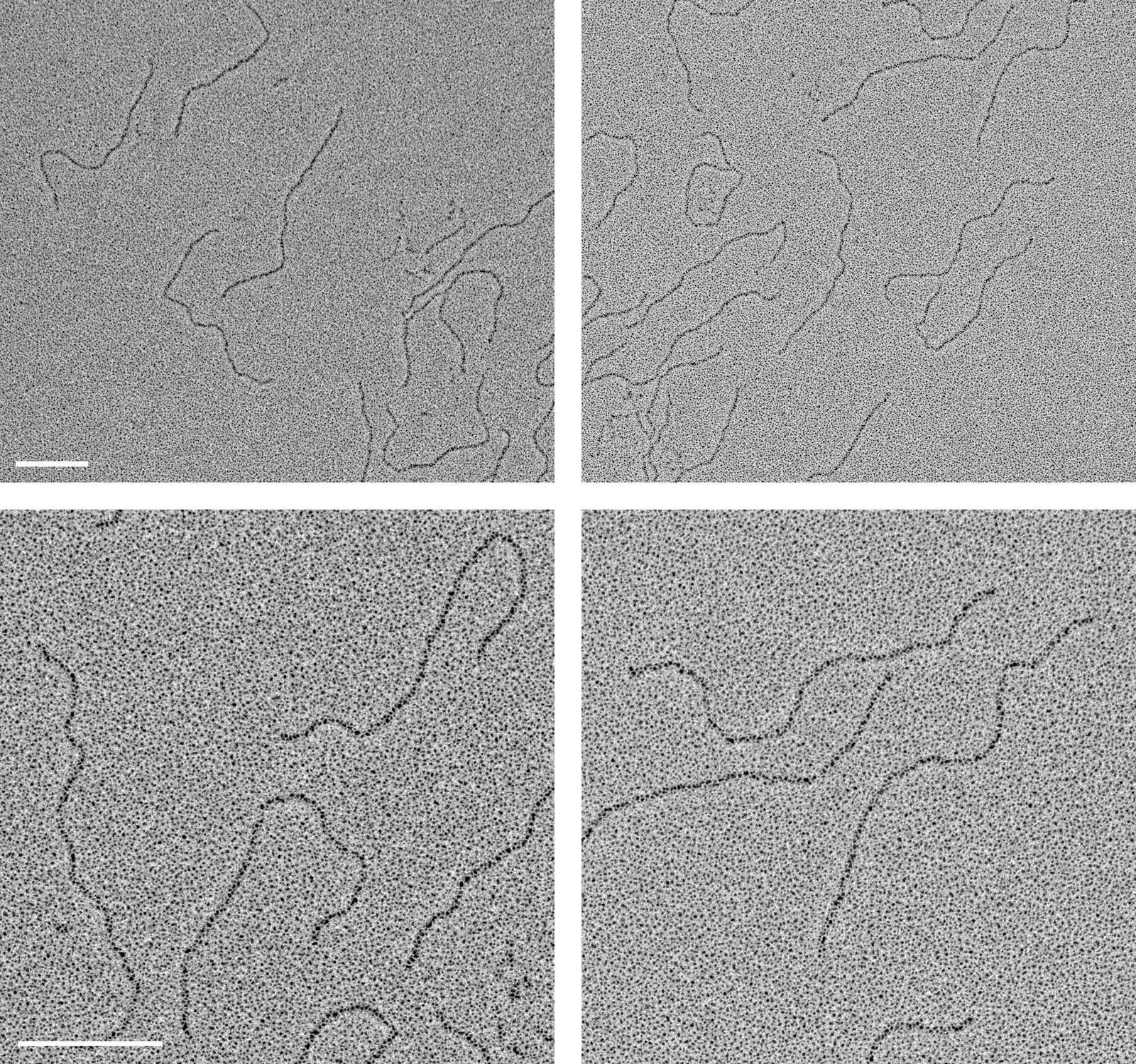

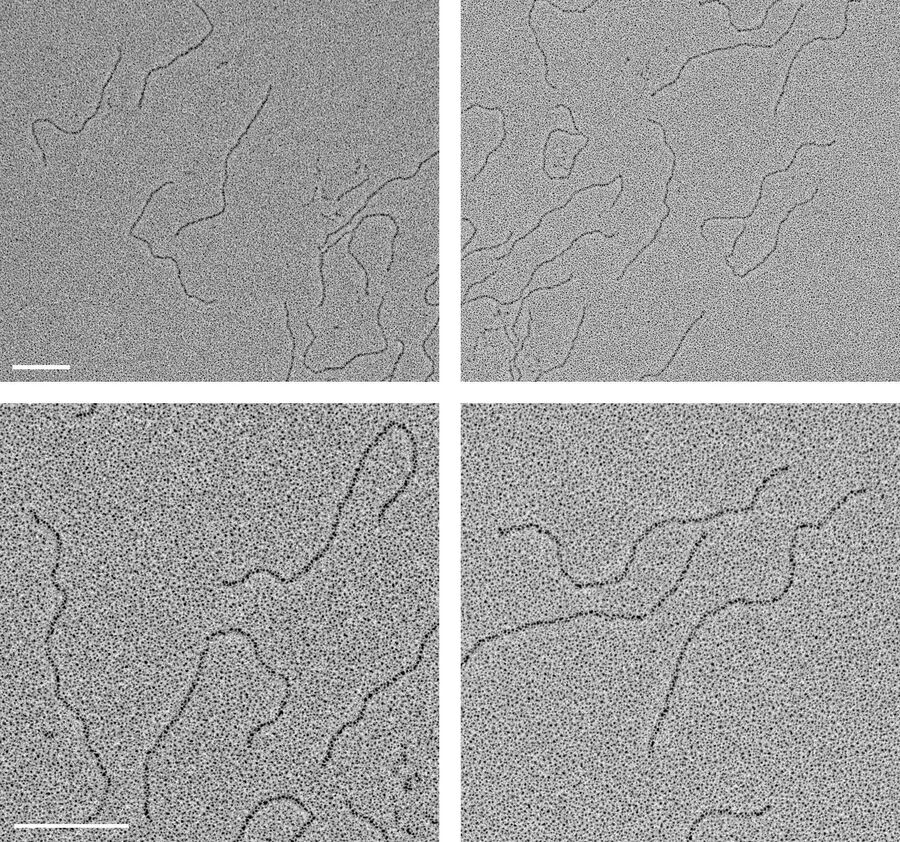

The air dried replicas were observed in a transmission electron microscope at 80 kV, regions of interest could be located via crystals of residual salt forming at the center of the dried droplets as described in [1]. Images were recorded with a CCD camera at a pixel size of 0.373 nm/pixel.

Acknowledgements

The author thanks Karel Riha's group at the Gregor Mendel Institute, Vienna, for providing the sample and the team at the Electron Microscopy Facility of the Campus Science Support Facilities GmbH (www.csf.ac.at/em), Vienna, for their assistance.

Reference

  1. Aebi U., and Baschong W: Glycerol Spraying/Low-Angle Rotary Metal Shadowing, in: Celis JE (ed.): Cell Biology – A Laboratory Handbook, third edition, 3: 241–46 (2006).
