| Article Number | 11506263 |
|---|---|
| Correction Ring (CORR) | - |
| Coverglass | With & without |
| Exit Pupil Position/DIC prism | - |
| Field Number (FN) | 20 |
| Free Working Distance (WD in mm) | 7.8 |
| Immersion | Dry |
| Iris Diaphragm | Without |
| Magnification | 10⨉ |
| Contrasting Methodes | TL-BF, TL-DF, FLUO |
| Numerical Aperture | 0.22 |
| Objective Thread | M25 |
| Objective Type | HI PLAN |
| Spring Loaded | No |
| Suitable for AFC (Adaptive Focus Control) | - |
| Techniques | |
| Transmission | - |

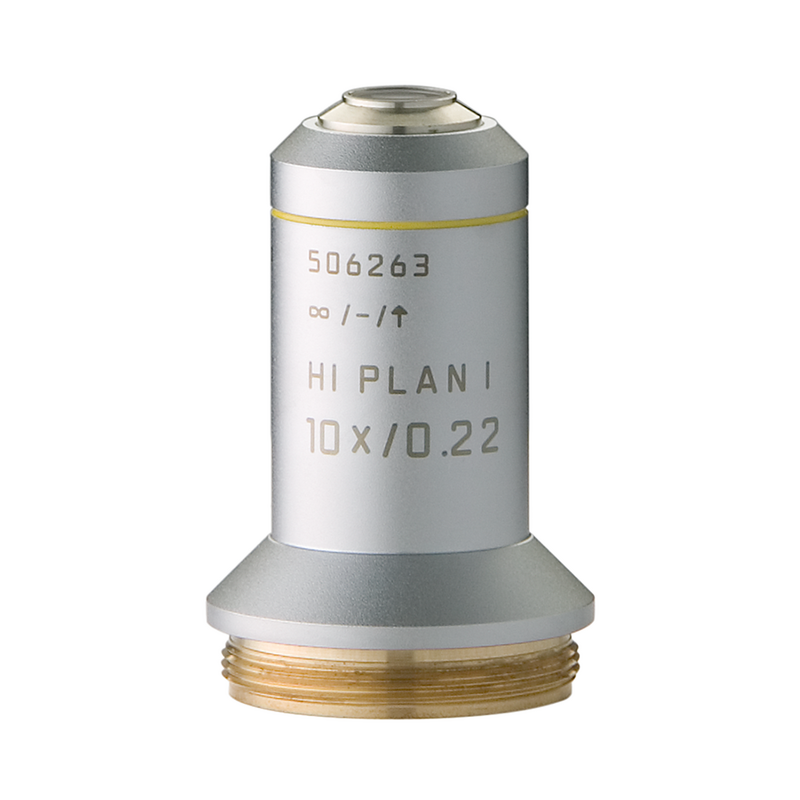

Figure

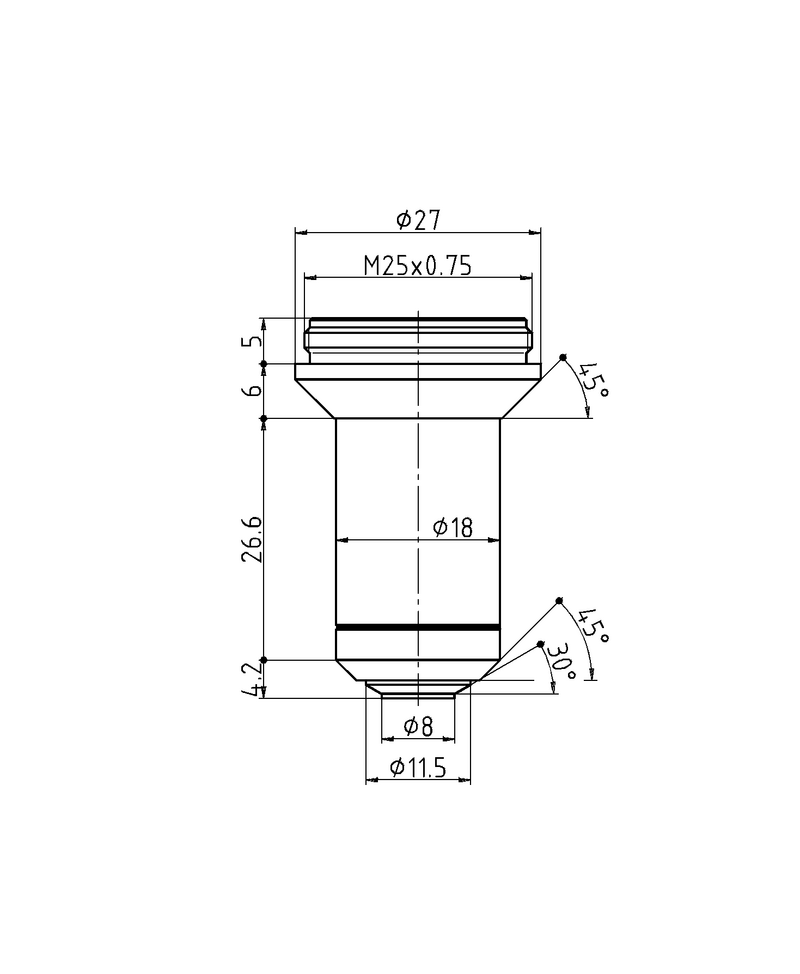

Dimension Sheet
