| Article Number | 11506304 |
|---|---|
| Correction Ring (CORR) | - |
| Coverglass | With & without |
| Exit Pupil Position/DIC prism | - |
| Field Number (FN) | 25 |
| Free Working Distance (WD in mm) | 11.2 |
| Immersion | Dry |
| Iris Diaphragm | Without |
| Magnification | 2.5⨉ |
| Contrasting Methodes | TL-BF, TL-P, FLUO |
| Numerical Aperture | 0.07 |
| Objective Thread | M25 |
| Objective Type | FL PLAN |
| Spring Loaded | No |
| Suitable for AFC (Adaptive Focus Control) | - |
| Techniques | |
| Transmission | UV (365nm) |
Figure

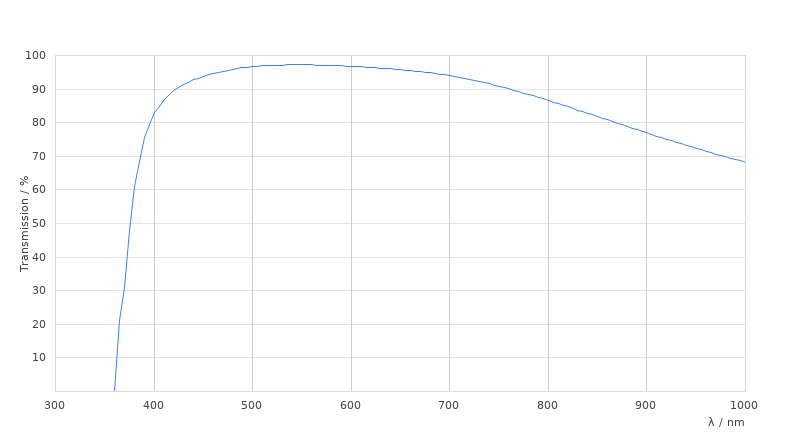

Transmission Curve

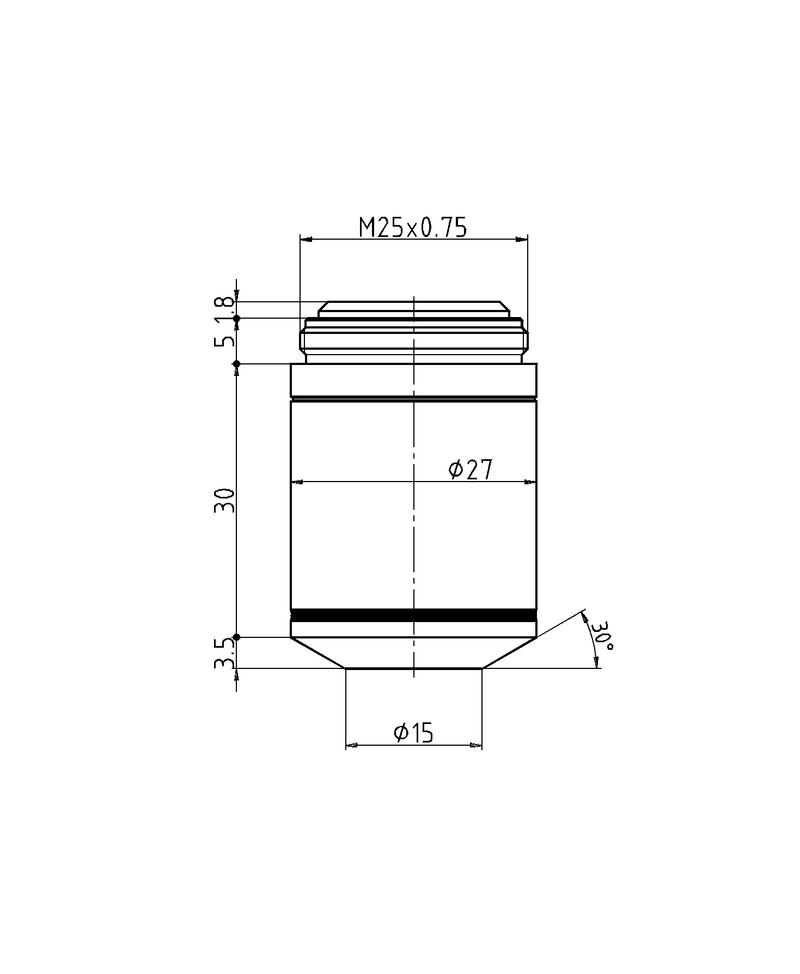

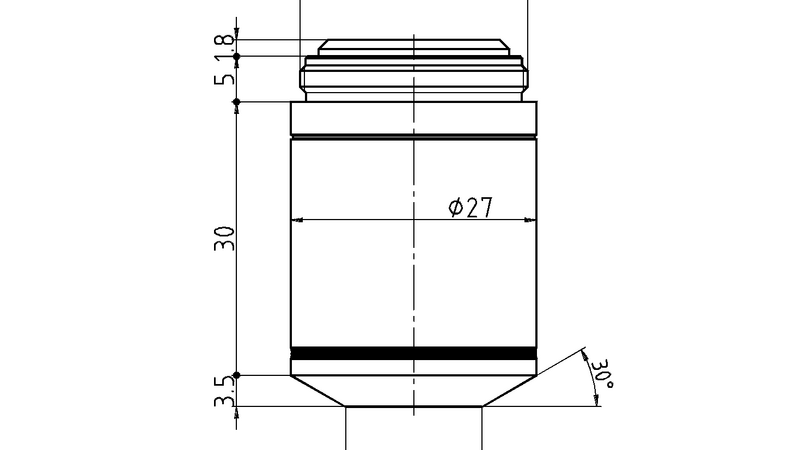

Dimension Sheet
