| Article Number | 11506381 |
|---|---|
| Correction Ring (CORR) | - |
| Coverglass | With |
| Exit Pupil Position/DIC prism | D |
| Field Number (FN) | 25 |
| Free Working Distance (WD in mm) | 0.09 |
| Immersion | Oil |
| Iris Diaphragm | Without |
| Magnification | 100⨉ |
| Contrasting Methodes | TL-BF, TL-DIC, TL-PH, FLUO |
| Numerical Aperture | 1.4 |
| Objective Thread | M25 |
| Objective Type | PLAN APO |
| Spring Loaded | Yes |
| Suitable for AFC (Adaptive Focus Control) | AFC suitable |
| Techniques | PH3 |
| Transmission | UV (340nm) |

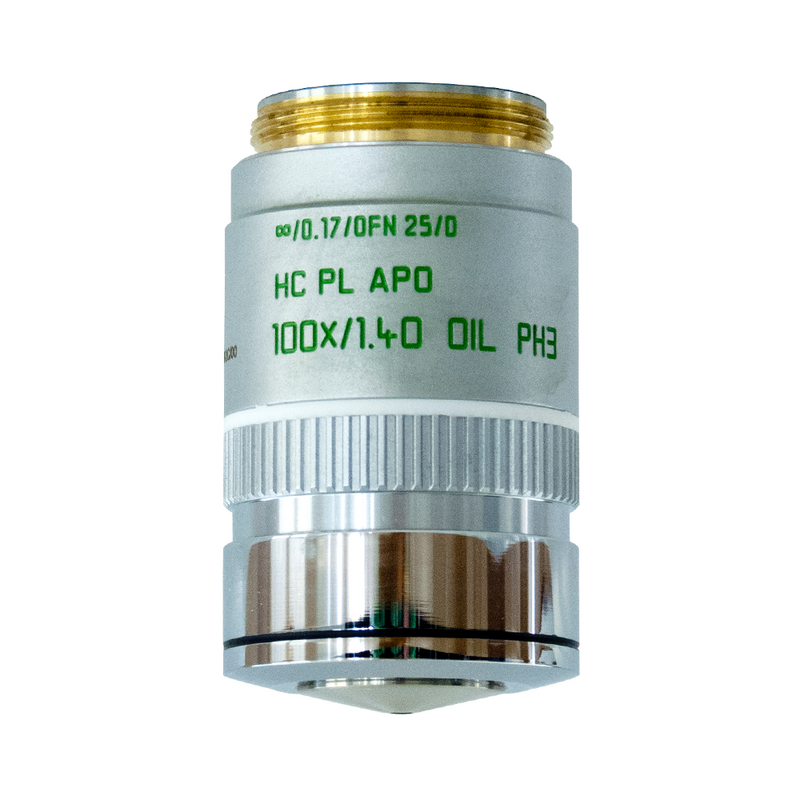

Figure

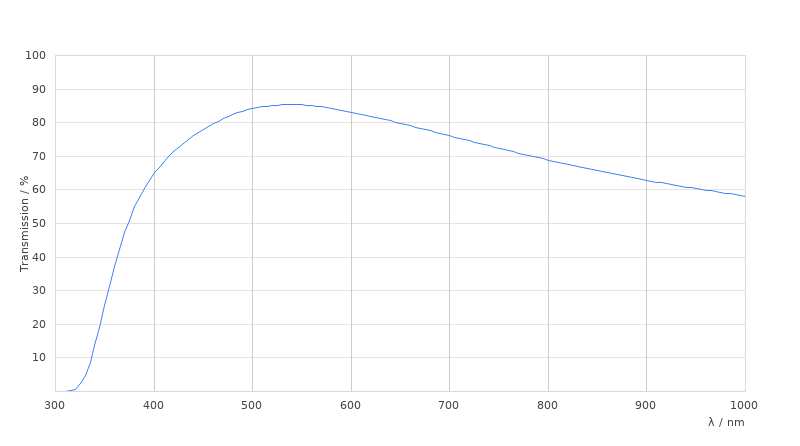

Transmission Curve
Dimension Sheet
