| Article Number | 11506410 |
|---|---|
| Correction Ring (CORR) | - |
| Coverglass | With |
| Exit Pupil Position/DIC prism | A |
| Field Number (FN) | 25 |
| Free Working Distance (WD in mm) | 2.8 |
| Immersion | Dry |
| Iris Diaphragm | Without |
| Magnification | 10⨉ |
| Contrasting Methodes | TL-BF, TL-DIC, TL-DF, TL-IMC, FLUO |
| Numerical Aperture | 0.45 |
| Objective Thread | M25 |
| Objective Type | PLAN APO |
| Spring Loaded | No |
| Suitable for AFC (Adaptive Focus Control) | AFC suitable |
| Techniques | |
| Transmission | UV (340nm) |
Figure

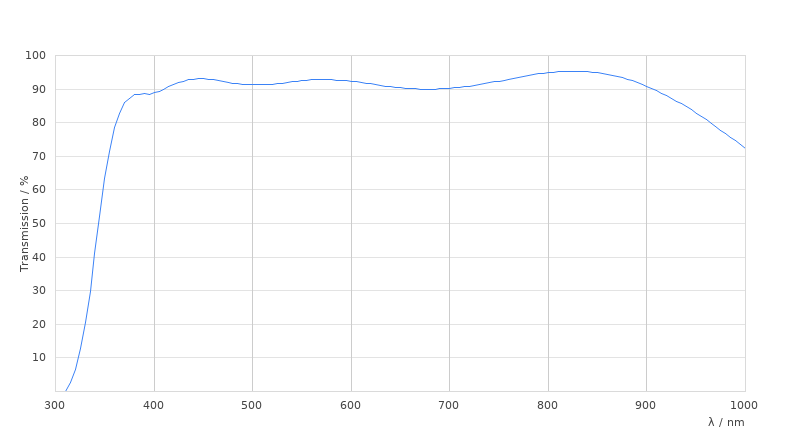

Transmission Curve
Dimension Sheet
