| Article Number | 11506421 |
|---|---|
| Correction Ring (CORR) | - |
| Coverglass | With & without |
| Exit Pupil Position/DIC prism | D |
| Field Number (FN) | 22 |
| Free Working Distance (WD in mm) | 3.5 |
| Immersion | Water |
| Iris Diaphragm | Without |
| Magnification | 20⨉ |
| Contrasting Methodes | TL-BF, FLUO |
| Numerical Aperture | 0.5 |
| Objective Thread | M25 |
| Objective Type | APO |
| Spring Loaded | No |
| Suitable for AFC (Adaptive Focus Control) | - |
| Techniques | LightSheet, MP |

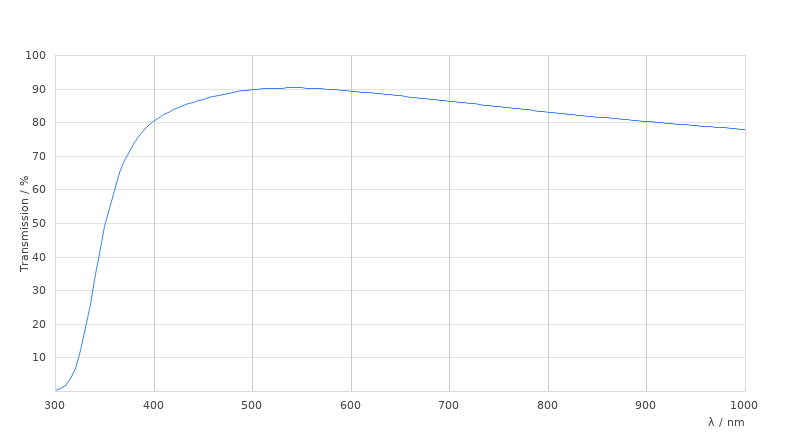

| Transmission | UV (340nm) |
Figure
Dimension Sheet
