UVI 5x/0.12 MICRODISSECTION

Article Number 11518151
Correction Ring (CORR) -
Coverglass With & without
Exit Pupil Position/DIC prism -
Field Number (FN) 22
Free Working Distance (WD in mm) 13.5
Immersion Dry
Iris Diaphragm Without
Magnification 5⨉
Contrasting Methodes TL-BF, TL-DF, FLUO
Numerical Aperture 0.12
Objective Thread M25
Objective Type HI PLAN
Spring Loaded No
Suitable for AFC (Adaptive Focus Control) -
Techniques Ablation, LMD

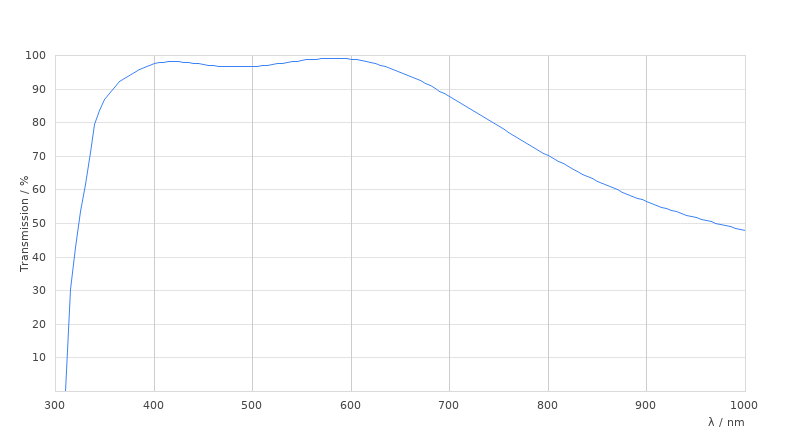

Transmission UV (340nm)

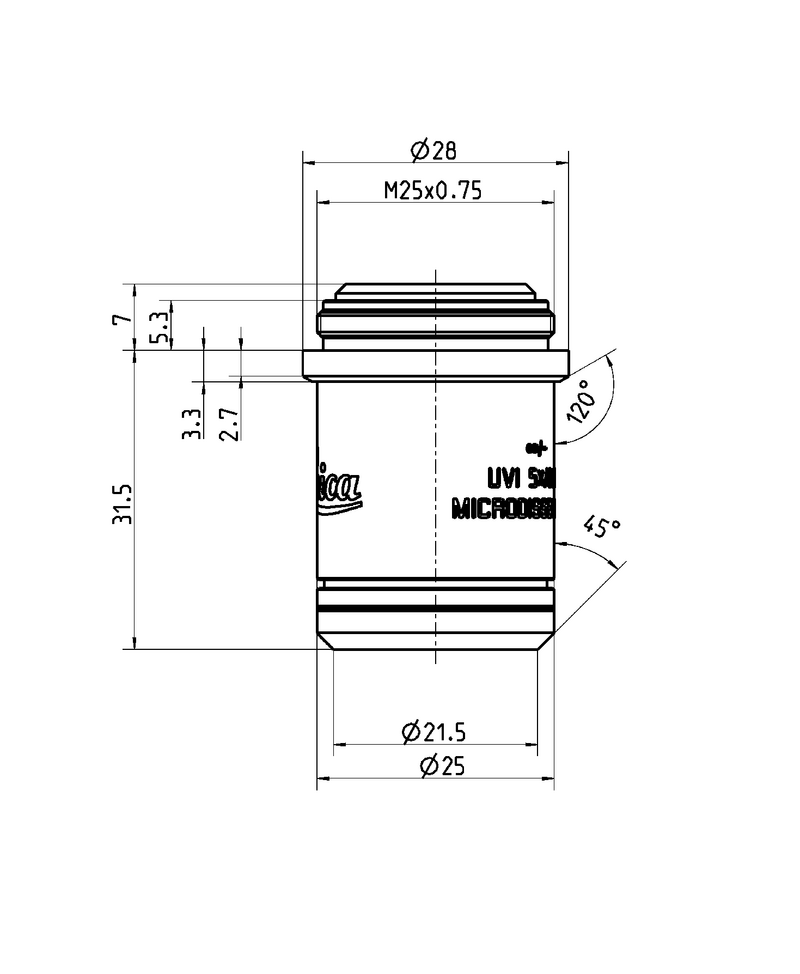

Figure

UVI 5x/0.12 MICRODISSECTION
