| Article Number | 11556075 |
|---|---|
| Correction Ring (CORR) | - |
| Coverglass | With & without |
| Exit Pupil Position/DIC prism | B |
| Field Number (FN) | 22 |
| Free Working Distance (WD in mm) | 14.0 |
| Immersion | Dry |
| Iris Diaphragm | Without |
| Magnification | 5⨉ |
| Contrasting Methodes | TL-BF, TL-DIC, TL-P, TL-POL, TL-DF, TL-IMC, IL-BF, IL-DIC, IL-P, IL-POL, FLUO |
| Numerical Aperture | 0.12 |
| Objective Thread | M25 |
| Objective Type | N PLAN |
| Spring Loaded | No |
| Suitable for AFC (Adaptive Focus Control) | - |
| Techniques | IL, POL |
| Transmission | - |
Figure

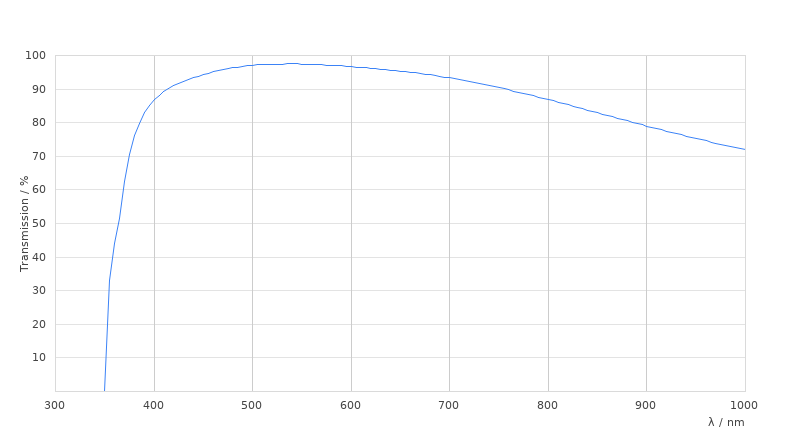

Transmission Curve
Dimension Sheet
