| Article Number | 11556079 |
|---|---|
| Correction Ring (CORR) | - |
| Coverglass | Without |
| Exit Pupil Position/DIC prism | C |
| Field Number (FN) | 25 |
| Free Working Distance (WD in mm) | 1.0 |
| Immersion | Dry |
| Iris Diaphragm | Without |
| Magnification | 100⨉ |
| Contrasting Methodes | TL-BF, TL-P, TL-POL, IL-BF, IL-DIC, IL-P, IL-POL, FLUO |
| Numerical Aperture | 0.9 |
| Objective Thread | M25 |

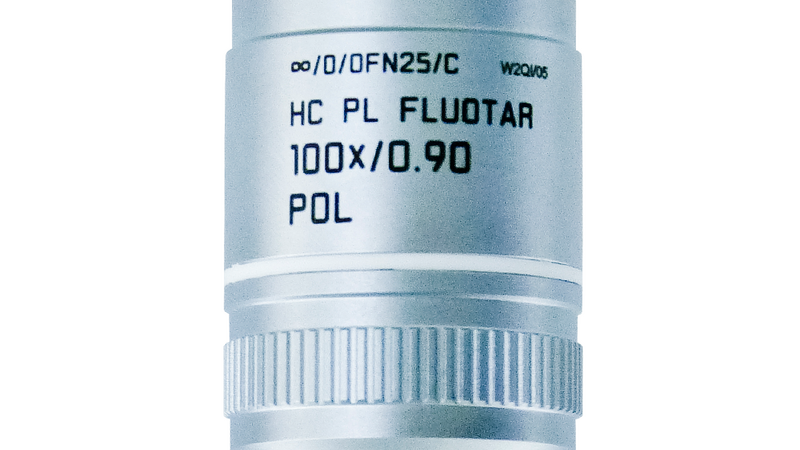

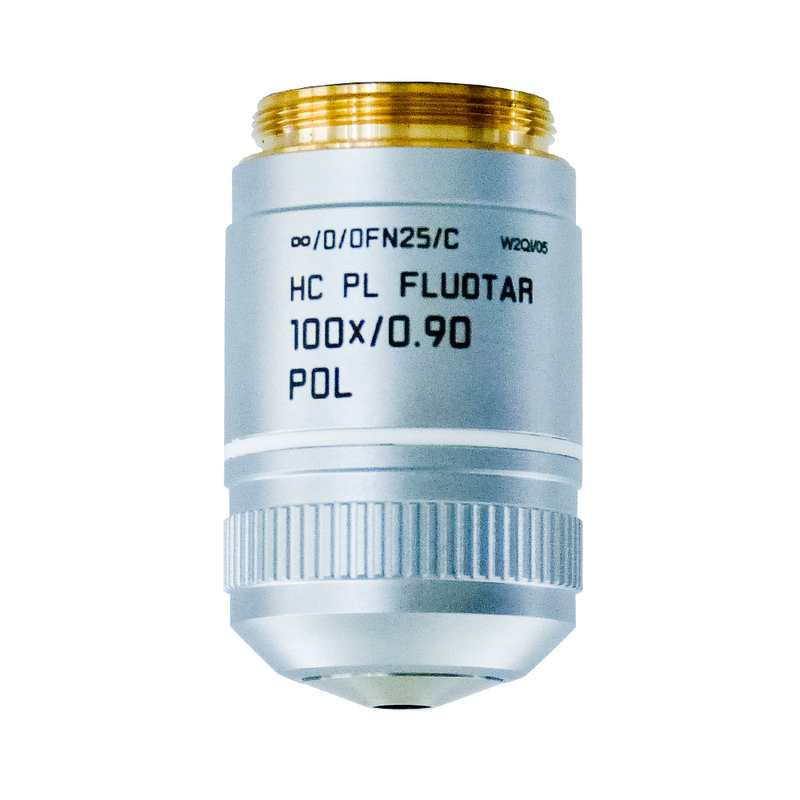

| Objective Type | PL FLUOTAR |
| Spring Loaded | No |
| Suitable for AFC (Adaptive Focus Control) | - |
| Techniques | IL, POL |
| Transmission | - |

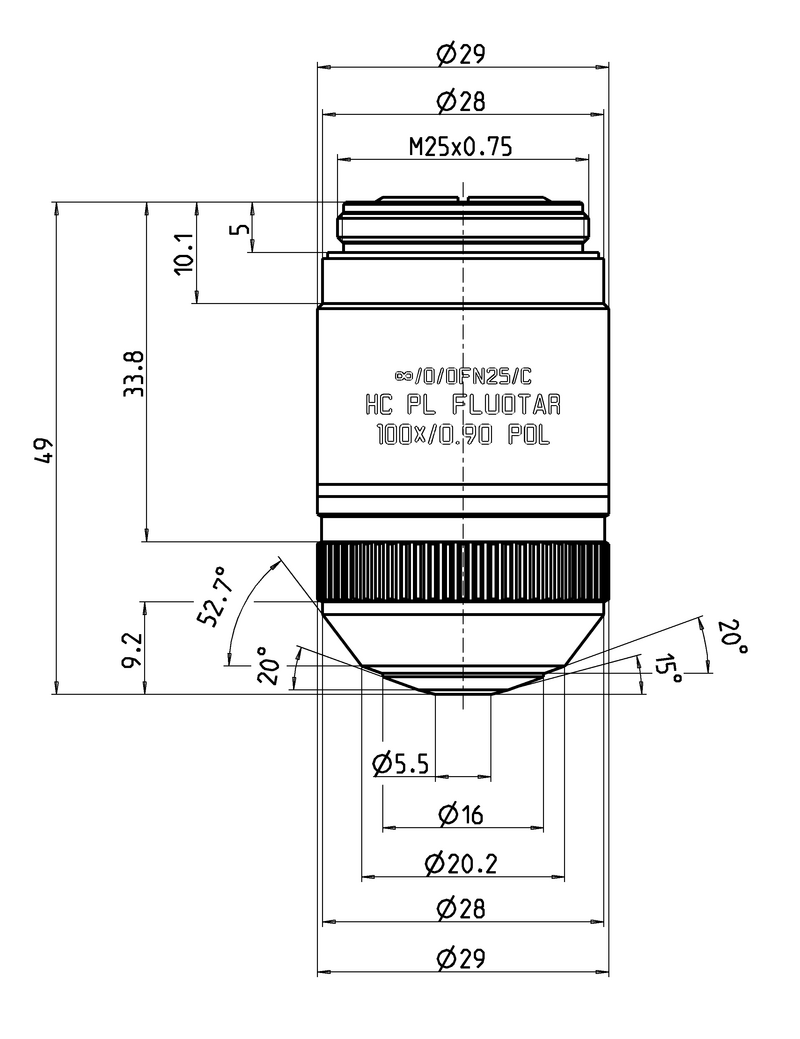

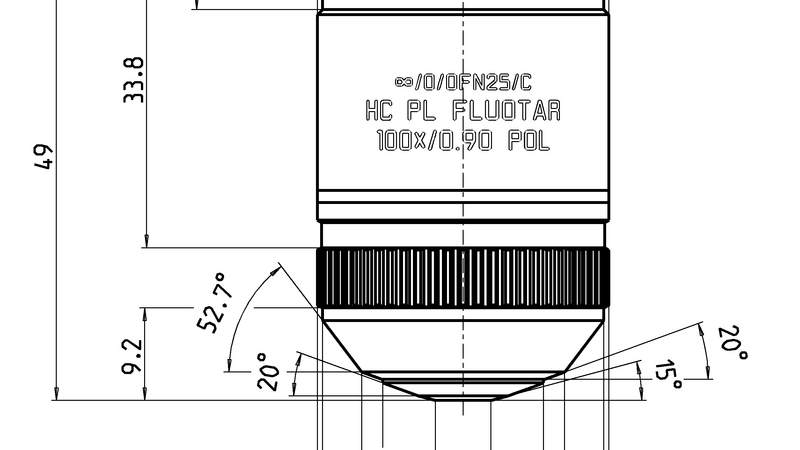

Figure

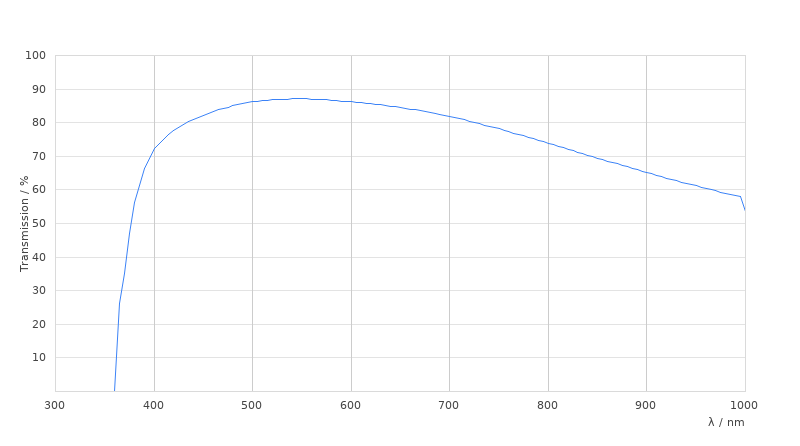

Transmission Curve
