| Article Number | 11566051 |
|---|---|
| Correction Ring (CORR) | - |
| Coverglass | Without |
| Exit Pupil Position/DIC prism | C |
| Field Number (FN) | 22 |
| Free Working Distance (WD in mm) | 10.8 |
| Immersion | Dry |
| Iris Diaphragm | Without |
| Magnification | 20⨉ |
| Contrasting Methodes | TL-BF, TL-DIC, TL-P, TL-DF, TL-IMC, IL-BF, IL-DIC, IL-P, IL-DF, FLUO |
| Numerical Aperture | 0.4 |
| Objective Thread | M32 |
| Objective Type | N PLAN |
| Spring Loaded | No |
| Suitable for AFC (Adaptive Focus Control) | - |
| Techniques | BD, IL |
| Transmission | UV (365nm) |
Figure
Transmission Curve

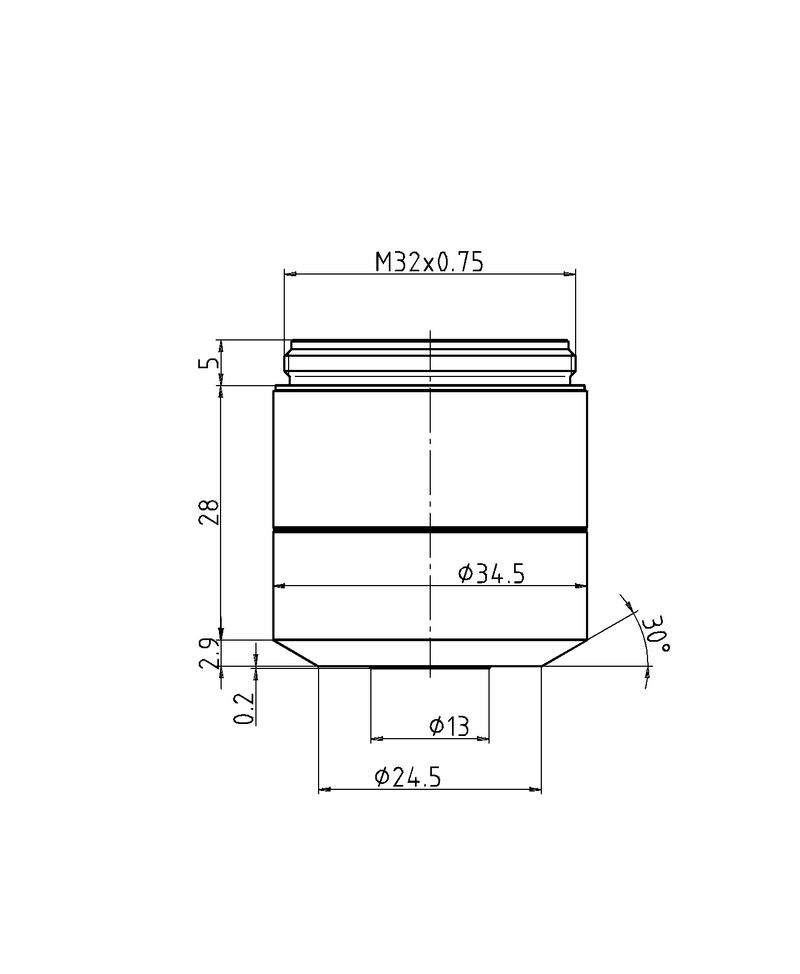

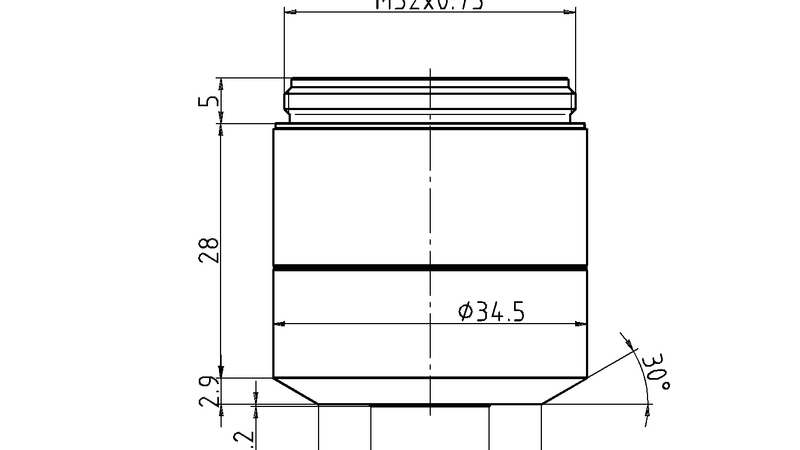

Dimension Sheet
