Leica EZ4 W & EZ4 E Estereomicroscópio para o ensino médio e universitário
Estes microscópios estéreos fornecem uma solução de educação sem fio para a sala de aula de ciências. As câmeras de 5 megapixel integradas podem gerar imagens HD transmitidas ao vivo para smartphones ou tablets dos alunos. Os alunos podem se conectar ao EZ4 W através de seu próprio sinal Wi-Fi interno ou através da rede do prédio. O EZ4 E usa exclusivamente a rede do prédio (Wi-Fi ou rede) para permitir que os alunos se conectem ao microscópio. Esta é a solução ideal se não desejar agregar pontos de acesso de Wi-Fi adicionais ao seu conceito de rede sem fio existente.
The quality of a system lies in the detail
- FOCUSING DRIVE
Can be adjusted in its ease of movement for comfortable focusing by students and teachers illuminator. - LED INCIDENT LIGHT
Can be switched independently or combined, and can be controlled via the membrane switch on the Leica EZ4 models. - VIBRATION-RESISTANT FEET
Prevent annoying shake while adjusting the instrument and stop it from sliding. The special transparent rubber material does not mark tabletops. - APARELHOS QUE DURAM POR MUITO TEMPO

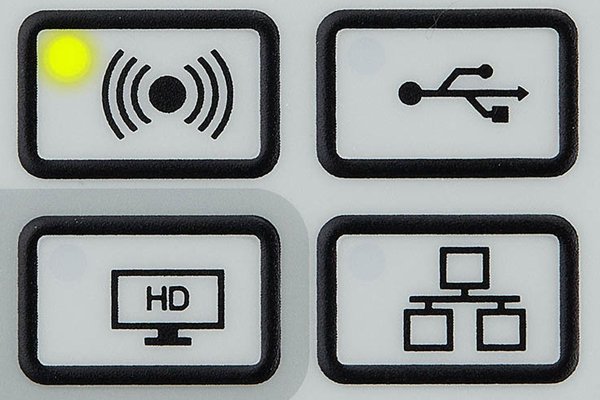

O painel de controle robusto CapSense assegura operação confiável e intuitiva por anos. Protege o sistema de resíduos e é altamente durável. - EASY VIEWING

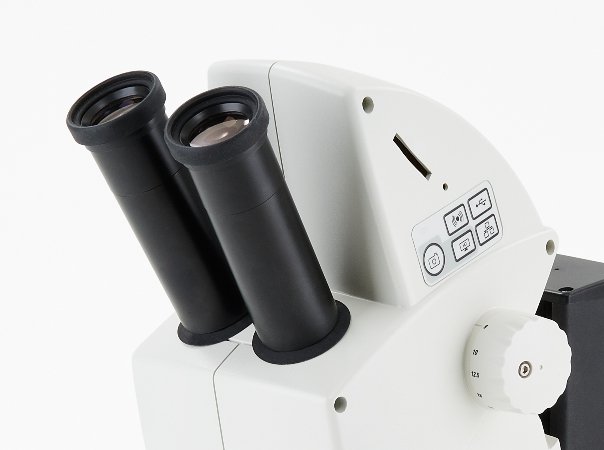

The 60° viewing angle is equally ergonomic for students and teachers with different physical builds. The eyepiece tubes adjust simultaneously from 50 to 75 mm to provide the correct personal interpupillary distance for all users. - ZOOM COM 4.4:1
A ampliação do zoom de 8x a 35x fornece imagens de alta resolução com detalhes finos. - OPTICS CARRIER / THE 10° GREENOUGH OPTICAL SYSTEM
Sistemas óticos Greenough – fornecem visualizações 3D muito planas e com elevada profundidade de campo
Tornando a aula interativa e inspiradora
O software AirTeach da Leica Microsystems oferece aos professores a ferramenta para compartilhar conhecimento de modo eficiente e fazer com que todos estejam em sintonia, o tempo todo.
O airteach permite que os professores:
- Vejam as imagens dos microscópios dos alunos em miniatura e na disposição da sala de aula.
- Compartilhem até quatro imagens em um display ou projeção de tela cheia para permitir comparação das descobertas dos alunos.
- Confirmem se os câmeras estão conectados para assegurar a participação.
Acesso à câmera por vários alunos simultaneamente
Conecte diversos smartphones ou tablets a um Leica EZ4 W e acesse rapidamente imagens de alta resolução ou vídeos diretamente em seu dispositivo pelo stream da câmera Wi-Fi. Sem necessidade de esperar. Com o Leica EZ4 E, os alunos podem se conectar ao microscópio através da rede do prédio, a qual conecta os dispositivos dos usuários como computadores ou tablets ao microscópio através da Ethernet (Wi-Fi & rede).
Leica AirLab App para aprendizado fácil e compartilhamento
Para dispositivos móveis, faça o download do aplicativo Leica AirLab! O aplicativo é gratuito e disponível para ambos IOS e Android. Com controles em uma tela touch intuitiva, os alunos podem capturar, anotar, arquivar e compartilhar imagens rápida e facilmente. A câmera também pode ser acessada com qualquer computador Windows PC ou MAC com Wi-Fi habilitado. Para telas HD autônomas ou projeções em telas grandes, é possível usar a conexão HDMI.
A quantidade de conexões de dispositivos móveis e sua estabilidade dependem do tráfego de Wi-Fi e do desempenho da rede no ambiente.
Teaching and learning made easy
School must be fun if young people are to learn. The Leica stereo microscopes offer a broad, varied field for experience and learning and are easy to integrate into classroom instruction.
What will the students learn?
- Leica stereo microscopes sharpen students’ observation skills.
- They will be able to examine, compare, describe and identify the structures, functions and development of plants and other organisms.
- They will gain insight into evolution and ethology and will recognize nature’s variety and systematic structure.
- They will be able to relate practical experiences in the field and with the stereomicroscope to knowledge gained in classroom instruction.
- They will experience their biological space, recognize the dependencies and relationships between organisms and their surroundings, and will develop an awareness of their environment.
- They will understand the ecological relationships of selected topics and the problems of various ecosystems.
Power for bright minds: Altere visualizações - iluminação LED em 7 modos
The light-emitting diode, or LED, is currently revolutionizing the world of illumination. As small as they may be, LEDs are true power packs in every respect: they last longer than incandescent lamps, use less energy, stay cool and require no maintenance. The powerful LEDs in our educational stereo microscopes generate intense, homogeneous, color-neutral incident and transmitted light.
Why not begin education with the observation of actual things, rather than their description with words? Once something has been shown, a lecture may follow to explain further.
Dependable and rugged for industry and routine research
Manufacturers depend on affordable and reliable quality control to insure production profitability. Visual quality control is an important part of a consistent quality management process.
The Leica E Series is designed to help you eliminate expensive quality defects, waste, and insufficient productivity. For R&D, the dependable, maintenance-free Leica E Series ensures efficient laboratory operations while minimizing downtime. Providing a bright object field that is rich in detail and a great working distance that allows a variety of microscope tools, the Leica E Series is ideal for sample identification and sorting.
Leica EZ4 W and Leica EZ4 E – Digital documentation made easy
Advantages of the EZ4 W and EZ4 E:
- In Ethernet mode, the connection to the camera is provided through your own network, allowing a maximum number of users to connect to the camera. To use this to full extent, all devices have to be on to same network as the microscope.
- In USB mode you can connect your PC directly via USB cable to the camera, which is helpful when you aim for fastest live images e.g. of moving samples.
- Computer users can use the Leica Imaging software to connect to the camera and work with the images. For PC use Leica Application Suite software, and use Leica Acquire for Mac.
- Use lots of options with Leica AirLab App: It enables camera setup, annotations, measuring, image capture, and sharing to email, photo folders, or other social media connections. Leica AirLab App is available free of charge for Android and iOS devices.
- Stay flexible if there is no PC or mobile device around: Just capture images directly onto a memory card.
- Fine-tune camera settings conveniently, capture images onto the SD card, and view the SD card gallery – all possible with the remote.
- Project your images: Use the HDMI port for screen projections or output to HD screens.
- You don’t need any extra cables: The built-in camera is powered and controlled directly from the microscope.
